R6012ANX

MOSFET Nch 600V 12A MOSFET (1 piece)

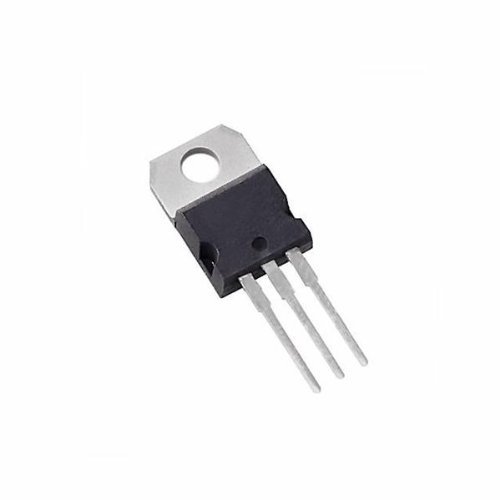

MOSFET Nch 600V 12A MOSFET (1 piece)zoom

Attributes

Key Value
Base Product NumberR6012
BrandROHM
CategoryDiscrete Semiconductor .
Channel ModeChannel Mode
Channel TypeChannel Type, N
Current - Continuous Dr.12A (Ta)
DescriptionMOSFET N-CH 600V 12A TO.
Detailed DescriptionN-Channel 600 V 12A (Ta.
Digi-Key Part NumberR6012ANX-ND
Drain to Source Voltage.600 V
Drive Voltage (Max Rds .10V
FET Feature-
FET TypeN-Channel
Gate Charge (Qg) (Max) .35 nC @ 10 V
Height15.4mm
Input Capacitance (Ciss.1300 pF @ 25 V
Length10.3mm
ManufacturerRohm Semiconductor
Manufacturer Product Nu.R6012ANX
Maximum Continuous Drai.12 A
Maximum Drain Source Re.420 m?
Maximum Drain Source Vo.600 V
Maximum Gate Source Vol.Maximum Gate Source Vol.
Maximum Gate Threshold .4.5V
Maximum Operating Tempe.+150 ?C
Maximum Power Dissipati.50 W
MfrRohm Semiconductor
Mounting TypeThrough Hole
Number of Elements per .1
Operating Temperature150?C (TJ)
PackageBulk
Package / CaseTO-220-3 Full Pack
Package TypeTO-220FM
Pin Count3
Power Dissipation (Max)50W (Tc)
Product StatusNot For New Designs
Rds On (Max) @ Id, Vgs420mOhm @ 6A, 10V
Series-
StockStock
Supplier Device PackageTO-220FM
TechnologyMOSFET (Metal Oxide)
Transistor ConfigurationSingle
Transistor MaterialTransistor Material
Typical Gate Charge @ V.Typical Gate Charge @ V.
Vgs (Max)?30V
Vgs(th) (Max) @ Id4.5V @ 1mA
Width4.8mm

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomDigi-Key23571832.7469650036Rohm Semiconductor2.74696 @ 500
RS Online82675392.8152460ROHM2.815 @ 2
HotendaH18144463.631182ROHM Semiconductor3.63 @ 1
thumbzoomRS Delivers826-75394.2236ROHM4.2 @ 2
