Ruland ENCL25-8MM-A

B016APP22O

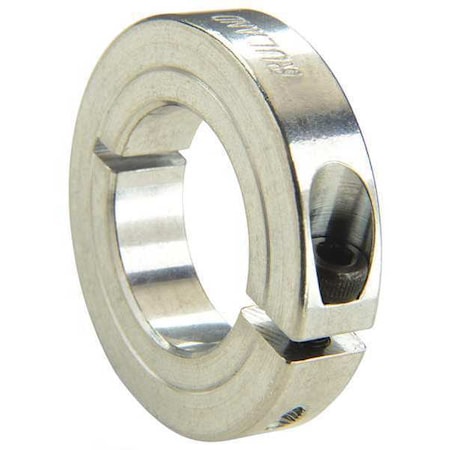

Ruland ENCL25-8MM-A 2024 Aluminum Shaft Collar, Thin Line, One Piece, 6 mm Width, 25 mm OD, 8 mm Bore

Ruland ENCL25-8MM-A 2024 Aluminum Shaft Collar, Thin Line, One Piece, 6 mm Width, 25 mm OD, 8 mm Borezoom

Attributes

Key Value
Bore (B)8 mm
Bore Dia.8 mm
Bore Tolerance+0.050 mm / +0.012 mm
Bore Type - CollarsPlain Bore
CategoryHardware, Fasteners, Ac.
Clearance Dia.27.2 mm
Clearance Diameter (C) .27.25 mm
Collar StyleClamp
Country of OriginUSA
Country of Origin (subj.United States
Description8 MM ALUMINUM SHAFT COL.
Digi-Key Part Number3188-ENCL25-8MM-A-ND
Dimension TypeMetric
Finish SpecificationBright, No Plating
Forged Clamp ScrewM2.5 x 8
Hex Wrench Size2.0 mm
ItemShaft Collar
Item - Shaft CollarsShaft Collar
ManufacturerRuland Manufacturing
Manufacturer Product Nu.ENCL25-8MM-A
Material2024 Aluminum
Material - Collars2024 Aluminum
Material Specification2024-T351 Aluminum Bar
MfrRuland Manufacturing
Note 1Performance ratings are.
Number of Pieces1
Number of Screws1 ea
Operating Temp. Range-40 Degrees to 225 Degr.
Outer Diameter (OD)25 mm
Outside Dia.25 mm
PackageBag
Product StatusActive
Recommended Shaft Toler.+0.000 mm / -0.013 mm
Screw FinishBlack Oxide
Screw Location (R)10.25 mm
Screw MaterialAlloy Steel
Screw SizeM2.5 x 8
Seating Torque1.21 Nm
Series-
Shaft Locking Type - Co.1 Piece Clamp
Specifications0.984" (25.00mm) Outer .
System of MeasurementMetric
Tariff Code8483.60.8000
Temperature-40?F to 225?F (-40?C t.
TypeShaft Collar
UNSPC31162811
UPC634529138021
Weight (lbs)0.015600
Width6 mm
Width (W)6 mm
Width Tolerance+0.076 mm / -0.254 mm

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
us.rs-online.com726212696.961In StockRuland Manufacturing6.96 @ 1
thumbzoomZoroG23951767.392In Stock10Ruland0.027.39 @ 2
thumbzoomRulandENCL25-8MM-A8.131In StockRuland0.01568.13 @ 1
motionindustries.com0626540410.941In StockRuland Manufacturing Co Inc10.94 @ 1
thumbzoomDigi-Key1360315723.11110Ruland Manufacturing23.11 @ 1
