Description:

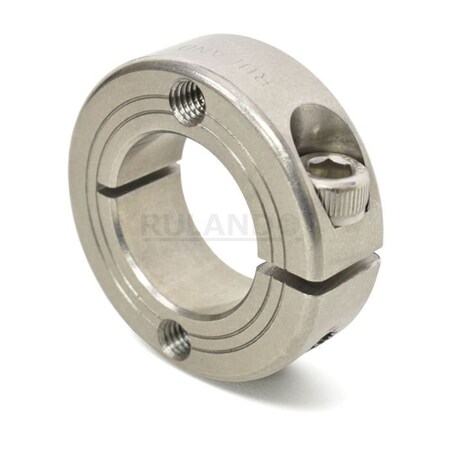

Mountable Shaft Collar, System of Measurement Metric with Inch Bore, Bore Type Round, Bore Diameter 1 1/8 in, Bore Thread Size Not Applicable, Collar Outside Diameter 48 mm, Inside Height to Flat Not Applicable, Clearance Diameter 54.7 mm, Collar Width 15 mm, Collar Material Stainless Steel, Keyway Width Not Applicable, Collar Material Grade 303, Keyway Depth Not Applicable, Collar Construction 1-Piece, Screw Material Stainless Steel, Screw Material Finish Bright
Attributes
| Key ^ | Value |
|---|---|
| Bore Diameter, For Shaft Diameter | 1 1/8 in |
| Bore Thread Size, Inside Height to Flat, Keyway Depth, Keyway Width | Not Applicable |
| Bore Tolerance | +0.0020/+0.0005 in |
| Clearance Diameter | 54.7 mm |
| Collar Construction | 1-Piece |
| Collar Material Grade | 303 |
| Collar Outside Diameter | 48 mm |
| Collar Width | 15 mm |
| Component Mount Type | Face Mount Holes |
| Included Screws | Clamp Screw |
| Item | Mountable Shaft Collar |
| Mount Hole Thread Size, Screw Thread Size | M6 |
| Screw Location from Center | 19 mm |
| Screw Material | Stainless Steel |
| Screw Material Finish | Bright |
| Screw Material Grade | 18-8 300 Series |
| Screw Seating Torque | 9.6 N-m |
| Shaft Locking Type | Clamp On |
| Width Tolerance | +0.076/-0.254 mm |
