Description:

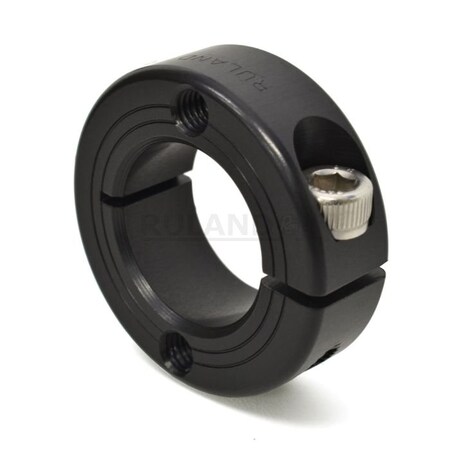

Mountable Shaft Collar, System of Measurement Metric with Inch Bore, Bore Type Round, Bore Diameter 1 7/16 in, Bore Thread Size Not Applicable, Collar Outside Diameter 60 mm, Inside Height to Flat Not Applicable, Clearance Diameter 65.6 mm, Collar Width 15 mm, Collar Material Aluminum, Keyway Width Not Applicable, Collar Material Grade 2024, Keyway Depth Not Applicable, Collar Construction 1-Piece, Screw Material Stainless Steel, Screw Material Finish Bright
Attributes
| Key | Value |
|---|---|
| Bore Diameter | 1 7/16 in |
| Bore Thread Size | Not Applicable |
| Bore Tolerance | +0.0020/+0.0005 in |
| Clearance Diameter | 65.6 mm |
| Collar Material | Aluminum |
| Collar Material Finish | Anodized |
| Collar Outside Diameter | 60 mm |
| Collar Width | 15 mm |
| Component Mount Type | Face Mount Holes |
| For Shaft Diameter | 1 7/16 in |
| Included Screws | Clamp Screw |
| Inside Height to Flat | Not Applicable |
| Item | Mountable Shaft Collar |
| Keyway Depth | Not Applicable |
| Keyway Width | Not Applicable |
| Minimum Operating Temperature | -40 Degrees C |
| Mount Hole Thread Size | M6 |
| Resistance Properties | Corrosion Resistant |
| Screw Material | Stainless Steel |
| Screw Material Finish | Bright |
| Screw Seating Torque | 9.6 N-m |
| Screw Thread Size | M6 |
| Shaft Tolerance | +0.0000/-0.0005 in |
| Width Tolerance | +0.076/-0.254 mm |
