Ruland MOST25-8-A

B00AOCE1W2

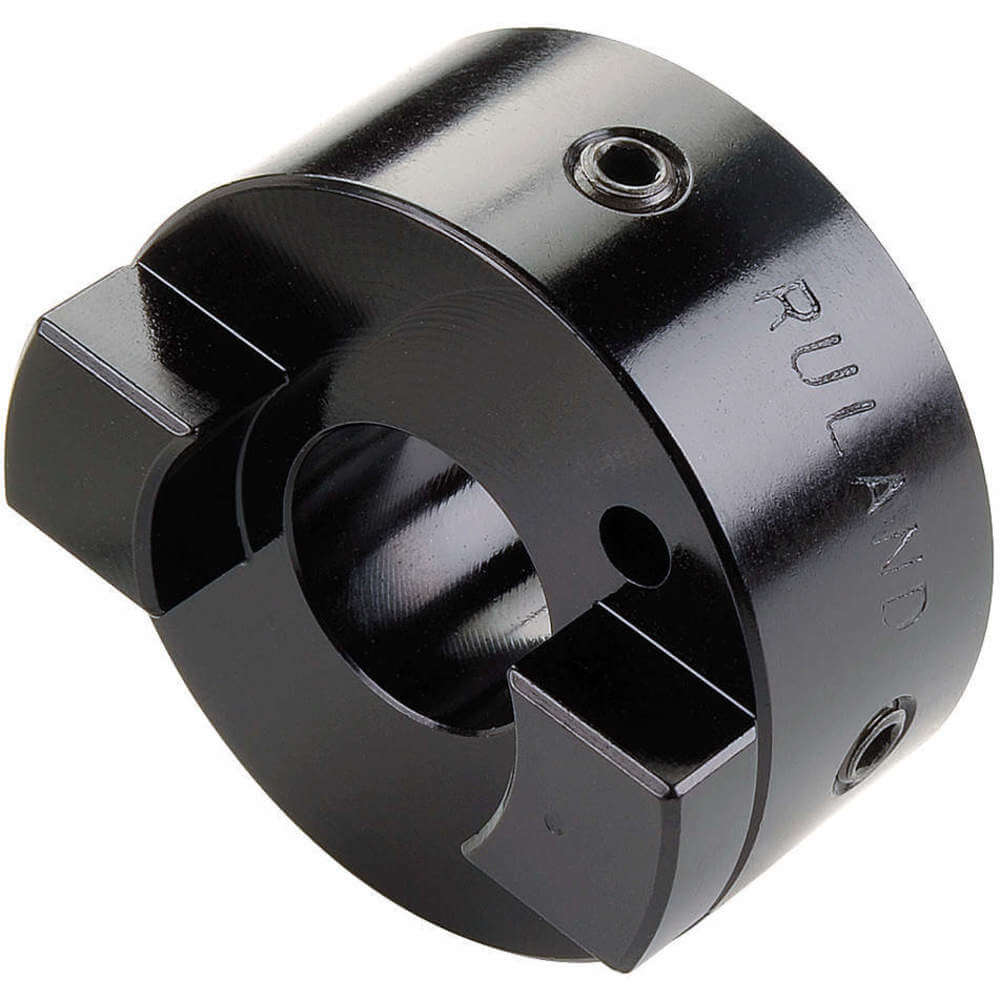

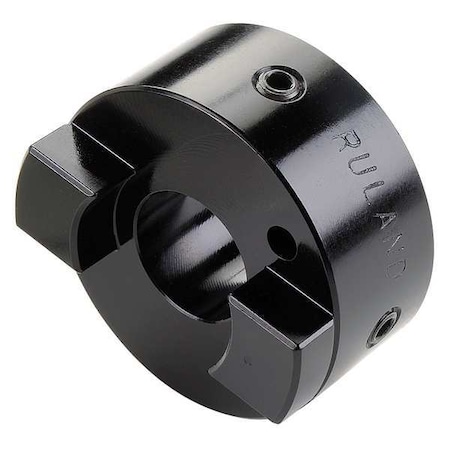

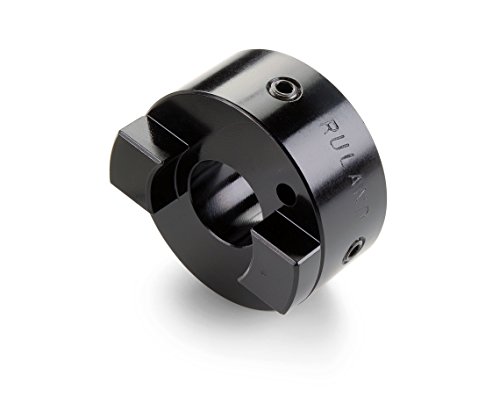

Ruland MOST25-8-A Oldham Coupling Hub, Set Screw Style, Black Anodized Aluminum, 8mm Bore, 25.4mm OD, 28.6mm Length

Ruland MOST25-8-A Oldham Coupling Hub, Set Screw Style, Black Anodized Aluminum, 8mm Bore, 25.4mm OD, 28.6mm Lengthzoom

Attributes

Key Value
Assembled Coupling Leng.28.6 mm
Bore (B1)8 mm
Bore Dia.8 mm
Clearance Dia. (mm)25.4
Country of Origin (subj.United States
FinishAnodized Aluminum
Hub Dia.25.40mm
ItemMotion Control Coupling.
Item - Oldham Coupling .Oldham Coupling Hub
Length (L)28.6 mm
Length through Bore (mm)9.9
MaterialAluminum
Material - HubsAluminum
Max. Angular Misalignme.0.5 Degrees
Max. Axial Misalignment.+/-0.004
Max. Parallel Misalignm.0.008 in
Max. RPM4,500 RPM
Max. Temp. Range (F)225
Outer Diameter (OD)1.000 in (25.4 mm)
Outside Dia.25.4 mm
Outside Dia. (In.)1.00
Outside Dia. (mm)25.40
Overall Length (In.)-
Overall Length (mm)28.6
Screw Size (In.)-
Screw Size (mm)M4
Screw TypeSet Screw
Shaft Locking Type - Co.1 Piece Set Screw
Size-
Small Bore (B2)6 mm
StyleOldham Set Screw
UPC Code63452906227
With Keyway / Without K.Without Keyway

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomZoroG292371513.341In Stock15Ruland0.0313.34 @ 1
us.rs-online.com7217730715.871In StockRuland Manufacturing15.87 @ 1
thumbzoomRulandMOST25-8-A18.261In StockRuland18.26 @ 1
thumbzoomsustainablesupply.comC167184924.151In StockRuland Manufacturing0.0324.15 @ 1
motionindustries.com0233737325.01In StockRuland Manufacturing Co Inc25.0 @ 1
thumbzoomRaptor SuppliesAB8ZZX32.0232511In StockRULAND MANUFACTURING32.023251 @ 1
RS Delivers745-806866.384149Ruland66.384 @ 1
