Ruland MSCX1010SS

B01IWHG7WC

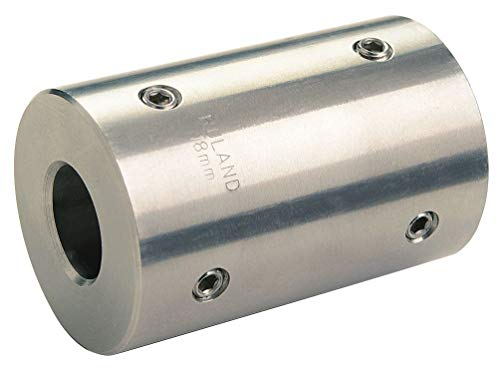

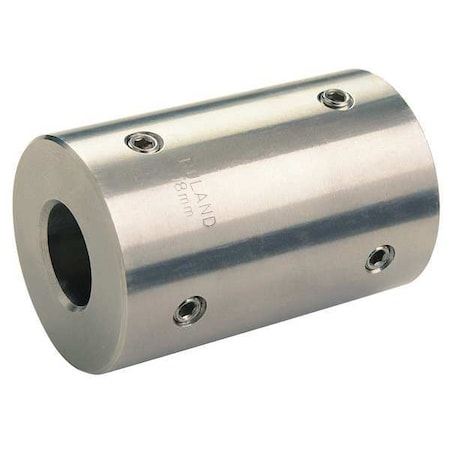

Ruland - MSCX-10-10-SS - Rigid Shaft Coupling: 10 mm Bore Dia, 303 Stainless Steel, 29 mm Outside Dia.

Ruland - MSCX-10-10-SS - Rigid Shaft Coupling: 10 mm Bore Dia, 303 Stainless Steel, 29 mm Outside Dia.zoom

Attributes

Key Value
ApplicationZero Backlash Coupling .
B1 Max Shaft Penetration22.5 mm
B2 Max Shaft Penetration22.5 mm
Bore (B1)10 mm
Bore Dia.10 mm
Bore Tolerance+0.050 mm / +0.012 mm
Country of OriginUSA
Country of Origin (subj.United States
DesignPrecision Honed Bores O.
FinishBright
Finish SpecificationBright, No Plating
Forged Set ScrewM5
Full Bearing Support Re.No
Hex Wrench Size2.5 mm
ItemRigid Shaft Coupling
Item - Rigid Shaft Coup.Rigid Shaft Coupling
Length (L)45 mm
Machined FromBar Stock
ManufacturerRuland Manufacturing
Material303 Stainless Steel
Material - Couplings303 Stainless Steel
Material SpecificationType 303 Austenitic, No.
Max. RPM4,000 RPM
Maximum Speed4,000 RPM
Moment of Inertia2.454 x 10
Note 1Performance ratings are.
Number of Screws4 ea
Outer Diameter (OD)29 mm
Outside Dia.29 mm
Overall Length45 mm
Precision Honed Bores?Yes
ProvidesHigh Torque with No Mis.
Rated TorqueRating Coming Soon
Recommended Shaft Toler.+0.000 mm / -0.013 mm
Screw FinishBright
Screw Material18-8 300 Series Stainle.
Screw SizeM5
Screw Size (mm)M5
Seating Torque3.2 Nm
Shaft Locking Type - Co.1 Piece Set Screw
Small Bore (B2)10 mm
System of MeasurementMetric
Tariff Code8483.60.8000
Temperature-40?F to 350?F (-40?C t.
TypeSet Screw Type
UNSPC31163009
UPC634529076774
Weight (lbs)0.459400
With Keyway / Without K.Without Keyway
Zero-Backlash?Yes

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomZoroG820904750.01In Stock10Ruland0.4550.0 @ 1
thumbzoomRulandMSCX-10-10-SS68.211In StockRuland0.459468.21 @ 1
thumbzoomsustainablesupply.comC164586580.051In StockRuland Manufacturing0.4580.05 @ 1
motionindustries.com0480580591.61In StockRuland Manufacturing Co Inc91.6 @ 1
thumbzoomRaptor SuppliesAF9WWW132.57357751In StockRULAND MANUFACTURING132.5735775 @ 1
