Ruland MSPK-15-A

B016APQ336

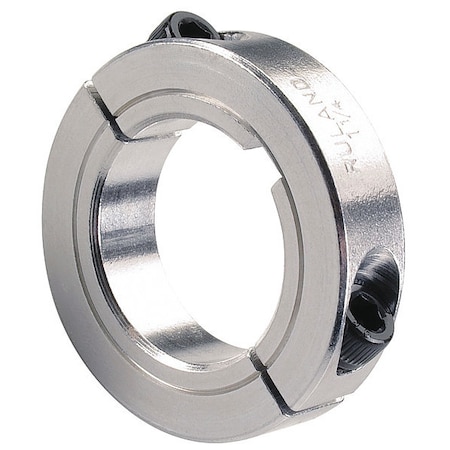

Ruland MSPK-15-A 2024 Aluminum Shaft Collar, Two Piece with Keyway, 13 mm Width, 34 mm OD, 15 mm Bore, 5 mm Keyway

Ruland MSPK-15-A 2024 Aluminum Shaft Collar, Two Piece with Keyway, 13 mm Width, 34 mm OD, 15 mm Bore, 5 mm Keywayzoom

Attributes

Key Value
Bore (B)15 mm
Bore Dia.15 mm
Bore Tolerance+0.050 mm / +0.012 mm, .
CategoryHardware, Fasteners, Ac.
Clearance Dia.39.3 mm
Clearance Diameter (C) .39.3 mm
Collar StyleClamp
Country of OriginUSA
Description15 MM ALUMINUM SHAFT CO.
Digi-Key Part Number3188-MSPK-15-A-ND
Dimension TypeMetric
Finish SpecificationBright, No Plating
Forged Clamp ScrewM5 x 16
Hex Wrench Size4.0 mm
ItemShaft Collar,Keyed,15mm.
Keyway (K)5 mm
ManufacturerRuland Manufacturing
Manufacturer Product Nu.MSPK-15-A
MaterialAluminum
Material Specification2024-T351 Aluminum Bar
MfrRuland Manufacturing
Note 1Performance ratings are.
Number of Pieces2
Number of Screws2 ea
Operating Temp. Range-40?F to 225?F (-40?C t.
Outer Diameter (OD)34 mm
Outside Dia.34 mm
PackageBag
Product StatusActive
Recommended Gap1.59 mm
Recommended Shaft Toler.+0.000 mm / -0.013 mm
Screw FinishBlack Oxide
Screw Location (R)12.50 mm
Screw MaterialAlloy Steel
Screw Seating Torque9.5 Nm
Screw SizeM5 x 16
Seating Torque9.5 Nm
Series-
Specifications1.339" (34.00mm) Outer .
StyleKeyed
Tariff Code8483.60.8000
Temperature-40?F to 225?F (-40?C t.
TypeShaft Collar, Two-Piece
UNSPC31162811
UPC634529216699
Weight0.0623 lbs
Weight (lbs)0.062300
Width13 mm
Width (W)13 mm
Width Tolerance+0.076 mm / -0.254 mm

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
AmazonSCB016APQ3368.341In StockRuland8.34 @ 1
us.rs-online.com7262319021.791In StockRuland Manufacturing21.79 @ 1
thumbzoomZoroG710301921.851In StockRuland0.3621.85 @ 1
thumbzoomRulandMSPK-15-A25.491In StockRuland0.062325.49 @ 1
thumbzoomDigi-Key1359888848.07120Ruland Manufacturing48.07 @ 1
