Ruland MSPK-35-A

B016APQ3HW

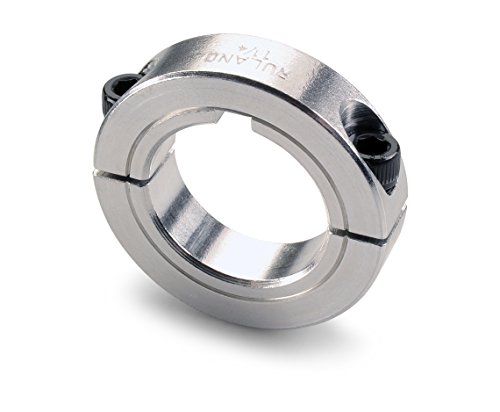

Ruland MSPK-35-A 2024 Aluminum Shaft Collar, Two Piece with Keyway, 15 mm Width, 57 mm OD, 35 mm Bore, 10 mm Keyway

Ruland MSPK-35-A 2024 Aluminum Shaft Collar, Two Piece with Keyway, 15 mm Width, 57 mm OD, 35 mm Bore, 10 mm Keywayzoom

Attributes

Key Value
Bore (B1)35 mm
Bore Tolerance+0.050 mm / +0.012 mm
Clearance Diameter (C) .62.4 mm
Country of OriginUSA
Finish SpecificationBright, No Plating
Forged Clamp ScrewM6 x 18
Hex Wrench Size5.0 mm
Keyway (K)10 mm
ManufacturerRuland Manufacturing
Material Specification2024-T351 Aluminum Bar
Note 1Performance ratings are.
Number of Screws2 ea
Outer Diameter (OD)57 mm
Recommended Gap1.59 mm
Recommended Shaft Toler.+0.000 mm / -0.013 mm
Screw FinishBlack Oxide
Screw Location (R)23.24 mm
Screw MaterialAlloy Steel
Seating Torque16 Nm
Tariff Code8483.60.8000
Temperature-40?F to 225?F (-40?C t.
UNSPC31162811
UPC634529216576
Weight (lbs)0.147900
Width (W)15 mm
Width Tolerance+0.076 mm / -0.254 mm

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Digi-Key1359864176.281In Stockruland-manufacturing76.28 @ 1
