Ruland MSPK-35-F

B016APQ3FY

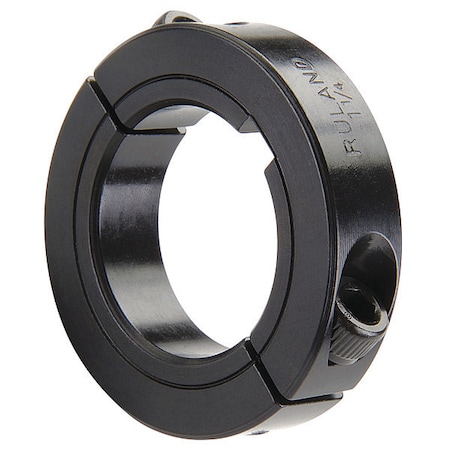

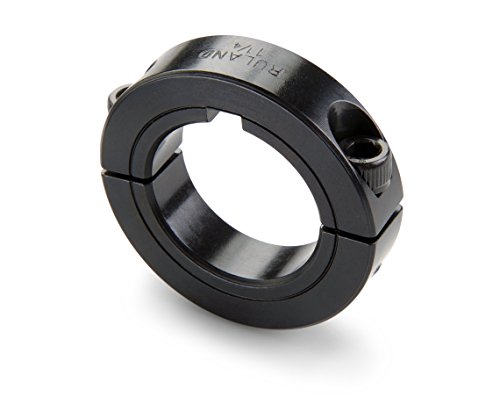

Ruland MSPK-35-F 1215 Lead-Free Steel Shaft Collar, Two Piece with Keyway, 15 mm Width, 57 mm OD, 35 mm Bore, 10 mm Keyway

Ruland MSPK-35-F 1215 Lead-Free Steel Shaft Collar, Two Piece with Keyway, 15 mm Width, 57 mm OD, 35 mm Bore, 10 mm Keywayzoom

Attributes

Key Value
Bore (B1)35 mm
Bore Dia.35 mm
Bore Tolerance+0.050 mm / +0.012 mm, .
Clearance Dia.62.4 mm
Clearance Diameter (C) .62.4 mm
Collar StyleClamp
Country of OriginUSA
Country of Origin (subj.United States
Dimension TypeMetric
Finish SpecificationHot Process Black Oxide.
Forged Clamp ScrewM6 x 18
Hex Wrench Size5.0 mm
ItemShaft Collar,Keyed,35mm.
Keyway (K)10 mm
ManufacturerRuland Manufacturing
MaterialBlack Oxide Steel
Material Specification1215 Carbon Steel Bar
Note 1Performance ratings are.
Number of Pieces2
Number of Screws2 ea
Operating Temp. Range-40?F to 350?F (-40?C t.
Outer Diameter (OD)57 mm
Outside Dia.57 mm
Recommended Gap1.59 mm
Recommended Shaft Toler.+0.000 mm / -0.013 mm
Screw FinishBlack Oxide
Screw Location (R)23.24 mm
Screw MaterialAlloy Steel
Screw Seating Torque16 Nm
Screw SizeM6 x 18
Seating Torque16 Nm
StyleKeyed
Tariff Code8483.60.8000
Temperature-40?F to 350?F (-40?C t.
TypeTwo-Piece
UNSPC31162811
UPC634529216507
Weight0.3674 lbs
Weight (lbs)0.367400
Width15 mm
Width (W)15 mm
Width Tolerance+0.076 mm / -0.254 mm

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomZoroG710309829.01In Stock10Ruland0.3629.0 @ 1
us.rs-online.com7262320929.61In StockRuland Manufacturing29.6 @ 1
thumbzoomcbtcompany.comMSPK-35-F30.161In StockRULAND MANUFACTURING30.16 @ 1
thumbzoomRulandMSPK-35-F34.61In StockRuland0.367434.6 @ 1
