Ruland MWC25-8-8-SS

B0060M4D6Y

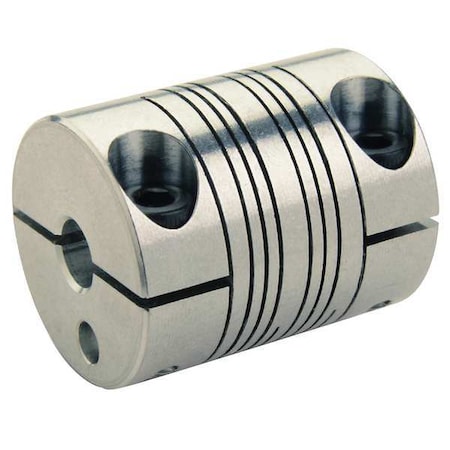

Ruland MWC25-8-8-SS Clamping Beam Coupling, Stainless Steel, Metric, 8mm Bore A Diameter, 8mm Bore B Diameter, 25mm OD, 30mm Length, 3.42 Nm Nominal Torque

Ruland MWC25-8-8-SS Clamping Beam Coupling, Stainless Steel, Metric, 8mm Bore A Diameter, 8mm Bore B Diameter, 25mm OD, 30mm Length, 3.42 Nm Nominal Torquezoom

Attributes

Key Value
Angular Misalignment3?
Axial Motion0.25 mm
B1 Max Shaft Penetration14.2 mm
B2 Max Shaft Penetration14.2 mm
Balanced DesignYes
Bore (B1)8 mm
Bore Dia.8mm x 8mm
Bore Tolerance+0.025 mm / -0.000 mm
Cap ScrewM3
Clearance Dia. (In.)1.181 in
Clearance Dia. (mm)30
Country of OriginUSA
Country of Origin (subj.United States
Dynamic Torque Non-Reve.2.55 Nm
Dynamic Torque Reversing1.28 Nm
FinishBright
Finish SpecificationBright, No Plating
Full Bearing Support Re.Yes
Hex Wrench Size2.5 mm
ItemMotion Control Coupling
Item - Motion Control C.Motion Control Coupling
Length (L)30.0 mm
Length through Bore13.79 mm
Length through Bore (In.0.543
Length through Bore (mm)13.79
ManufacturerRuland Manufacturing
MaterialStainless Steel
Material - CouplingsStainless Steel
Material SpecificationType 303 Austenitic, No.
Max. Angular Misalignme.3 Degrees
Max. Axial Misalignment.+/-0.01
Max. Bore (In.)0.5 in
Max. Bore (mm)8 mm
Max. Parallel Misalignm.0.015 in
Max. RPM6,000 RPM, 6000
Max. Temp.350 Degrees F
Max. Temp. Range (F)350 Degrees
Maximum Speed6,000 RPM
Min. Bore (mm)8
Moment of Inertia7.871 x10
Note 1Torque ratings are at m.
Note 2Performance ratings are.
Note 3Torque ratings for the .
Number of Screws2 ea
Outer Diameter (OD)25.0 mm
Outside Dia.25 mm, 25.0mm
Outside Dia. (In.)0.984
Outside Dia. (mm)25
Overall Length30.0mm, 30 mm
Overall Length (In.)1.181
Overall Length (mm)30
Parallel Misalignment0.38 mm
Rated Torque45 in-lb, 45 in.-lb.
Recommended Shaft Toler.+0.000 mm / -0.013 mm
Screw FinishBlack Oxide
Screw MaterialAlloy Steel
Screw SizeM3
Screw Size (mm)M3
Screw TypeCap Screw
Seating Torque2.1 Nm
Shaft Locking Type - Co.1 Piece Clamp
SizeMWC25
Small Bore (B2)8 mm
Static Torque5.10 Nm
Style4-Beam Clamp
Tariff Code8483.60.8000
Temperature-40?F to 350?F (-40?C t.
Torque (In.-Lbs.)45
Torsional Stiffness0.58 Deg/Nm
Torsional Stiffness (De.0.066
UNSPC31163003
UPC634529055519
UPC Code63452905551
Weight (lbs)0.186800
Zero-Backlash?Yes

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
RS Delivers325-809494.788130Ruland94.788 @ 1
thumbzoomZoroG820550499.411In Stock10Ruland0.199.41 @ 1
us.rs-online.com72177397123.131In StockRuland Manufacturing123.13 @ 1
thumbzoomRulandMWC25-8-8-SS141.711In StockRuland0.1868141.71 @ 1
thumbzoomsustainablesupply.comC1645243153.131In StockRuland Manufacturing0.1153.13 @ 1
Grainger30UY06161.01In StockRULAND MANUFACTURING0.1161.0 @ 1
motionindustries.com02337608176.11In StockRuland Manufacturing Co Inc176.1 @ 1
thumbzoomRaptor SuppliesAF9VCG239.25815551In StockRULAND MANUFACTURING239.2581555 @ 1
