Ruland PSR16-6-6-A

B002SJWD42

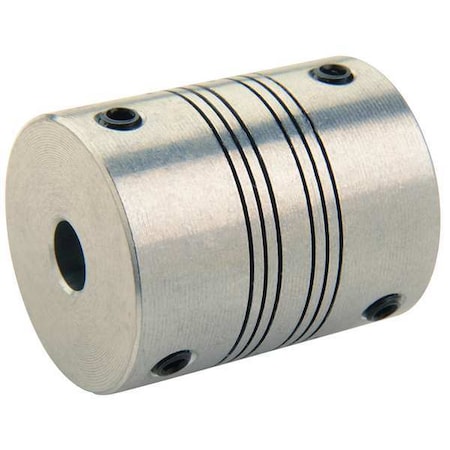

Ruland PSR16-6-6-A Set Screw Beam Coupling, Polished Aluminum, Inch, 3/8" Bore A Diameter, 3/8" Bore B Diameter, 1" OD, 1-1/4" Length, 41 lb-in Nominal Torque

Ruland PSR16-6-6-A Set Screw Beam Coupling, Polished Aluminum, Inch, 3/8" Bore A Diameter, 3/8" Bore B Diameter, 1" OD, 1-1/4" Length, 41 lb-in Nominal Torquezoom

Attributes

Key Value
Angular Misalignment3?
Axial Motion0.010 in
B1 Max Shaft Penetration0.579 in
B2 Max Shaft Penetration0.579 in
Bore (B1)0.3750 in
Bore Dia.3/8 in x 3/8 in
Bore Tolerance+0.001 in / -0.000 in
BrandRULAND
CategoryHardware, Fasteners, Ac.
Clearance Dia. (In.)1.0 in
Country of OriginUSA
Country of Origin (subj.United States
Current Stock22
Description3/8"X3/8" ALUMINUM BEAM.
Digi-Key Part Number3188-PSR16-6-6-A-ND
Dynamic Torque Non-Reve.15 lb-in
Dynamic Torque Reversing7.5 lb-in
FinishBright
Finish SpecificationBright, No Plating
Forged Set ScrewM4
Full Bearing Support Re.Yes
Hex Wrench Size2.0 mm
Hub Dia.1 in
International ShippingNo
ItemMotion Control Coupling
Item - Motion Control C.Motion Control Coupling
Length (L)1.250 in
Length through Bore0.625 in
Length through Bore (In.0.625
ManufacturerRuland Manufacturing
Manufacturer Product Nu.PSR16-6-6-A
MaterialAluminum
Material - CouplingsAluminum
Material Specification7075-T651 Extruded and .
Max. Angular Misalignme.3 Degrees
Max. Axial Misalignment.+/-0.010
Max. Parallel Misalignm.0.015 in
Max. RPM6,000 RPM
Max. Temp.225 Degrees F
Max. Temp. Range (F)225
Maximum Speed6,000 RPM
MfrRuland Manufacturing
Moment of Inertia0.0116 lb-in
MpnPSR16-6-6-A
Note 1Torque ratings are at m.
Note 2Performance ratings are.
Note 3Torque ratings for the .
Number of Screws4 ea
Outer Diameter (OD)1.000 in
Outside Dia.1.0 in
Outside Dia. (In.)1.000
Overall Length1.25 in
Overall Length (In.)1.25
PackageBag
Parallel Misalignment0.015 in
Product StatusActive
Prop 65Warning: This product c.
Rated Torque30 in-lb
Recommended Shaft Toler.+0.0000 in / -0.0005 in
Screw FinishBlack Oxide
Screw MaterialAlloy Steel
Screw SizeM4
Screw Size (mm)M4
Screw TypeSet Screw
Seating Torque1.76 Nm
Series-
Shaft Locking Type - Co.1 Piece Set Screw
Size-
SKUZO-G2528215
Small Bore (B2)0.3750 in
Specifications1.000" (25.40mm) Outer .
Static Torque30 lb-in
Style4 Beam Set Screw
SubCategoryPower Transmission
Tariff Code8483.60.8000
Temperature-40?F to 225?F (-40?C t.
Torque (In.-Lbs.)30
Torsional Stiffness0.200 Deg/lb-in
Torsional Stiffness (De.0.2
TypeBeam Coupling
UNSPC31163003
UPC634529034088
UPC Code63452903408
Weight (lbs)0.078100
Zero-Backlash?Yes

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
RS Delivers364-308237.104123Ruland37.104 @ 1
us.rs-online.com7217751142.11In StockRuland Manufacturing42.1 @ 1
thumbzoomZoroG252821543.991In StockRuland0.0843.99 @ 1
Grainger2AMB644.71230RULAND MANUFACTURING44.7 @ 1
thumbzoomsustainablesupply.comC167164046.231In StockRuland Manufacturing0.0846.23 @ 1
thumbzoomRulandPSR16-6-6-A48.471In StockRuland0.078148.47 @ 1
thumbzoomsimsupply.comZO-G252821561.36122RULAND61.36 @ 1
motionindustries.com0233799065.121In StockRuland Manufacturing Co Inc65.12 @ 1
thumbzoomDigi-Key1359526278.171112Ruland Manufacturing78.17 @ 1
thumbzoomRaptor SuppliesAB8ZKU82.460431In StockRULAND MANUFACTURING82.46043 @ 1
