Ruland TCL-4-20-SS

B0063KPZGA

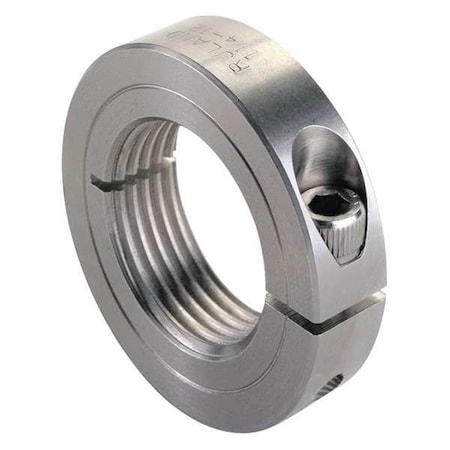

Ruland TCL-4-20-SS One-Piece Clamping Shaft Collar, Threaded, Stainless Steel.250"-20 Bore, 5/8" OD, 9/32" Width (Pack of 2)

Ruland TCL-4-20-SS One-Piece Clamping Shaft Collar, Threaded, Stainless Steel.250"-20 Bore, 5/8" OD, 9/32" Width (Pack of 2)zoom

Attributes

Key Value
Bore Dia.1/4"-20
Bore Diameter1/4 in
Bore Thread Size1/4"-20
Bore WidthNot Applicable
CategoryHardware, Fasteners, Ac.
Clearance Dia.0.773 in
Clearance Diameter0.77 in
Clearance Diameter (C) .0.773 in
Collar Outside Diameter5/8 in
Collar StyleClamp, Threaded
Collar Width9/32 in
Country of OriginUSA
Description1/4" STAINLESS THREADED.
Digi-Key Part Number3188-TCL-4-20-SS-ND
Dimension TypeInch
Finish SpecificationBright, No Plating
For Shaft Diameter1/4 in
Forged Clamp Screw#4-40
Hex Wrench Size3/32 in
Inside Height to FlatNot Applicable
Keyway DepthNot Applicable
Keyway WidthNot Applicable
Lever HeightNot Applicable
Lever LengthNot Applicable
ManufacturerRuland Manufacturing
Manufacturer Product Nu.TCL-4-20-SS
Material303 Stainless Steel
Material SpecificationType 303 Austenitic, No.
MfrRuland Manufacturing
Mount Hole Thread SizeNot Applicable
Note 1Performance ratings are.
Number of Pieces1
Number of Screws1 ea
Outer Diameter (OD)5/8 in
Outside Dia.5/8 in
PackageBag
Product StatusActive
Recommended Shaft Toler.+0.0000 in / -0.0005 in
Screw FinishBright
Screw Location (R)0.210 in
Screw Material18-8 300 Series Stainle.
Screw Size#4-40
Screw Thread Size#4-40
Seating Torque8 lb-in
Series-
Tariff Code8483.60.8000
Temperature-40?F to 350?F (-40?C t.
Thread Class3B
Threaded Bore (B)1/4 in - 20 TPI
TypeShaft Collar
UNSPC31162811
UPC634529028438
UPC Code63452902843
Weight (lbs)0.019400
Width9/32 in
Width (W)0.281 in
Width Tolerance+0.003 in / -0.010 in, .

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomZoroG23460937.851In StockRuland0.027.85 @ 1
us.rs-online.com723387439.381In StockRuland Manufacturing9.38 @ 1
thumbzoomsustainablesupply.comC167152110.591In StockRuland Manufacturing0.0210.59 @ 1
thumbzoomRulandTCL-4-20-SS10.971In StockRuland0.019410.97 @ 1
motionindustries.com0024390414.331In StockRuland Manufacturing Co Inc14.33 @ 1
AmazonSCB0713Y7Z2D15.251In StockRuland15.25 @ 1
thumbzoomRaptor SuppliesAB8ZBQ20.0005651In StockRULAND MANUFACTURING20.000565 @ 1
thumbzoomDigi-Key1361248226.58125Ruland Manufacturing26.58 @ 1
