Ruland CLC-24-24-SS

B0060LZ2F6

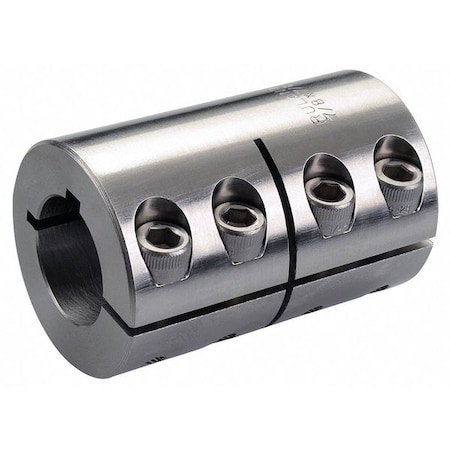

Ruland CLC-24-24-SS One-Piece Clamping Rigid Coupling with Keyway, Stainless Steel, 1-1/2" Bore A Diameter, 1-1/2" Bore B Diameter, 2-5/8" OD, 3-7/8" Length, 3/8" x 3/8" Keyway Width

Ruland CLC-24-24-SS One-Piece Clamping Rigid Coupling with Keyway, Stainless Steel, 1-1/2" Bore A Diameter, 1-1/2" Bore B Diameter, 2-5/8" OD, 3-7/8" Length, 3/8" x 3/8" Keyway Widthzoom

Attributes

Key Value
ApplicationFor Applications where .
B1 Max Shaft Penetration1.937 in
B2 Max Shaft Penetration1.937 in
Bore (B1)1.5000 in
Bore Dia.1 1/2 in
Bore Tolerance+0.0020 in / +0.0005 in
CategoryHardware, Fasteners, Ac.
Clearance Dia.2.886 in
Clearance Dia. (In.)2.886
Clearance Diameter (C) .2.886 in
Country of OriginUSA
Country of Origin (subj.United States
DesignFour Vibration Resistan.
FinishBright
Finish SpecificationBright, No Plating
Forged Clamp Screw5/16-24
Full Bearing Support Re.No
Hex Wrench Size1/4 in
ItemRigid Shaft Coupling
Item - Rigid Shaft Coup.Rigid Shaft Coupling
Keyway (K1)3/8 in
Keyway (K2)3/8 in
Keyway Width3/8 in
Keyway Width (In.)3/8
Length (L)3 7/8 in
Machined FromBar Stock
ManufacturerRuland Manufacturing
Material303 Stainless Steel
Material - Couplings303 Stainless Steel
Material SpecificationType 303 Austenitic, No.
Max. Torque3,100 in-lb
Max. Torque (In.-Lbs.)3100
Maximum Speed4,000 RPM
MfrRuland Manufacturing
Moment of Inertia4.4075 lb-in
Note 1Performance ratings are.
Number of Screws4 ea
Nypatch? Anti-Vibration.Yes
Outer Diameter (OD)2 5/8 in
Outside Dia.2 5/8 in
Overall Length3 7/8 in
PackageBag
Precision Honed Bores?Yes
Product StatusActive
ProvidesExtra Holding Power for.
Rated Torque3100 in-lb
Recommended Shaft Toler.+0.0000 in / -0.0005 in
Screw FinishBright
Screw Location (R)1.050 in
Screw Material18-8 300 Series Stainle.
Screw Size5/16"-24
Screw Size (In.)5/16-24
Seating Torque190 lb-in
Series-
Shaft Locking Type - Co.1 Piece Clamp
Small Bore (B2)1.5000 in
Specifications2.625" (66.68mm) Outer .
StandardsREACH Compliant, RoHS2 .
System of MeasurementInch
Tariff Code8483.60.8000
Temperature-40?F to 350?F (-40?C t.
TypeOne Piece Clamp Type, w.
UNSPC31163009
UPC634529001813
Weight (lbs)3.839900
With Keyway / Without K.With Keyway
Zero-Backlash?Yes

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
us.rs-online.com74731316327.481In StockRuland Manufacturing327.48 @ 1
thumbzoomZoroG3071372357.01In Stock10Ruland3.9357.0 @ 1
thumbzoomAmazonSCB0060LZ2F6369.21In StockRuland369.2 @ 1
thumbzoomRulandCLC-24-24-SS407.111In StockRuland3.8399407.11 @ 1
motionindustries.com02336636527.861In StockRuland Manufacturing Co Inc527.86 @ 1
Digi-Key13603493548.38162Ruland Manufacturing548.38 @ 1
thumbzoomRaptor SuppliesAB8ZEP704.5785631In StockRULAND MANUFACTURING704.578563 @ 1
