Ruland FCR10-3-3-A

B0060LRKQA

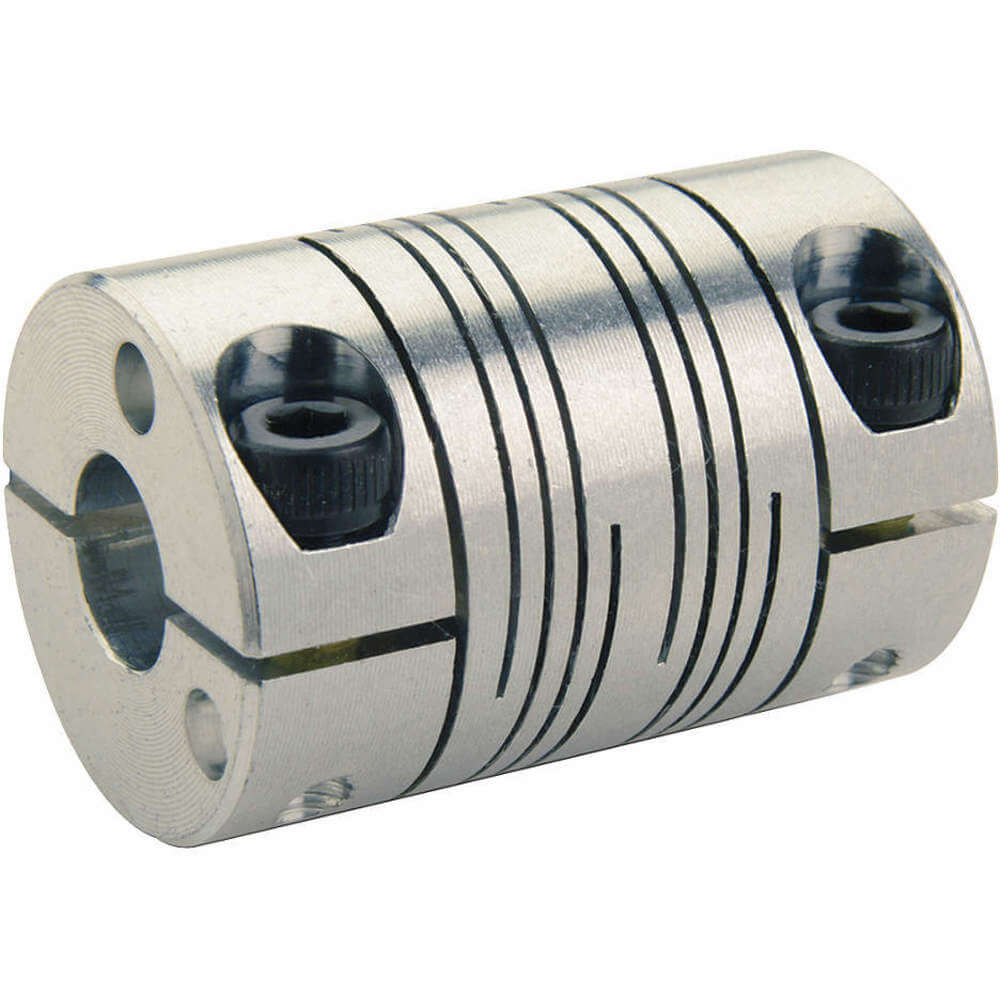

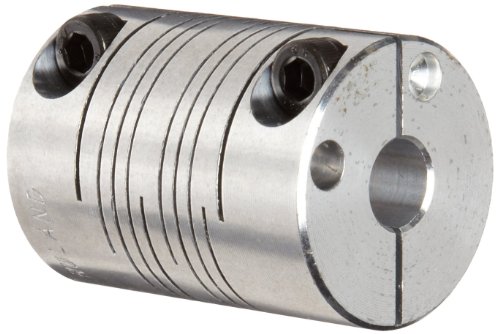

Ruland FCR10-3-3-A Clamping Beam Coupling, Polished Aluminum, Inch, 3/16" Bore A Diameter, 3/16" Bore B Diameter, 5/8" OD, 1" Length, 13 lb-in Nominal Torque

Ruland FCR10-3-3-A Clamping Beam Coupling, Polished Aluminum, Inch, 3/16" Bore A Diameter, 3/16" Bore B Diameter, 5/8" OD, 1" Length, 13 lb-in Nominal Torquezoom

Attributes

Key Value
Angular Misalignment3?
Axial Motion0.005 in
B1 Max Shaft Penetration0.483 in
B2 Max Shaft Penetration0.483 in
Balanced DesignYes
Bore (B1)0.1875 in
Bore Dia.3/16 in x 3/16 in
Bore Tolerance+0.001 in / -0.000 in
Cap ScrewM2.5
CategoryHardware, Fasteners, Ac.
Clearance Dia. (In.)0.796 in
Clearance Diameter (C) .0.796 in
Country of OriginUSA
Country of Origin (subj.United States
Description3/16"X3/16" ALUMINUM BE.
Digi-Key Part Number3188-FCR10-3-3-A-ND
Dynamic Torque Non-Reve.6.5 lb-in
Dynamic Torque Reversing3.25 lb-in
FinishBright
Finish SpecificationBright, No Plating
Full Bearing Support Re.Yes
Hex Wrench Size2.0 mm
ItemMotion Control Coupling
Item - Motion Control C.Motion Control Coupling
Length (L)1.000 in
Length through Bore0.5 in
Length through Bore (In.0.500
ManufacturerRuland Manufacturing
Manufacturer Product Nu.FCR10-3-3-A
MaterialAluminum
Material - CouplingsAluminum
Material Specification7075-T651 Extruded and .
Max. Angular Misalignme.3 Degrees
Max. Axial Misalignment.+/-0.005
Max. Parallel Misalignm.0.008 in
Max. RPM6,000 RPM
Max. Temp.225 Degrees F
Max. Temp. Range (F)225
Maximum Speed6,000 RPM
MfrRuland Manufacturing
Moment of Inertia0.0013 lb-in
Note 1Torque ratings are at m.
Note 2Performance ratings are.
Note 3Torque ratings for the .
Number of Screws2 ea
Outer Diameter (OD)0.625 in
Outside Dia.0.625 in
Outside Dia. (In.)0.625
Overall Length1 in
Overall Length (In.)1.00
PackageBag
Parallel Misalignment0.008 in
Product StatusActive
Rated Torque13 in-lb
Recommended Shaft Toler.+0.0000 in / -0.0005 in
Screw FinishBlack Oxide
Screw MaterialAlloy Steel
Screw SizeM3
Screw Size (mm)M3
Screw TypeCap Screw
Seating Torque1.21 Nm
Series-
Shaft Locking Type - Co.1 Piece Clamp
Size-
Small Bore (B2)0.1875 in
Specifications0.625" (15.88mm) Outer .
Static Torque13 lb-in
Style6 Beam Clamp
Tariff Code8483.60.8000
Temperature-40?F to 225?F (-40?C t.
Torque (In.-Lbs.)13
Torsional Stiffness0.360 Deg/lb-in
Torsional Stiffness (De.0.36
TypeBeam Coupling
UNSPC31163003
UPC634529008317
Weight (lbs)0.021800
Zero-Backlash?Yes

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomZoroG289877742.01In Stock10Ruland0.0342.0 @ 1
thumbzoomRulandFCR10-3-3-A51.591In StockRuland0.021851.59 @ 1
motionindustries.com0233667769.271In StockRuland Manufacturing Co Inc69.27 @ 1
thumbzoomDigi-Key1360786082.39153Ruland Manufacturing82.39 @ 1
thumbzoomRaptor SuppliesAB8XLK87.7790161In StockRULAND MANUFACTURING87.779016 @ 1
