Ruland FSMR32-11-8-A

B016APPGIO

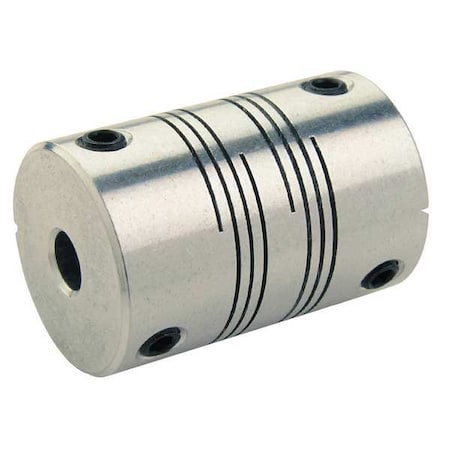

Ruland FSMR32-11-8-A 7075 Aluminum Beam Coupling, 6-Beam Set Screw Style, 11 mm x 8 mm Bores, 31.8 mm OD, 44.5 mm Length

Ruland FSMR32-11-8-A 7075 Aluminum Beam Coupling, 6-Beam Set Screw Style, 11 mm x 8 mm Bores, 31.8 mm OD, 44.5 mm Lengthzoom

Attributes

Key Value
Angular Misalignment3.0?
Axial Motion0.25 mm
B1 Max Shaft Penetration21.4 mm
B2 Max Shaft Penetration21.4 mm
Bore (B1)11 mm
Bore Dia.11mm x 8mm
Bore Tolerance+0.025 mm / -0.000 mm
CategoryHardware, Fasteners, Ac.
Clearance Dia. (In.)1.642 in
Clearance Dia. (mm)41.71
Country of OriginUSA
Country of Origin (subj.United States
Dynamic Torque Non-Reve.2.83 Nm
Dynamic Torque Reversing1.41 Nm
FinishBright
Finish SpecificationBright, No Plating
Forged Set ScrewM6
Full Bearing Support Re.Yes
Hex Wrench Size3.0 mm
ItemMotion Control Coupling
Item - Motion Control C.Motion Control Coupling
Length (L)44.5 mm
Length through Bore20.82 mm
Length through Bore (In.0.82
Length through Bore (mm)20.82
ManufacturerRuland Manufacturing
MaterialAluminum
Material - CouplingsAluminum
Material Specification7075-T651 Extruded and .
Max. Angular Misalignme.3 Degrees
Max. Axial Misalignment.+/-0.01
Max. Bore (mm)11 mm
Max. Parallel Misalignm.0.015 in
Max. RPM6,000 RPM
Max. Temp.225 Degrees F
Max. Temp. Range (F)225 Degrees
Maximum Speed6,000 RPM
MfrRuland Manufacturing
Min. Bore (mm)8
Moment of Inertia11.885 x10
Note 1Torque ratings are at m.
Note 2Performance ratings are.
Note 3Torque ratings for the .
Number of Screws4 ea
Outer Diameter (OD)31.8 mm
Outside Dia.31.8 mm
Outside Dia. (In.)1.25
Outside Dia. (mm)31.8
Overall Length44.5 mm
Overall Length (In.)1.75
Overall Length (mm)44.5
PackageBag
Parallel Misalignment0.38 mm
Product StatusActive
Rated Torque50 in-lb
Recommended Shaft Toler.+0.000 mm / -0.013 mm
Screw FinishBlack Oxide
Screw MaterialAlloy Steel
Screw SizeM6
Screw Size (mm)M6
Screw TypeSet Screw
Seating Torque7.2 Nm
Series-
Setscrew Location2 (120 Degrees )
Shaft Locking Type - Co.1 Piece Set Screw
SizeFSMR32
Small Bore (B2)8 mm
Specifications1.250" (31.80mm) Outer .
Static Torque5.65 Nm
Style6-Beam Set Screw
Tariff Code8483.60.8000
Temperature-40?F to 225?F (-40?C t.
Torque (In.-Lbs.)50
Torsional Stiffness0.63 Deg/Nm
Torsional Stiffness (De.0.071
TypeBeam Coupling
UNSPC31163003
UPC634529010907
Weight (lbs)0.182900
Zero-Backlash?Yes

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomZoroG838553563.01In Stock10Ruland0.1863.0 @ 1
thumbzoomcbtcompany.comFSMR32-11-8-A68.411In StockRULAND MANUFACTURING68.41 @ 1
thumbzoomRulandFSMR32-11-8-A78.491In StockRuland0.182978.49 @ 1
Digi-Key13610469119.12110Ruland Manufacturing119.12 @ 1
Grainger30UV86125.51In Stock15RULAND MANUFACTURING125.5 @ 1
thumbzoomsustainablesupply.comC1645026132.691In StockRuland Manufacturing0.18132.69 @ 1
thumbzoomRaptor SuppliesAF9UTD161.55763651In StockRULAND MANUFACTURING161.5576365 @ 1
