Ruland MBC25-12-12-A

B016APPJSQ

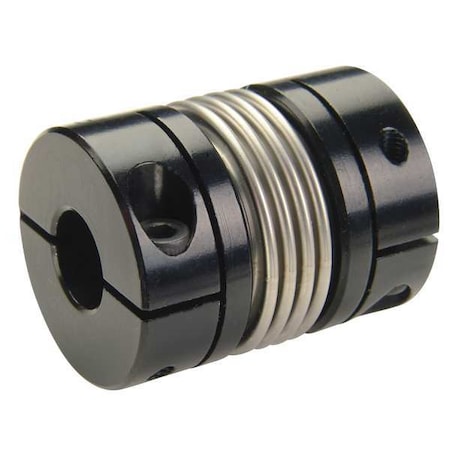

Ruland MBC25-12-12-A 2024 or 7075 Aluminum Hubs Bellows Coupling, Clamp Style, 12 mm x 12 mm Bores, 25.4 mm OD, 33.3 mm Length

Ruland MBC25-12-12-A 2024 or 7075 Aluminum Hubs Bellows Coupling, Clamp Style, 12 mm x 12 mm Bores, 25.4 mm OD, 33.3 mm Lengthzoom

Attributes

Key Value
Angular Misalignment1.5?
Axial Motion0.30 mm
B1 Max Shaft Penetration15.9 mm
B2 Max Shaft Penetration15.9 mm
Balanced DesignYes
Bellows Attachment Meth.Epoxy
Bore (B1)12 mm
Bore Dia.12mm x 12mm
Bore Tolerance+0.03 mm / -0.00 mm
CategoryHardware, Fasteners, Ac.
Clearance Dia. (mm)25.0
Country of OriginUSA
Country of Origin (subj.United States
Dynamic Torque Non-Reve.3.40 Nm
Dynamic Torque Reversing1.70 Nm
FinishAnodized Aluminum
Finish SpecificationSulfuric Anodized MIL-A.
Forged Clamp ScrewM3
Full Bearing Support Re.Yes
Hex Wrench Size2.5 mm
Hub Dia.25 mm
Hub Width (LH)11.85 mm
ItemMotion Control Coupling
Item - Motion Control C.Motion Control Coupling
Length (L)34.2 mm
Length through Bore16.5 mm
Length through Bore (mm)16.50
Length Tolerance+/- 0.76 mm
ManufacturerRuland Manufacturing
MaterialAluminum
Material - CouplingsAluminum
Material SpecificationHubs: 2024-T351 Aluminu.
Max. Angular Misalignme.1.5 Degrees
Max. Axial Misalignment.+/-0.012
Max. Parallel Misalignm.0.004 in
Max. RPM10,000 RPM
Max. Temp.200 Degrees F
Max. Temp. Range (F)200
Maximum Speed10,000 RPM
MfrRuland Manufacturing
Moment of Inertia2.645 x10
Note 1Stainless steel hubs ar.
Note 2Torque ratings are at m.
Note 3Performance ratings are.
Note 4Torque ratings for the .
Number of Screws2 ea
Outer Diameter (OD)25.4 mm
Outside Dia.25 mm
Outside Dia. (mm)25
Overall Length33.3 mm
Overall Length (In.)-
Overall Length (mm)33
PackageBag
Parallel Misalignment0.10 mm
Product StatusActive
Rated Torque60 in-lb
Recommended Shaft Toler.+0.000 mm / -0.013 mm
Screw FinishBlack Oxide
Screw MaterialAlloy Steel
Screw SizeM3
Screw Size (mm)M3
Screw TypeCap Screw
Seating Torque2.1 Nm
Series-
Shaft Locking Type - Co.1 Piece Clamp
Size-
Small Bore (B2)12 mm
Specifications1.000" (25.40mm) Outer .
Static Torque6.8 Nm
StyleBellows Clamp
Tariff Code8483.60.8000
Temperature-40?F to 200?F (-40?C t.
Torque (In.-Lbs.)60
Torsional Stiffness27 Nm/Deg
Torsional Stiffness (De.0.004
TypeBellows Coupling
UNSPC31163018
UPC634529063774
UPC Code63452906377
Weight (lbs)0.065100
Zero-Backlash?Yes

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomZoroG130122194.01In Stock15Ruland0.0994.0 @ 1
RS Delivers174-7177108.16816Ruland108.168 @ 1
us.rs-online.com72177098108.631In StockRuland Manufacturing108.63 @ 1
thumbzoomcbtcompany.comMBC25-12-12-A108.991In StockRULAND MANUFACTURING108.99 @ 1
thumbzoomRulandMBC25-12-12-A125.061In StockRuland0.0651125.06 @ 1
Grainger2APX8134.41In Stock15RULAND MANUFACTURING134.4 @ 1
motionindustries.com02336907171.081In StockRuland Manufacturing Co Inc171.08 @ 1
Digi-Key13594347185.841In StockRuland Manufacturing185.84 @ 1
thumbzoomRaptor SuppliesAB9AKX203.6705581In StockRULAND MANUFACTURING203.670558 @ 1
