Ruland MCL-34-SS

B0063KOF84

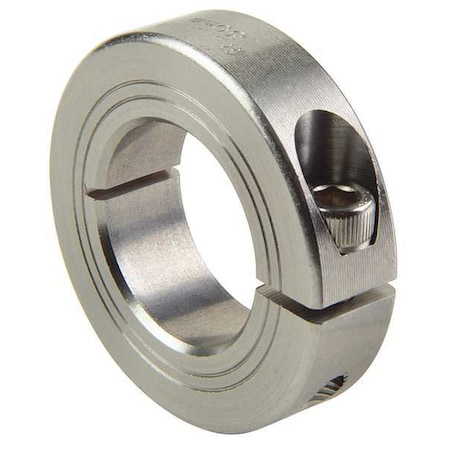

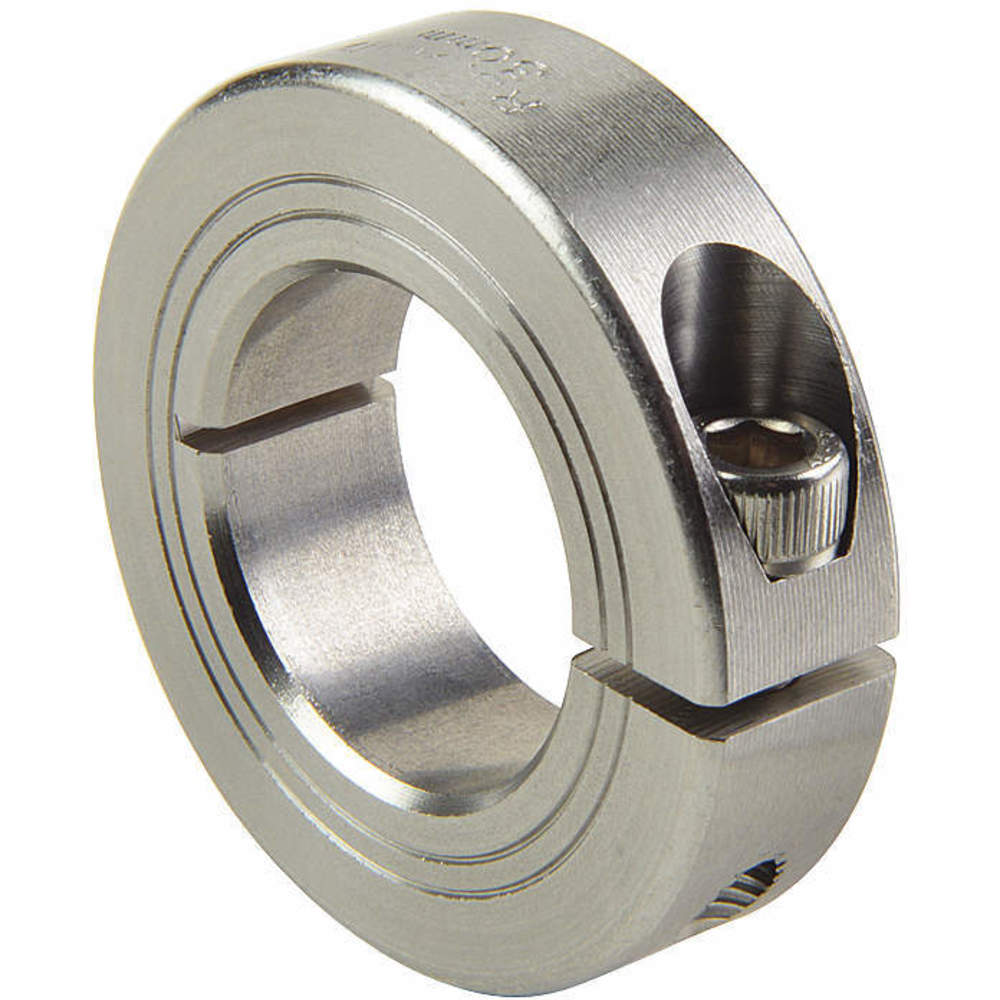

Ruland MCL-34-SS One-Piece Clamping Shaft Collar, Stainless Steel, Metric, 34mm Bore, 57mm OD, 15mm Width

Ruland MCL-34-SS One-Piece Clamping Shaft Collar, Stainless Steel, Metric, 34mm Bore, 57mm OD, 15mm Widthzoom

Attributes

Key Value
Bore (B1)34 mm
Bore Dia.34 mm
Bore Tolerance+0.050 mm / +0.012 mm
Bore Type - CollarsPlain Bore
CategoryHardware, Fasteners, Ac.
Clearance Dia.62.4 mm
Clearance Diameter (C) .62.4 mm
Collar StyleClamp
Country of OriginUSA
Country of Origin (subj.United States
Description34 MM STAINLESS SHAFT C.
Digi-Key Part Number3188-MCL-34-SS-ND
Dimension TypeMetric
Finish SpecificationBright, No Plating
Forged Clamp ScrewM6 x 18
Hex Wrench Size5.0 mm
ItemShaft Collar
Item - Shaft CollarsShaft Collar
ManufacturerRuland Manufacturing
Manufacturer Product Nu.MCL-34-SS
Material303 Stainless Steel
Material - Collars303 Stainless Steel
Material SpecificationType 303 Austenitic, No.
MfrRuland Manufacturing
Note 1Performance ratings are.
Number of Pieces1
Number of Screws1 ea
Operating Temp. Range-40 Degrees to 350 Degr.
Outer Diameter (OD)57 mm
Outside Dia.57 mm
PackageBag
Product StatusActive
Recommended Shaft Toler.+0.000 mm / -0.013 mm
Screw FinishBright
Screw Location (R)23.24 mm
Screw Material18-8 300 Series Stainle.
Screw SizeM6 x 18
Seating Torque9.6 Nm
Series-
Shaft Locking Type - Co.1 Piece Clamp
Specifications2.244" (57.00mm) Outer .
System of MeasurementMetric
Tariff Code8483.60.8000
Temperature-40?F to 350?F (-40?C t.
TypeShaft Collar
UNSPC31162811
UPC634529012376
Weight (lbs)0.414000
Width15 mm
Width (W)15 mm
Width Tolerance+0.076 mm / -0.254 mm

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomZoroG838220241.01In Stock10Ruland0.4341.0 @ 1
thumbzoomRulandMCL-34-SS46.071In StockRuland0.41446.07 @ 1
thumbzoomsustainablesupply.comC164601564.031In StockRuland Manufacturing0.4364.03 @ 1
thumbzoomDigi-Key1360546775.46125Ruland Manufacturing75.46 @ 1
us.rs-online.com7262247286.321In StockRuland Manufacturing86.32 @ 1
thumbzoomRaptor SuppliesAF9XCW110.09249551In StockRULAND MANUFACTURING110.0924955 @ 1
motionindustries.com02337118138.831In StockRuland Manufacturing Co Inc138.83 @ 1
