Ruland MSP-24E-F

B07HBPVW75

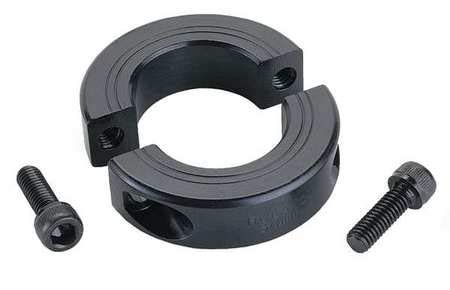

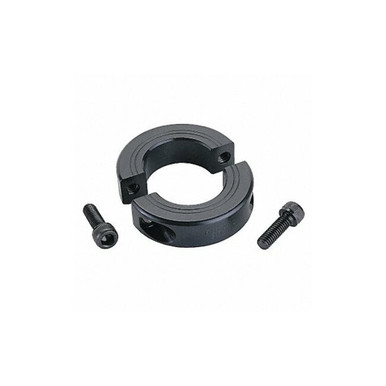

Shaft Collar,Clamp,2Pc,1-1/2 in,Steel

Shaft Collar,Clamp,2Pc,1-1/2 in,Steelzoom

Attributes

Key Value
Bore (B)1.5000 in
Bore Dia.1 1/2 in
Bore Tolerance+0.0020 in / +0.0005 in
Bore Type - CollarsPlain Bore
BrandRULAND
Clearance Dia.65.6 mm
Clearance Diameter (C) .65.6 mm
Collar StyleClamp
ColorBlack Oxide
Country of OriginUSA
Country of Origin (subj.United States
Current Stock22
Dimension TypeInch
Finish SpecificationHot Process Black Oxide.
Forged Clamp ScrewM6
Hex Wrench Size5.0 mm
International ShippingNo
ItemShaft Collar
Item - Shaft CollarsShaft Collar
Lead TimeExpected to ship in 1-2.
ManufacturerRuland Manufacturing
MaterialBlack Oxide 1215 Lead F.
Material - CollarsBlack Oxide 1215 Lead F.
Material Specification1215 Carbon Steel Bar
MpnMSP-24E-F
Note 1Performance ratings are.
Number of Pieces2
Number of Screws2 ea
Operating Temp. Range-40 Degrees to 350 Degr.
Outer Diameter (OD)60 mm
Outside Dia.60 mm
Recommended Gap1.59 mm
Recommended Shaft Toler.+0.0000 in / -0.0005 in
Screw FinishBlack Oxide
Screw Location (R)24.99 mm
Screw MaterialAlloy Steel
Screw SizeM6
Seating Torque16 Nm
Shaft Locking Type - Co.2 Piece Clamp
SKUZO-G8106786
SubCategoryPower Transmission
System of MeasurementInch
Tariff Code8483.60.8000
Temperature-40?F to 350?F (-40?C t.
UNSPC31162811
UPC634529117682
Weight (lbs)0.401100
Width15 mm
Width (W)15 mm
Width Tolerance+0.076 mm / -0.254 mm

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomZoroG810678617.021In StockRuland0.4117.02 @ 1
us.rs-online.com7262274418.221In StockRuland Manufacturing18.22 @ 1
thumbzoomRulandMSP-24E-F19.571In StockRuland0.401119.57 @ 1
thumbzoomsustainablesupply.comC164617621.951In StockRuland Manufacturing0.4121.95 @ 1
Grainger30VM6222.651In Stock10RULAND MANUFACTURING22.65 @ 1
thumbzoomsimsupply.comZO-G810678627.74122RULAND27.74 @ 1
AmazonTPB07HBPVW7530.991In Stock2RULAND MANUFACTURING30.99 @ 1
thumbzoomRaptor SuppliesAF9XKP45.39793051In StockRULAND MANUFACTURING45.3979305 @ 1
