Ruland PSMR32-11-8-A

B016APQES0

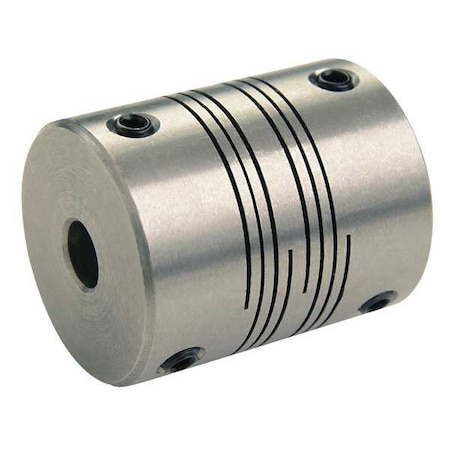

Ruland PSMR32-11-8-A 7075 Aluminum Beam Coupling, 4-Beam Set Screw Style, 11 mm x 8 mm Bores, 31.8 mm OD, 38.1 mm Length

Ruland PSMR32-11-8-A 7075 Aluminum Beam Coupling, 4-Beam Set Screw Style, 11 mm x 8 mm Bores, 31.8 mm OD, 38.1 mm Lengthzoom

Attributes

Key Value
Angular Misalignment3?
Axial Motion0.25 mm
B1 Max Shaft Penetration17.6 mm
B2 Max Shaft Penetration17.6 mm
Bore (B1)11 mm
bore - side 1:11 mm
bore - side 2:8 mm
Bore Dia.11mm x 8mm
Bore Tolerance+0.025 mm / -0.000 mm
bore tolerance:+.025 / -.000 mm
CategoryHardware, Fasteners, Ac.
Clearance Dia. (In.)1.125 in
Clearance Dia. (mm)28.6
Country of OriginUSA
Country of Origin (subj.United States
Description11MMX8MM ALUMINUM BEAM .
Digi-Key Part Number3188-PSMR32-11-8-A-ND
Dynamic Torque Non-Reve.2.94 Nm
Dynamic Torque Reversing1.47 Nm
FinishBright
Finish SpecificationBright, No Plating
Forged Set ScrewM6
Full Bearing Support Re.Yes
harmonization code:8483608000
Hex Wrench Size3.0 mm
ItemMotion Control Coupling
Item - Motion Control C.Motion Control Coupling
Length (L)38.1 mm
Length through Bore17.02 mm
Length through Bore (In.0.67
Length through Bore (mm)17.02
ManufacturerRuland Manufacturing
Manufacturer Product Nu.PSMR32-11-8-A
MaterialAluminum
Material - CouplingsAluminum
Material Specification7075-T651 Extruded and .
material:7075 Aluminum
Max. Angular Misalignme.3 Degrees
Max. Axial Misalignment.+/-0.01
Max. Bore (mm)11 mm
Max. Parallel Misalignm.0.015 in
Max. RPM6,000 RPM
Max. Temp.225 Degrees F
Max. Temp. Range (F)225 Degrees
maximum angular misalig.3
maximum parallel misali.0.38 mm
maximum rpm:6000 rpm
Maximum Speed6,000 RPM
MfrRuland Manufacturing
Min. Bore (mm)8
Moment of Inertia9.948 x10
Note 1Torque ratings are at m.
Note 2Performance ratings are.
Note 3Torque ratings for the .
number of beams:Four Beam
Number of Screws4 ea
operating temperature:-40 to +225
Outer Diameter (OD)31.8 mm
Outside Dia.31.8 mm
Outside Dia. (In.)1.25
Outside Dia. (mm)31.8 mm
outside diameter:31.8 mm
Overall Length38.1 mm
Overall Length (In.)1.5
Overall Length (mm)38.1
overall length:38.1 mm
PackageBag
Parallel Misalignment0.38 mm
Product StatusActive
Rated Torque52 in-lb
Recommended Shaft Toler.+0.000 mm / -0.013 mm
screw clamp type:Set Screw Type
Screw FinishBlack Oxide
Screw MaterialAlloy Steel
Screw SizeM6
Screw Size (mm)M6
screw thread size:M6
Screw TypeSet Screw
Seating Torque7.2 Nm
Series-
Setscrew Location2 (120 Degrees )
Shaft Locking Type - Co.1 Piece Set Screw
SizePSMR32
Small Bore (B2)8 mm
Specifications1.250" (31.80mm) Outer .
Static Torque5.88 Nm
Style4-Beam Set Screw
Tariff Code8483.60.8000
Temperature-40?F to 225?F (-40?C t.
Torque (In.-Lbs.)52
Torsional Stiffness1.10 Deg/Nm
Torsional Stiffness (De.0.124
torsional stiffness:1.10 in-lb/deg
TypeBeam Coupling
UNSPC31163003
UPC634529033623
Weight (lbs)0.152200
weight:0.217 lb
Zero-Backlash?Yes

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomZoroG825544162.01In Stock10Ruland0.5562.0 @ 1
thumbzoommotionindustries.com0480615767.561In StockRuland Manufacturing Co Inc67.56 @ 1
thumbzoomRulandPSMR32-11-8-A71.41In StockRuland0.152271.4 @ 1
Grainger30VD73106.51In Stock10RULAND MANUFACTURING106.5 @ 1
thumbzoomDigi-Key13605917109.45110Ruland Manufacturing109.45 @ 1
thumbzoomsustainablesupply.comC1645706112.651In StockRuland Manufacturing0.55112.65 @ 1
thumbzoomRaptor SuppliesAH2ZKQ137.1658861In StockRULAND MANUFACTURING137.165886 @ 1
