Ruland SC-34-F

B0063KV4JW

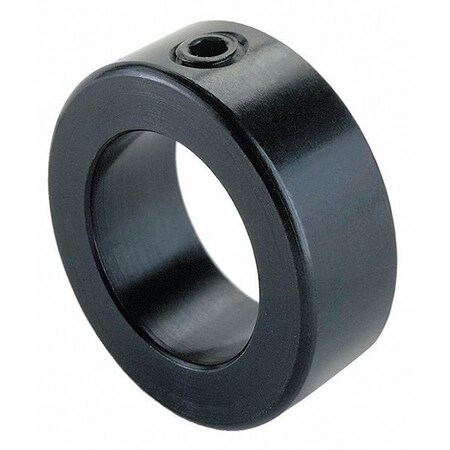

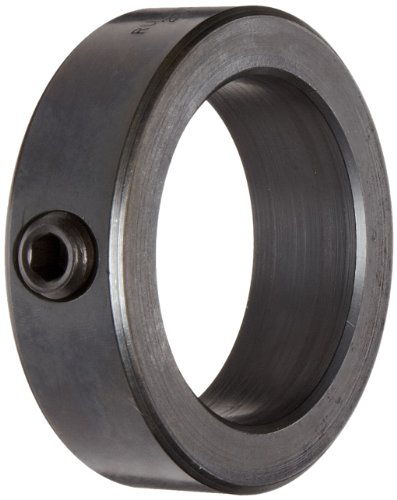

Ruland SC-34-F Set Screw Shaft Collar, Black Oxide Steel, 2.125" Bore, 3" OD, 7/8" Width

Ruland SC-34-F Set Screw Shaft Collar, Black Oxide Steel, 2.125" Bore, 3" OD, 7/8" Widthzoom

Attributes

Key Value
Bore (B1)2.1250 in
Bore Dia.2 1/8 in
Bore Tolerance+0.0030 in / +0.0005 in
Bore Type - CollarsPlain Bore
CategoryHardware, Fasteners, Ac.
Clearance Dia.3.0 in
Collar StyleSet Screw
Country of OriginUSA
Country of Origin (subj.United States
Dimension TypeInch
Finish SpecificationHot Process Black Oxide.
Forged Set Screw1/2-13 x 1/2
Hex Wrench Size1/4 in
ItemShaft Collar
Item - Shaft CollarsShaft Collar
ManufacturerRuland Manufacturing
MaterialBlack Oxide 1215 Lead F.
Material - CollarsBlack Oxide 1215 Lead F.
Material Specification1215 Carbon Steel Bar
MfrRuland Manufacturing
Note 1This product has been d.
Note 2Performance ratings are.
Number of Pieces1
Number of Screws1 ea
Operating Temp. Range-40 Degrees to 350 Degr.
Outer Diameter (OD)3 in
Outside Dia.3 in
PackageBag
Product StatusActive
Recommended Shaft Toler.+0.0000 in / -0.0005 in
Screw FinishBlack Oxide
Screw MaterialAlloy Steel
Screw Size1/2"-13 x 1/2"
Seating Torque620 lb-in
Series-
Shaft Locking Type - Co.1 Piece Set Screw
Specifications3.000" (76.20mm) Outer .
System of MeasurementInch
Tariff Code8483.60.8000
Temperature-40?F to 350?F (-40?C t.
TypeShaft Collar
UPC634529019269
Weight (lbs)0.849800
Width7/8 in
Width (W)0.875 in
Width Tolerance+0.003 in / -0.010 in

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomZoroG814845417.631In Stock10Ruland Manufacturing0.8817.63 @ 1
thumbzoomsustainablesupply.comC164638239.721In StockRuland Manufacturing0.8839.72 @ 1
thumbzoomRulandSC-34-F46.511In StockRuland0.849846.51 @ 1
Digi-Key1361290458.511In StockRuland Manufacturing58.51 @ 1
