Ruland SPX-8-6-SS

B0060LVCVY

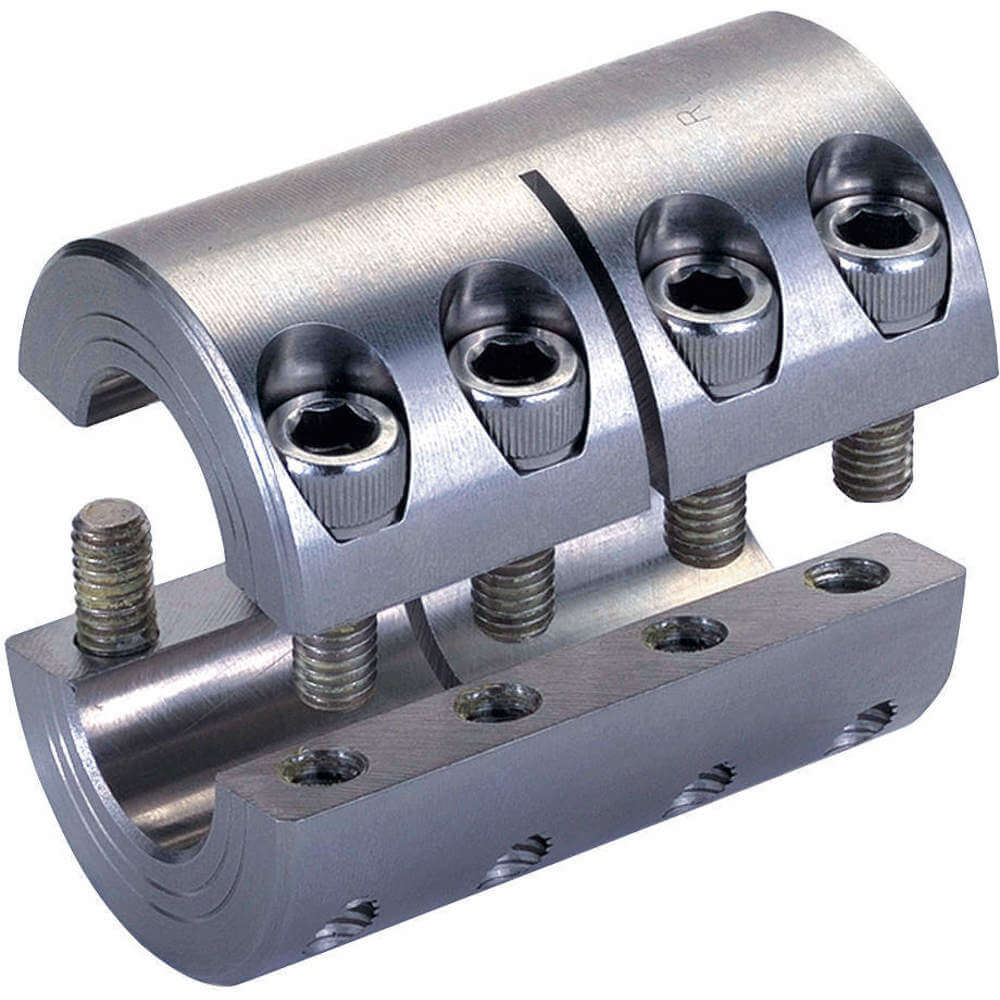

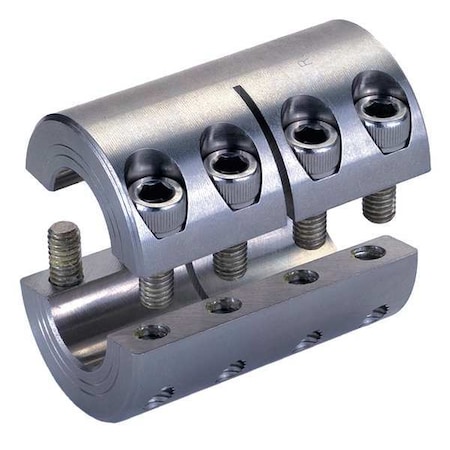

Ruland SPX-8-6-SS Two-Piece Clamping Rigid Coupling, Stainless Steel, 1/2" Bore A Diameter, 3/8" Bore B Diameter, 1-1/8" OD, 1-3/4" Length

Ruland SPX-8-6-SS Two-Piece Clamping Rigid Coupling, Stainless Steel, 1/2" Bore A Diameter, 3/8" Bore B Diameter, 1-1/8" OD, 1-3/4" Lengthzoom

Attributes

Key Value
angular misalignment:0
ApplicationFor Applications where .
axial motion:0.000 in
B1 Max Shaft Penetration0.875 in
B2 Max Shaft Penetration0.875 in
Balanced DesignYes
Bore (B1)0.5000 in
bore - side 1:.5000 in
bore - side 2:.3750 in
Bore Dia.1/2 in x 3/8 in
Bore Tolerance+0.0020 in / +0.0005 in
bore tolerance:+.002 / +.0005 in
CategoryHardware, Fasteners, Ac.
Clearance Dia.1.328 in
Clearance Dia. (In.)1.328
Clearance Diameter (C) .1.328 in
Country of OriginUSA
Country of Origin (subj.United States
coupling material:303 Stainless Steel
coupling type:Two-Piece Clamp Without.
Description1/2"X3/8" STAINLESS RIG.
DesignFour Vibration Resistan.
Digi-Key Part Number3188-SPX-8-6-SS-ND
FinishBright
finish / coating:Bright
Finish SpecificationBright, No Plating
Forged Clamp Screw#8-32
Full Bearing Support Re.No
harmonization code:8483608000
Hex Wrench Size9/64 in
ItemRigid Shaft Coupling
Item - Rigid Shaft Coup.Rigid Shaft Coupling
Length (L)1 3/4 in
Machined FromBar Stock
ManufacturerRuland Manufacturing
Manufacturer Product Nu.SPX-8-6-SS
MaterialStainless Steel
Material - CouplingsStainless Steel
Material SpecificationType 303 Austenitic, No.
Max. Torque275 in-lb
Max. Torque (In.-Lbs.)275
maximum rpm:4000 RPM
Maximum Speed4,000 RPM
MfrRuland Manufacturing
Moment of Inertia0.0709 lb-in
Note 1Performance ratings are.
Number of Screws8 ea
Nypatch? Anti-Vibration.Yes
Outer Diameter (OD)1 1/8 in
Outside Dia.1 1/8 in
outside diameter:1.1250 in
Overall Length1 3/4 in
overall length:1.7500 in
PackageBag
parallel misalignment:0.000 in
Product StatusActive
ProvidesExtra Holding Power for.
Rated Torque275 in-lb
Recommended Gap0.063 in
Recommended Shaft Toler.+0.0000 in / -0.0005 in
Screw FinishBright
screw finish:Bright
Screw Location (R)0.430 in
screw location:0.430 in
Screw Material18-8 300 Series Stainle.
Screw Size#8-32
Screw Size (In.)#8-32
screw thread size:#8-32
screw type / material:18-8 300 Series Stainle.
Seating Torque28 lb-in
Series-
series:SPX
Shaft Locking Type - Co.2 Piece Clamp
Small Bore (B2)0.3750 in
Specifications1.125" (28.58mm) Outer .
StandardsREACH Compliant, RoHS2 .
System of MeasurementInch
Tariff Code8483.60.8000
Temperature-40?F to 350?F (-40?C t.
temperature rating:-40 to +350
TypeRigid Coupling, Two Pie.
UNSPC31163009
UPC634529026502
UPC Code63452902650
Weight (lbs)0.385000
weight:0.391 lb
With Keyway / Without K.Without Keyway
Zero-Backlash?Yes

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Applied Industrial10207170994.031In StockRuland Mfg. Co., Inc.94.03 @ 1
us.rs-online.com72339457103.441In StockRuland Manufacturing103.44 @ 1
thumbzoomZoroG1130385105.01In Stock10Ruland0.38105.0 @ 1
thumbzoomcbtcompany.comSPX-8-6-SS105.441In StockRULAND MANUFACTURING105.44 @ 1
thumbzoommotionindustries.com02338184114.541In StockRuland Manufacturing Co Inc114.54 @ 1
thumbzoomAmazonSCB0060LVCVY117.271In StockRuland117.27 @ 1
thumbzoomRulandSPX-8-6-SS120.991In StockRuland0.385120.99 @ 1
thumbzoomDigi-Key13605778177.17147Ruland Manufacturing177.17 @ 1
thumbzoomRaptor SuppliesAB8XLA226.9337851In StockRULAND MANUFACTURING226.933785 @ 1
