Assembled | Yes |
Axle Dia. | 5/8 in |
Axle-Mounted Wheel Bearings | Ball Bearing |
Axle-Mounted Wheel Dia., Nose Plate Depth, Wheel Diameter | 10 in |
Axle-Mounted Wheel Type | Pneumatic |
Axle-Mounted Wheel Width, Wheel Width | 2 3/4 in |
Axle-Mounted Wheel/Tread Material | Rubber |
Brake Type | No Caster Brake |
Brand | Saftcart |
Caster/Wheel Configuration | (2) Axle-Mounted |
Caster/Wheel Mounting Location | 2-Wheel |
Colour | Green |
Compatible with Product Type | Welding Cylinders and Torches |
Current Stock | 22 |
Cylinder Orientation | Side by Side |
Deck Height | 1/2 in |
Features | Guaranteeing Smooth Travel Over Rough Terrain |
For Maximum Container Diameter, For Maximum Cylinder Diameter | 9 1/2 in |
For Surface Type | Concrete, Grass, Wood |
Frame Finish | Powder Coated |
Frame Material, Nose Plate Material | Steel |
Frame Type | Rounded Back |
Handle Height | 44 in |
Handle Type | Continuous Frame Flow-Back |
Height | 27 in |
Includes | Steel Band to Cylinder, Toolbox |
Includes Firewall, International Shipping, Non-Marking Axle-Mounted Wheels | No |
Includes Foot Assist | Without Foot Assist |
Includes Lever Pushoff | Without Lever Pushoff |
Includes Lift Ring | Without Lift Ring |
Includes Stair Climber | Without Stair Climber |

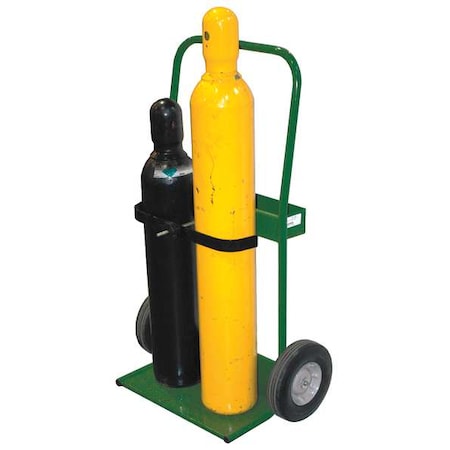

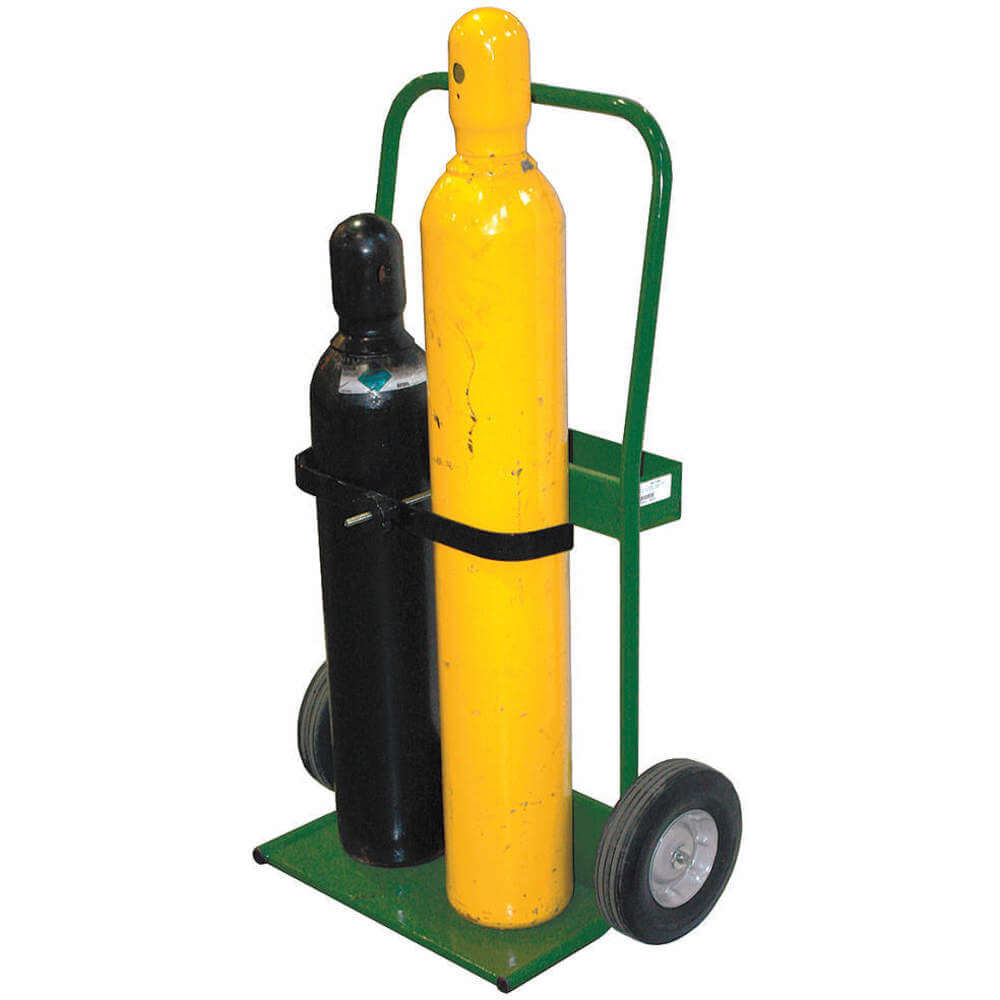

Item | Welding Cylinder Hand Truck |
Lead Time | Expected to ship in 1-2 business days |
Load Capacity | 400 lb |
Max. Tank Dia. Oxygen | 7 3/4 in |
Mpn, SKU | 820-10 |
Nose Plate Profile | Standard |
Nose Plate Thickness | 1/16 in |
Nose Plate Type | Solid Straight |
Nose Plate Width, Tool Tray Width | 19 in |
Nose Plate WxD | 10 in x 19 in |
Overall Depth | 6 1/2 in |
Overall Height, Overall Height - Cylinder Lowered, Overall Height - Cylinder Raised | 45 in |
Overall HxWxD | 45 in x 30 in x 6 1/2 in |
Overall Width | 30 in |
Securing Mechanism | Perma Clamp |
Securing Mechanism Height | 24 in |
SKU | ZO-G3369581 |
Standards | 29 CFR 1926.350(a)(10) |
SubCategory | Material Handling |
Tool Tray Height | 25 1/2 in |
UPC | 810649020518 |
Weight | 34 lb, 0.00 LBS |
Width | 22" |
