Samtec HTSW-120-09-G-D

mpnHTSW-120-09-G-D
brandname: SAMTEC
manufacturername: SAMTEC

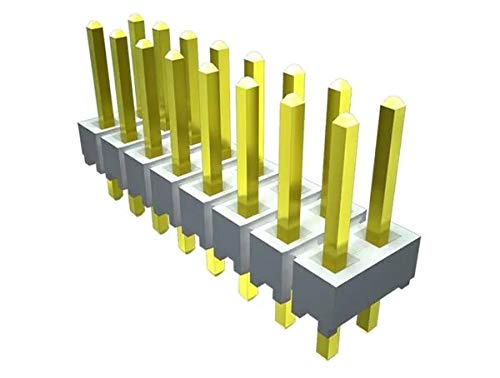

SAMTEC HTSW-120-09-G-D Header New Lot Quantity-5

SAMTEC HTSW-120-09-G-D Header New Lot Quantity-5

zoom

Brand: Samtec
PartNumber: HTSW-120-09-G-D
Model: HTSW-120-09-G-D
Manufacturer: SAMTEC
Label: SAMTEC

Attributes

Key	Value
Applications	-
Base Product Number	HTSW-120
Category	Connectors, Interconnec.
Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thicknes.	10.0?in (0.25?m)
Contact Finish Thicknes.	3.00?in (0.076?m)
Contact Length - Mating	0.230" (5.84mm)
Contact Length - Post	0.400" (10.16mm)
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	Varies by Wire Gauge
Fastening Type	Push-Pull
Features	-
Ingress Protection	-
Insulation Color	Natural
Insulation Height	0.100" (2.54mm)
Insulation Material	Liquid Crystal Polymer .
Mated Stacking Heights	-
Material Flammability R.	UL94 V-0
Mfr	Samtec Inc.
Mounting Type	Through Hole
Number of Positions	40
Number of Positions Loa.	All
Number of Rows	2
Operating Temperature	-55?C ~ 125?C
Overall Contact Length	0.730" (18.54mm)
Package	Bulk
Part Status	Active
Pitch - Mating	0.100" (2.54mm)
Row Spacing - Mating	0.100" (2.54mm)
Series	HTSW
Shrouding	Unshrouded
Style	Board to Board or Cable
Termination	Solder
Voltage Rating	-

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	Samtec	HTSW-120-09-G-D	4.43	1	153		Samtec		4.43 @ 1
	Newark	85T0833	5.64	1	222		SAMTEC		5.64 @ 1
	Digi-Key	8078076	6.65	1000	In Stock		Samtec Inc.		6.65 @ 1
