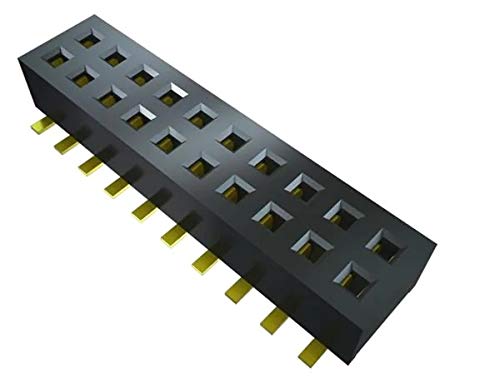

Samtec CLP-112-02-G-D-A

mpnCLP-112-02-G-D-A
brandname: Samtec Inc.
manufacturername: Samtec Inc.

SAMTEC CLP-112-02-G-D-A Connector New Lot Quantity-4

SAMTEC CLP-112-02-G-D-A Connector New Lot Quantity-4

zoom

Brand: Samtec
PartNumber: CLP-112-02-G-D-A
Model: CLP-112-02-G-D-A
Manufacturer: SAMTEC
Label: SAMTEC

Attributes

Key	Value
Applications	-
Category	Connectors, Interconnec.
Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thicknes.	10.0?in (0.25?m)
Contact Finish Thicknes.	3.90?in (0.099?m)
Contact Length - Post	-
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Female Socket
Current Rating (Amps)	3.3A per Contact
Fastening Type	Push-Pull
Features	Board Guide
Ingress Protection	-
Insulation Color	Black
Insulation Height	0.084"" (2.14mm)
Insulation Material	Liquid Crystal Polymer .
Mated Stacking Heights	-
Material Flammability R.	UL94 V-0
Mfr	Samtec Inc.
Mounting Type	Surface Mount
Number of Positions	24
Number of Positions Loa.	All
Number of Rows	2
Operating Temperature	-55?C ~ 125?C
Package	Tube
Part Status	Active
Pitch - Mating	0.050"" (1.27mm)
Row Spacing - Mating	0.050"" (1.27mm)
Series	CLP
Style	Board to Board
Termination	Solder
Voltage Rating	240VAC, 330VDC

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	Digi-Key	2745110	4.66405	37	In Stock		Samtec Inc.		4.66405 @ 37
	Samtec	CLP-112-02-G-D-A	4.7	1	In Stock		Samtec		4.7 @ 1
	Newark	87P7630	7.4	1	In Stock		SAMTEC		7.4 @ 1
