Samtec FTSH-120-01-L-DV-K-P-TR

B0813W6R14

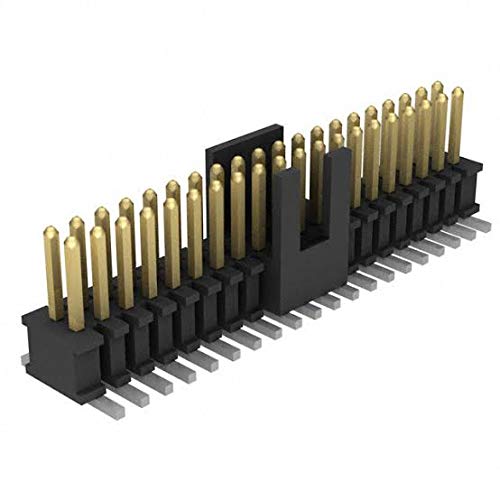

SAMTEC FTSH-120-01-L-DV-K-P-TR Header New Lot Quantity-4

SAMTEC FTSH-120-01-L-DV-K-P-TR Header New Lot Quantity-4zoom

Attributes

Key Value
Applications-
Base Product NumberFTSH-120
Body OrientationStraight
BrandSamtec
CategoryConnectors, Interconnec.
Connector SystemWire to Board
Connector TypeHeader, Cuttable
Contact Finish - MatingGold
Contact Finish - PostTin
Contact Finish Thicknes.10.0, 10.0?in (0.25?m)
Contact Finish Thicknes.-
Contact Length - Mating0.120" (3.05mm)
Contact Length - Post-
Contact MaterialPhosphor Bronze
Contact PlatingGold
Contact ShapeSquare
Contact TypeMale Pin
Current Rating3.4A
Current Rating (Amps)3.4A per Contact
Fastening TypePush-Pull
FeaturesKeying Shroud, Pick and.
Ingress Protection-
Insulation ColorBlack
Insulation Height0.099" (2.51mm)
Insulation MaterialLiquid Crystal Polymer .
Lead Free Status / RoHS.RoHS Compliant
Manufacturer Part NumberFTSH-120-01-L-DV-K-P-TR
Mated Stacking Heights-
Material Flammability R.UL94 V-0
MfrSamtec Inc.
Mounting TypeThrough Hole, Surface M.
Number Of Contacts40
Number of Positions40
Number of Positions Loa.All
Number Of Rows2
Number of Rows2
Operating Temperature-55, -55?C ~ 125?C
Overall Contact Length-
PackageTape & Reel (TR)
PackagingReel
Pitch1.27mm
Pitch - Mating0.050" (1.27mm)
Product StatusActive
Row Spacing - Mating0.050" (1.27mm)
SeriesFTSH
Shrouded/UnshroudedUnshrouded
ShroudingUnshrouded, Shrouded
Standard Package450
StyleBoard to Board or Cable
TerminationSolder
Termination MethodSolder
Voltage Rating-

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomi-componentsFTSH-120-01-L-DV-K-P-TR1.82145019793Samtec, Inc.1.821 @ 450
Onlinecomponents.comFTSH-120-01-L-DV-K-P-TR4.381375SAMTEC4.38 @ 1
thumbzoomNewark01R71165.61140SAMTEC5.61 @ 1
iodPartsFTSH-120-01-L-DV-K-P-TR6.258450450Samtec6.258 @ 450
SamtecFTSH-120-01-L-DV-K-P-TR6.2711500Samtec6.27 @ 1
Digi-Key26422798.1411514Samtec Inc.8.14 @ 1
thumbzoomRS Delivers180-28219.972195Samtec9.972 @ 1
thumbzoomRadwellFTSH-120-01-L-DV-K-P-TR12.0125In StockSAMTEC12.0 @ 125
