- mpnFN394-1-05-11
- brandname: Schaffner
- manufacturername: Schaffner

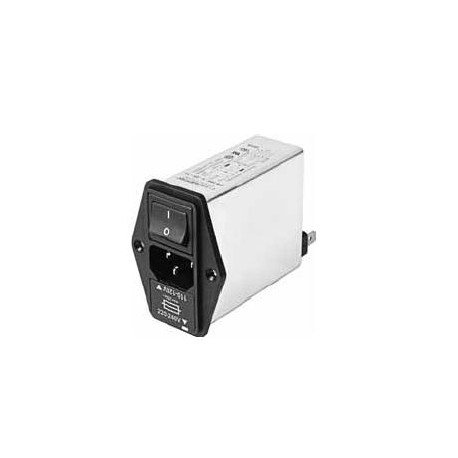

SCHAFFNER FN394-1-05-11 FILTER, EMI, 1.2A, 250VAC, QC
- PartNumber: FN394-1-05-11-SCHAFFNER
- Model: FN394-1-05-11-SCHAFFNER
- PackageQuantity: 1
- Binding: Electronics
- Manufacturer: SCHAFFNER
- Label: SCHAFFNER
Attributes
| Key | Value |
|---|
| Accomodates a Fuse | Yes (Fuse Not Included) |
| Alternate Part No. | 631-FN394-1-05-11 |
| Approval Agency | CSA, ENEC, UL |
| Base Product Number | FN394 |
| Brand | Schaffner |
| Category | Connectors, Interconnec. |
| Connector Style | IEC 320-C14 |
| Connector Type | IEC Inlet Filter, Recep. |
| Current Rating | 1 A |
| Current Rating - Applia. | - |
| Current Rating - Circui. | - |
| Current Rating - Filter | 1A |
| Description | PWR ENT MOD RCPT IEC320. |
| Detailed Description | Power Entry Connector R. |
| Digi-Key Part Number | 817-2697-ND |
| Features | Front or Rear Side Moun. |
| Filter Type | IEC Inlet Filters, Filt. |
| Filtered | Yes |
| Fuse Holder, Drawer | Fuse Holder, Twin Fused |
| Fused | Yes |
| Gender | Male |
| Ingress Protection | IP40 |
| Leakage Current | 560 ?A |
| Manufacturer | Schaffner, Schaffner EM. |
| Manufacturer Part No. | FN394-1-05-11 |
| Manufacturer Product Nu. | FN394-1-05-11 |
| Manufacturer Standard L. | 16 Weeks |
| Material Flammability R. | UL94 V-2 |
| Mfr | Schaffner EMC Inc. |
| Mounting Style | Panel, Screw |
| Mounting Type | Panel Mount, Panel Moun. |
| Number of Poles | 2 |
| Number of Positions | 3 |
| Operating Temperature R. | - 25 C to + 85 C |
| Package | Tray |
| Panel Cutout Dimensions | Rectangular - 29.00mm x. |
| Panel Thickness | - |
| Product | Inlets |
| Product Category | AC Power Entry Modules |
| Product Status | Active |
| Protection | 2 (Fuse), 2 (Switch) |
| Schaffner Part Number | 284-391 |
| Series | FN 390, FN 390 Series |
| Switch Features | Switch On-Off |
| Switch Function | Switched |
| Termination | Quick Connect - 0.250" . |
| Termination Style | Quick Connect |
| Type | Filter ; Fuse ; Switch |
| Version | Standard |
| Voltage Rating | 250 VAC, 250 V |
| Voltage Rating - Applia. | - |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
| Onlinecomponents.com | FN394-1-05-11 | 26.62 | 1 | 4 | | SCHAFFNER EMC | | 26.62 @ 1 |
 | Newark | 11B3374 | 43.7 | 20 | In Stock | | SCHAFFNER | | 43.7 @ 10 |
 | Digi-Key | 1997859 | 45.16 | 1 | 7 | | Schaffner EMC Inc. | | 45.16 @ 1 |
| us.rs-online.com | 70028073 | 45.61 | 1 | 60 | | Schaffner | | 45.61 @ 1 |
 | swatee.com | FN394-1-05-11 | 51.18 | 1 | 2 | | Schaffner | | 51.18 @ 1 |
