- mpnF10 MER 619 CEN
- brandname: Schlage
- manufacturername: Schlage

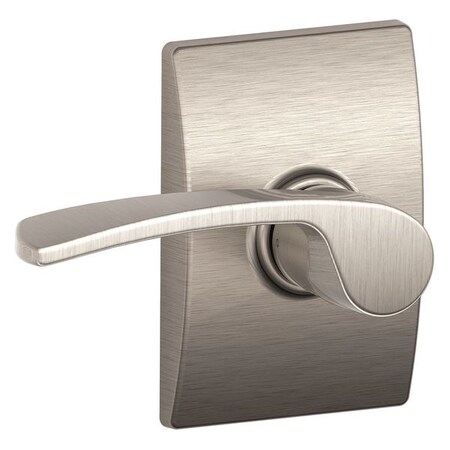

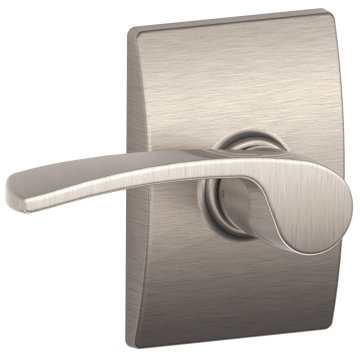

SCHLAGE F10MER619CEN Century Collection Merano Passage Lever, Satin Nickel
- Brand: SCHLAGE
- PartNumber: F10-MER-CEN
- Model: F10 MER 619 CEN
- Color: Satin Nickel
- Size: Century
- PackageQuantity: 1
- Binding: Tools & Home Improvement
- Manufacturer: Schlage
- Label: Schlage
Attributes
| Key | Value |
|---|
| ADA Compliant | YES, No |
| ANSI Function | F75 |
| Application | Residential Single and . |
| Backset | 2-3/8 in or 2-3/4 in, 2. |
| Backset Size | Adjustable |
| Bolt Throw | 1/2 Inch |
| Bore Size | 2.1250 |
| Box Dimensions (L x W x. | 3.25x6x7" |
| Box Height | 3.2500 |
| Box Length | 7.0000 |
| Box Width | 6.0000 |
| Brand | Schlage |
| Color | Satin Nickel Plated Cle. |
| Color Code | 619/US15 |
| Commercial/Residential | Residential |
| Country of Origin | MEXICO |
| Design | Merano Lever With Centu. |
| Door Cross Bore | 2.125 Inch |
| Door Edge Bore | 1 Inch |
| Door Handing | Universal/Reversible |
| Door Preparation | Cross Bore 2-1/8"; Edge. |
| Door Thickness | 1.38 - 1.75 in., 1-3/8". |
| Electrical/Mechanical | Mechanical |
| Faceplate Dimension | 1" x 2-1/4" |
| Features | Non-Locking Ideal For C. |
| Finish | Satin Nickel |
| Finish Description | Satin Nickel |
| Finish Family | Satin Nickel |
| For Door Thickness | 1-3/8" to 1-3/4" |
| For Use With | Residential/Light Comme. |
| Function | 10-Hall/Closet |
| Function Description | Latch retracted by knob. |
| Function Family | Passage/Hall/Closet |
| Grade | ANSI/BHMA Grade 2, 2 |
| Handing | Reversible |
| Handle Material | Zinc |
| Handle Type | Lever |
| Height | 3.250 |
| Included Components | Passage levers, roses, . |
| Includes | Latch, Mounting Hardwar. |
| Item | Door Lever Lockset |
| Latch Type | Spring |
| Length | 7.000 |
| Lever Style | MER-Merano |
| Lever Style Family | Straight Curved Lever |
| Ligature Resistant | No |
| Lockset Finish | Satin Nickel |
| Lockset Function | Passage |
| Lockset Grade | 2 |
| Lockset Handle Type | Lever |
| Lockset Performance Str. | Light Duty |
| Manufacturer Parent | Allegion |
| Mortise / Cylindrical | Cylindrical |
| Mortise/Cylindrical | Cylindrical |
| Pack Size | 1 |
| Package Quantity | 1 |
| Product Length | 5-1/8 Inch |
| Product Material | Zinc |
| Product Projection | 2-5/8 Inch |
| Product Type | Cylindrical Lock |
| Projection | 2.6250 |
| Required Door Thickness | 1-3/8 in to 1-3/4 in |
| Rose/Escutcheon Trim | CEN-Century |
| Security/ANSI Grade | Grade 2 |
| Series | F |
| Size Measure | IN |
| Standards | ANSI/BHMA A156.39-2015;. |
| Strike | Full Lip 2-1/4 Inch, Ra. |
| Strike Dim. | 1-5/8 in x 2-1/4 in |
| Strike Name | Round Corner Full Lip |
| Strike Number | 10-027 |
| Strike Size | 1-5/8 x 2-1/4 Inch |
| Strike Type | Round Corner Full Lip S. |
| Style | Lever, F Merano |
| Sub-Series | F10-MER-CEN |
| UNSPSC | 46171503, 46171520 |
| Visual Indicator Message | No Message |
| Warranty | Limited Lifetime Mechan. |
| Weight | 1.550 |
| Weight Measure | LB |
| Width | 6.000 |
