- mpnF51A FLA 716 BRK
- brandname: Schlage
- manufacturername: Schlage

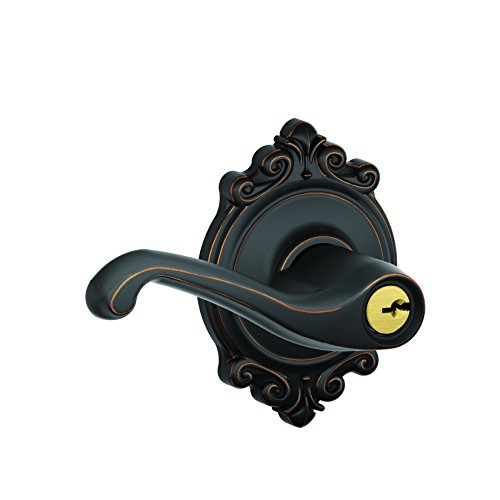

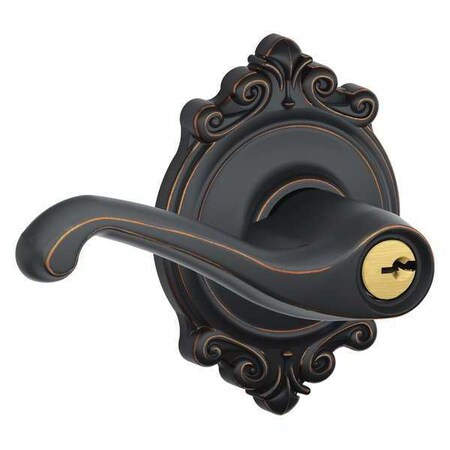

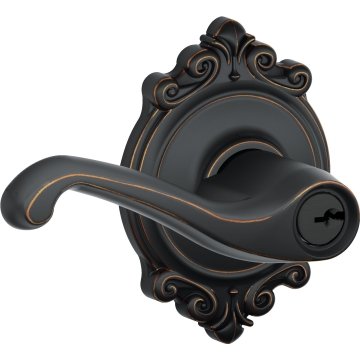

Schlage F51A FLA 716 BRK F-Series Keyed Entry Lock, Zinc
- Brand: SCHLAGE
- PartNumber: F51A FLA 716 BRK
- Model: F51A FLA 716 BRK
- Color: Bronze,Rose
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: Schlage Lock Company
- Label: Schlage Lock Company
Attributes
| Key | Value |
|---|
| ADA Compliant | YES, No |
| Application | Residential; Standard D. |
| Backset | 2-3/8 in or 2-3/4 in, 2. |
| Backset Size | Adjustable |
| Bolt Throw | 1/2 Inch |
| Bolt Type | Deadlatching |
| Bore Size | 2.1250 |
| Box Dimensions (L x W x. | 3.25x6x7" |
| Box Height | 3.2500 |
| Box Length | 7.0000 |
| Box Width | 6.0000 |
| Brand | Schlage |
| Color | Antique Bronze |
| Color Code | 643E/US11/716 |
| Commercial/Residential | Residential |
| Country of Origin | Mexico |
| Country of Origin (subj. | Mexico |
| Cylinder Core Type | Conventional |
| Cylinder Type | Conventional Cylinder |
| Design | Flair Lever With BROOKS. |
| Door Cross Bore | 2.125 Inch |
| Door Edge Bore | 1 Inch |
| Door Preparation | Cross Bore: 2-1/8"; Edg. |
| Door Thickness | 1.38 - 1.75 in., 1-3/8". |
| Electrical/Mechanical | Mechanical |
| Faceplate Dimension | 1" x 2-1/4" |
| Features | Highest Industry Rating. |
| Finish | Aged Bronze |
| Finish Description | Aged Bronze |
| Finish Family | Antique Bronze |
| Fire Rated | 3 hr. |
| For Door Thickness | 1-3/8" to 1-3/4" |
| For Use With | Residential/Light Comme. |
| Function | 51A-Keyed Entry |
| Function Family | Entry/Entrance/Office |
| Grade | ANSI/BHMA Grade 2 |
| Handing | Reversible |
| Handle Material | Brass |
| Handle Type | Lever |
| Height | 3.250 |
| Included Components | Keyed Entry Levers; Ros. |
| Includes | Latch, Mounting Hardwar. |
| Item | Door Lever Lockset |
| Key Material | Brass |
| Key Type | Different |
| Keyblank Grouping | SCHR-C-5-1 |
| Keying | Keyed Different, Keyed |
| Keying Charges | Residential-Conventional |
| Keyway | Schlage C |
| Keyway Type | Schlage SC1 |
| Latch Type | Deadlatch |
| Length | 7.000 |
| Lever Style | FLA-Flair |
| Lever Style Family | Wave Lever |
| Ligature Resistant | No |
| Location Type | Commercial, Residential |
| Lockset Finish | Antique Bronze |
| Lockset Fire Rating | 3 hr |
| Lockset Function | Entry, Entrance |
| Lockset Grade | 2 |
| Lockset Handle Type | Lever |
| Lockset Performance Str. | Light Duty |
| Manufacturer Parent | Allegion |
| Mortise / Cylindrical | Cylindrical |
| Mortise/Cylindrical | Cylindrical |
| Number of Keys | 2 |
| Number of Pins | 5 |
| Package Quantity | 1 |
| Product Length | 5 Inches |
| Product Material | Zinc |
| Product Projection | 2.7188 Inch |
| Product Type | Cylindrical Lock |
| Product Width | 2.44 in. |
| Projection | 2.7188 |
| Required Door Thickness | 1-3/8 in to 1-3/4 in |
| Rose/Escutcheon Trim | BRK-BROOKSHIRE |
| Security/ANSI Grade | Grade AAA |
| Series | Flair F, F |
| Size Measure | IN |
| Standards | ANSI/BHMA A156.2-2011; . |
| Strike | Full Lip 2-1/4 Inch, Ra. |
| Strike Dim. | 1-5/8 in x 2-1/4 in |
| Strike Size | 1-5/8" x 2-1/4" |
| Strike Type | Round Corner Full Lip S. |
| Style | Lever, F Flair/BROOKSHI. |
| Sub-Series | F51A-FLA-BRK |
| UNSPSC | 46171503 |
| UPC | 043156428984 |
| UPC Code | 43156428984 |
| Visual Indicator Message | No Message |
| Warranty | Lifetime Limited Mechan. |
| Weight | 1.550 |
| Weight Measure | LB |
| Width | 6.000 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
| Home Depot | 205339317 | 66.38 | 1 | In Stock | | Schlage | | 66.38 @ 1 |
| Life and Home | 43030079 | 94.15 | 1 | In Stock | | Schlage | | 94.15 @ 1 |
 | Zoro | G5072770 | 94.41 | 1 | In Stock | 15 | Schlage | 2.0 | 94.41 @ 1 |
 | HD Supply | 920114 | 107.74 | 1 | In Stock | | Schlage | 1.55 | 107.74 @ 1 |
 | DK Hardware | F51A FLA 716 BRK | 260.75 | 1 | In Stock | | Schlage Residential | | 260.75 @ 1 |
