SCHLAGE A10S ORB 613 11-068 10-001

mpnA10S ORB 613
brandname: Schlage Commercial
manufacturername: Schlage Commercial

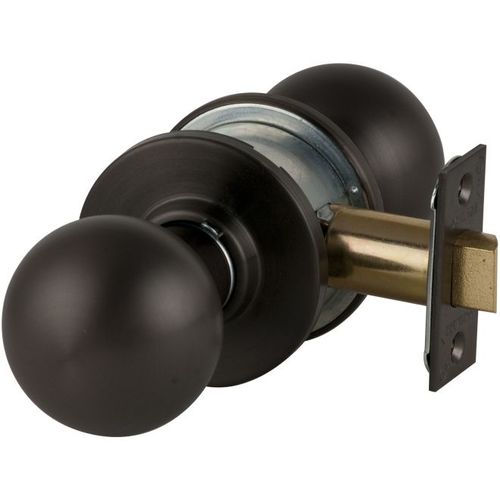

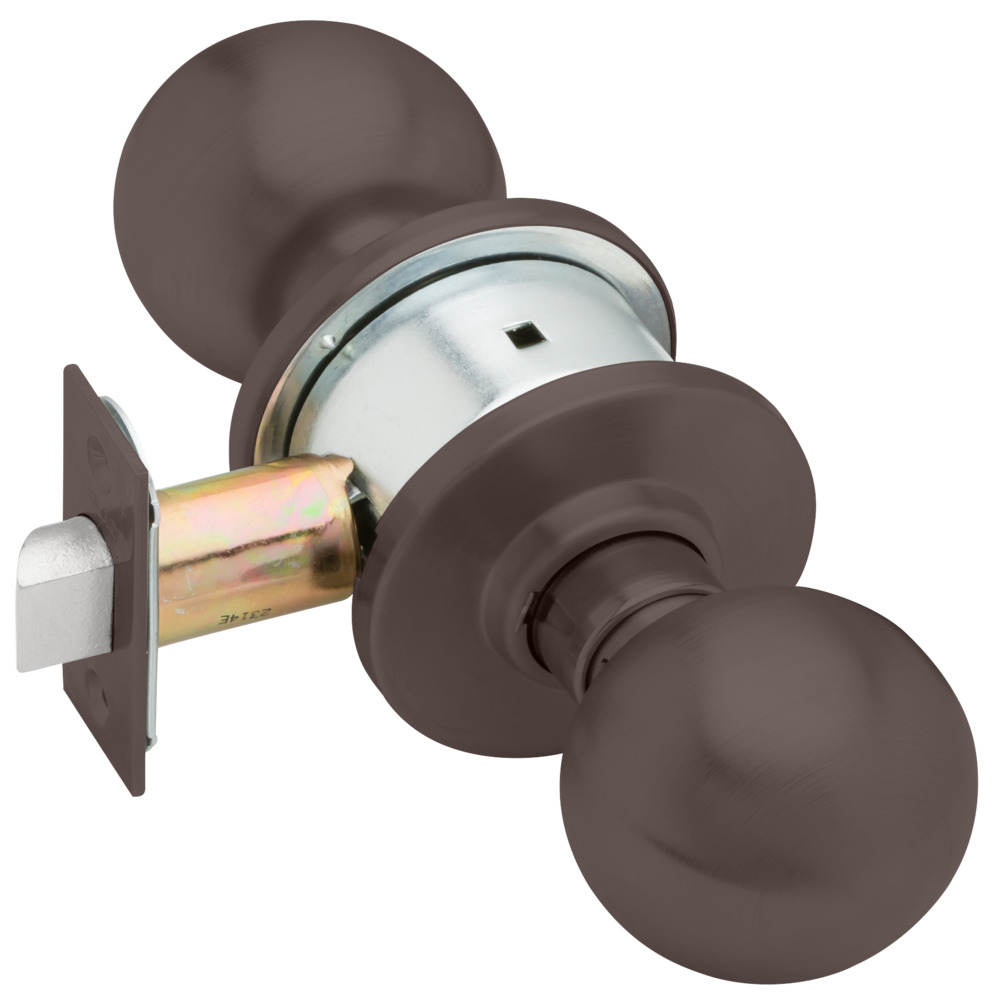

Schlage A10S ORB 613 Series A Grade 2 Cylindrical Lock, Passage Function, Keyless, Orbit Design, Oil Rubbed Bronze Finish

Schlage A10S ORB 613 Series A Grade 2 Cylindrical Lock, Passage Function, Keyless, Orbit Design, Oil Rubbed Bronze Finish

zoom

Brand: SCHLAGE
PartNumber: A10S ORB 613 11-068 10-001
Model: A10S ORB 613
Color: Oil-Rubbed Bronze
Size: Passage Function, Oil Rubbed Bronze Finish
PackageQuantity: 1
Binding: Misc.
Manufacturer: Schlage
Label: Schlage

Attributes

Key	Value
ADA Approved	False
ADA Compliant	No
ANSI Function	F75
Application	Schools; Hospitals; Hot.
Backset	2-3/8 Inch, 1 x 2-1/4 I.
Bolt Protection	1/2 In.
Color	Dark Oxidized Satin Bro.
Color Code	613/US10B
Country of Origin (subj.	Mexico
Design	Orbit
Door Thickness	1 3/8" - 1 7/8"
Dust Box	Plastic
Features	Cold-Rolled Steel, and .
Finish	Oil Rubbed Dark Bronze
Finish Description	Oil Rubbed Dark Bronze
Finish Family	Dark Bronze
Front Material	Steel
Front Size	1" x 2-1/4"
Function	10-Passage
Function Description	Latch retracted by knob.
Function Family	Passage/Hall/Closet
Grade	ANSI/BHMA Grade 2
Handing	Reversible
Handle Type	Knob
Knob Diameter	2.1250
Knob style	ORB-Orbit
Knob Style Family	Ball Knob
Knob/Lever Size	2-1/8 Inch
Latch Backset Dim	2-3/8 In.
Latch Bolt Material	Brass
Latch Corner	Square
Latch Number	11-068
Latch Throw	1/2 Inch
Latch Type	Spring Latch
Lever/Knob Design	ORB - Orbit
Lock Face Size	2-1/4 In. x 1 In.
Manufacturer Parent	Allegion
Package Qty	1
Product Projection	2-7/8 Inch
Product Type	Cylindrical Lock
Projection	2.8750
Rose Diameter	2-9/16 Inch
Rose/Escutcheon Design	TUL - Tulip
Rose/Escutcheon Trim	Round Rose
Standards	Meets or Exceeds A156.2.
Strike	T-Strike, 1-1/8 Inch x .
Strike Height	2-3/4 In.
Strike Lip	1-1/8 Inch
Strike Number	10-001
Strike Size	1-1/8" x 2-3/4"
Strike Type	T-Strike
Strike Width	1-1/8 In.
Sub-Series	CL_Cylindrical_Locks_sc.
Thickness	1-3/4 In.
Type	Orbit Lock with 11116 L.
Warranty	3 Year Limited

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	thebuilderssupply.com	SCH_A10SORB613	112.32	1	493		Schlage		112.32 @ 1
	absupply.net	SCHLAGE A10S ORB 613	127.96	1	In Stock		Schlage		127.96 @ 1
	Zoro	G706132422	141.09	1	In Stock		Schlage		141.09 @ 1
	DK Hardware	A10S ORB 613	164.74	1	In Stock		Schlage Commercial		164.74 @ 1
	Home Depot	100027595	9999.0	1	In Stock		Schlage		9999.0 @ 1
