MAGNECRAFT 750XBXC-12D

B00DED62N4

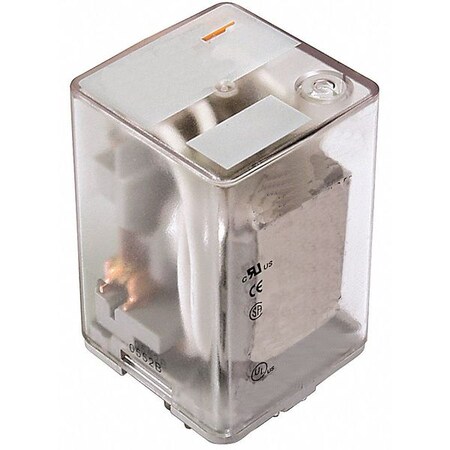

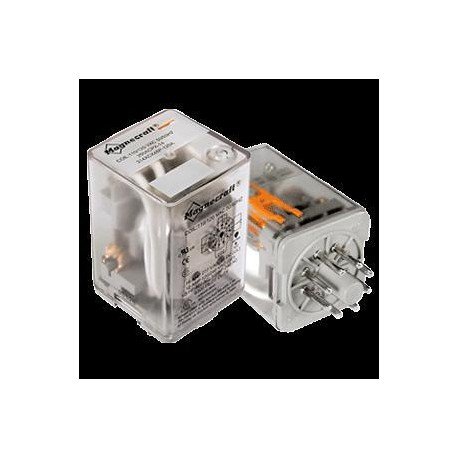

MAGNECRAFT 750XBXC-12D INTERFACE RELAY, DPDT, 12VDC, 120 OHM

MAGNECRAFT 750XBXC-12D INTERFACE RELAY, DPDT, 12VDC, 120 OHMzoom

Attributes

Key Value
AC Contact Rating - Rel.16A @ 277V
Alternate Mfr Part Numb.P507197E
Base TypeOctal
Base Type - Plug In Rel.Octal
Body Depth - Relay1.40 in
Body Height - Relay2.10 in
Body Width - Relay1.40 in
Coil Volts12VDC
Contact FormDPDT
Contact Form - RelayDPDT
Contact MaterialSilver Alloy
Contact Rating16A @ 277VAC/28VDC
Control Voltage12 VDC
Country of Origin (subj.Unknown
Current Rating16 A
DC Contact Rating - Rel.16A @ 28V
FeaturesGold Flashed Contacts
FunctionGeneral Purpose
HP @ 120V1/3
HP @ 240V0.5
ItemPlug-In Relay
Mounting TypeSocket
Number of Pins8 Pin
Number of Pins - Relay8
Pins8
Power Consumption - Rel.3.0W
Product Header750 Series Octal Relay
Push To TestNo
Relay TypeElectromechanical
Series750H Hazardous Location.
SocketMfr. No. 70-464-1, 70-7.
Socket CodeA
StandardsUL, CSA, CE, RoHS, UL L.
Status IndicatorMechanical Flag
TerminationPlug-In Octal
Voltage Rating300 VAC

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
us.rs-online.com7018511410.651In StockSchneider Electric/Legacy Relays10.65 @ 1
thumbzoomZoroG248161311.591In Stock26Schneider Electric11.59 @ 1
Relay Specialties750XBXC-12D13.61In StockMagnecraft13.6 @ 1
Carlton-Bates7801249211418.251In StockMagnecraft18.25 @ 1
thumbzoomRadwell750XBXC-12D20.015SCHNEIDER ELECTRIC MAGNECRAFT20.0 @ 1
