Magnecraft / Schneider 783XCXM4L-24A

B07SJHTT4D

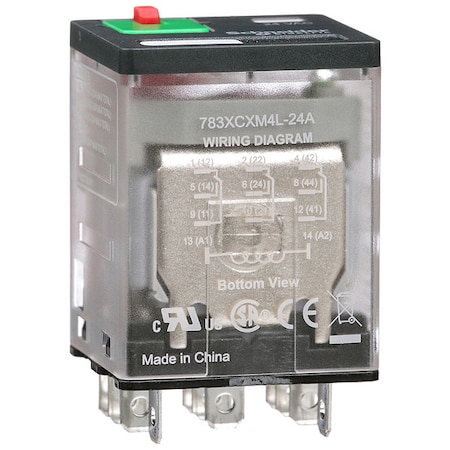

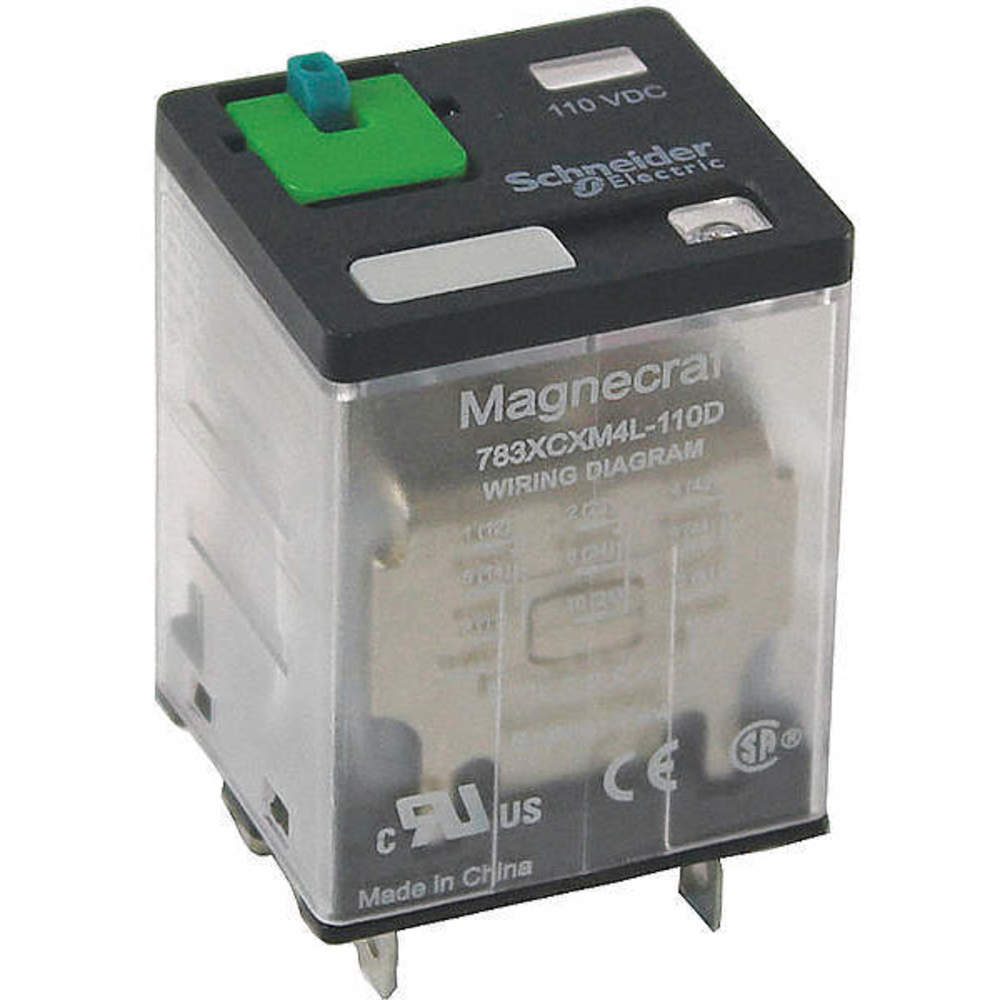

783XCXM4L-24A, Electromechanical Relay 24VAC 103Ohm 10A 3PDT (27.5x31x42) mm Socket Power Relay (2 Items)

783XCXM4L-24A, Electromechanical Relay 24VAC 103Ohm 10A 3PDT (27.5x31x42) mm Socket Power Relay (2 Items)zoom

Attributes

Key Value
AC Contact Rating - Rel.12A @ 277V, 15A @ 120V
Alternate Mfr Part Numb.C833004
ApprovalsCE, CSA, UL
Base Type - Plug In Rel.Square
Bifurcated ContactNo
Body Depth1.54 in
Body Depth - Relay1.1 in
Body Height1.07 in
Body Height - Relay1.6 in
Body Width1.2 in
Body Width - Relay1.2 in
BrandSchneider Electric
Coil Resistance103 Ohms
Coil Voltage120 VAC ; 110/115/120/1.
Coil Volts24V AC
Contact Current Rating15 A
Contact Form3PDT
Contact Form - Relay3PDT
Contact MaterialGold Flashed Silver All.
Contact Voltage Rating300 VAC
Contacts3PDT
Control Voltage120
Current Rating15 A
Current Stock97
DC Contact Rating - Rel.12A @ 28V
Depth0.157 in
Dielectric Rating2500 V (RMS) (Pole to P.
Dimensions1.10 x W 1.21 x H 1.54 .
DiodeNo
EnclosurePlastic
Family SeriesSchneider Relays, 700 S.
FeaturesGold Flashed Contacts
Flat Pin Width0.187 in
FunctionGeneral Purpose
Gross Weight0.1 lbs
Height1.575" (40mm)
HP @ 120V1/2 hp
International ShippingNo
ItemGeneral Purpose Relay
Item - RelayGeneral Purpose Relay
Item Number783XCXM4L-24A
Lead TimeExpected to ship in 1-2.
Length1.212 in
Life10000000 Operations
ManufacturerSchneider
Manufacturer Part NumberC833004M
Max Current15 A
Maximum Operating Tempe.55 ?C
Mechanical LatchYes
Minimum Operating Tempe.-40 ?C
MountingPlug In
Mounting - RelayPlug In
Mounting TypeSocket Mount
Mpn783XCXM4L-24A
Net Weight0.0022 lbs
Nominal Coil Voltage24 VAC
Number of Electrical Co.11
Number of Pins - Relay11
Overall Depth2.07 in
Overall Height - Relay1.85 in
Power Consumption - Rel.1.5 VA
Primary TypePower Relays
Product Header783 Series Ice Cube Rel.
Product Series700
Published Coil Voltage24 VAC
Push-to-TestYes
Rating @ 120 VAC15 A
Rating @ 220/240/277 VAC12 A
Rating @ 24/28/30 VDC12 A
Relay TypeElectromechanical
RoHSYes
Safety GuidedNo
Series788 Series
SKUZO-G0701425
StandardsUL, CSA, CE, RoHS, CE C.
Status IndicatorYes
SubCategoryElectrical
TerminationQC Tabs, .187 " Flat Bl.
Voltage Rating300 V
