Schneider Electric 9001K2L35L

B00CON8H6K

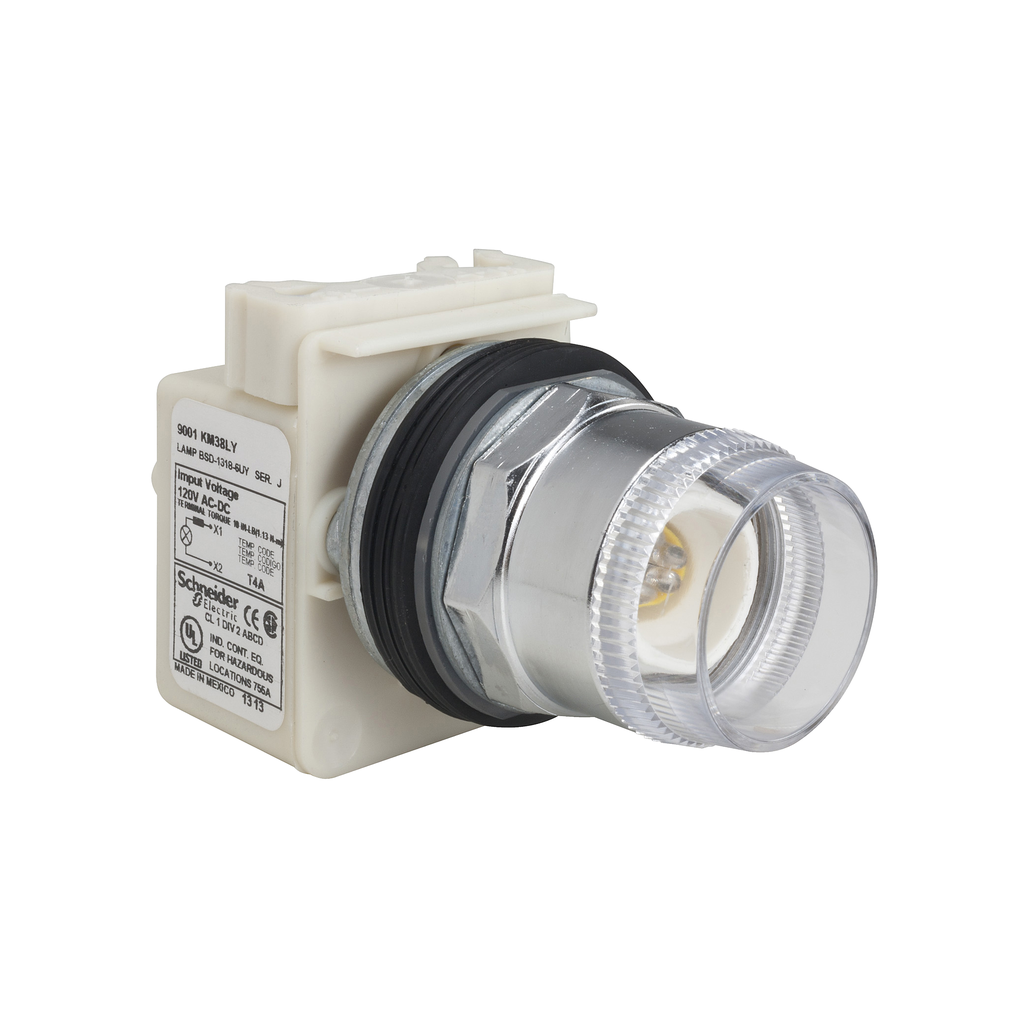

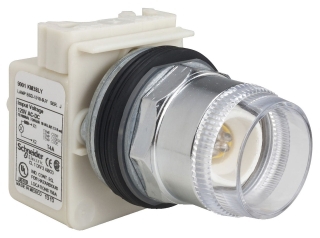

SCHNEIDER ELECTRIC 9001K2L35L Pushbutton Operator 30-Mm Type K Plus Options Electrical Box

SCHNEIDER ELECTRIC 9001K2L35L Pushbutton Operator 30-Mm Type K Plus Options Electrical Boxzoom

Attributes

Key Value
Ambient Air Temperature.-25-70 ?C
Ambient Air Temperature.-40-70 ?C
Bezel Materialmetal
Bulb BaseBA 9s
California Proposition .Lead and lead compounds.
China Rohs RegulationX
Contacts Type And Compo.without contact block
Country of Origin (subj.Mexico
Device Short Name9001K
Electrical Shock Protec.class II IEC 61140
Environmental DisclosureENVPEP121006EN
Eu Rohs DirectivePro-active compliance (.
Ip Degree Of ProtectionIP66 IEC 60529
ItemPUSHBUTTON OPERATOR 30M.
Light Block Supplydirect 24...28 V AC/DC
Light Sourceincandescent
Mechanical Durability5000000 cycles
Mercury FreeYes
Mounting Diameter30 mm
Nema Degree Of Protecti.NEMA 1 || NEMA 12 || NE.
Net Weight0.166 kg
Operating Positionany position
Operator Profileblue projecting, unmark.
Product CertificationsNEMA || UL 508
Product Or Component Ty.head for illuminated pu.
Protective TreatmentTC
Range Of ProductHarmony 9001K
Reach RegulationReference contains Subs.
Rohs Exemption Informat.Yes
Shape Of Signaling Unit.round
Shock Resistance50 gn IEC 60068-2-27
StandardsEN/IEC 60947-5-4 || EN/.
Sustainable Offer StatusGreen Premium product
Type Of Operatorspring return
Vibration Resistance7 gn 2-500 Hz)IEC 60068.
Warranty18 months
WeeeThe product must be dis.

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomZoroG330440998.01In Stock70Square D10.098.0 @ 1
thumbzoomgordonelectricsupply.com9001K2L35L109.591In Stock10SQUARE D109.59 @ 1
thumbzoommostelectric.com9001K2L35L124.31In StockSQUARE D/TELEMECANIQUE124.3 @ 1
thumbzoommayerelectric.comSQD9001K2L35L130.791In StockSQUARE D0.3652130.79 @ 1
Digi-Key16606842135.581In StockSchneider Electric135.58 @ 1
