Schneider Electric ATV212HD30M3X

B00CONAQPU

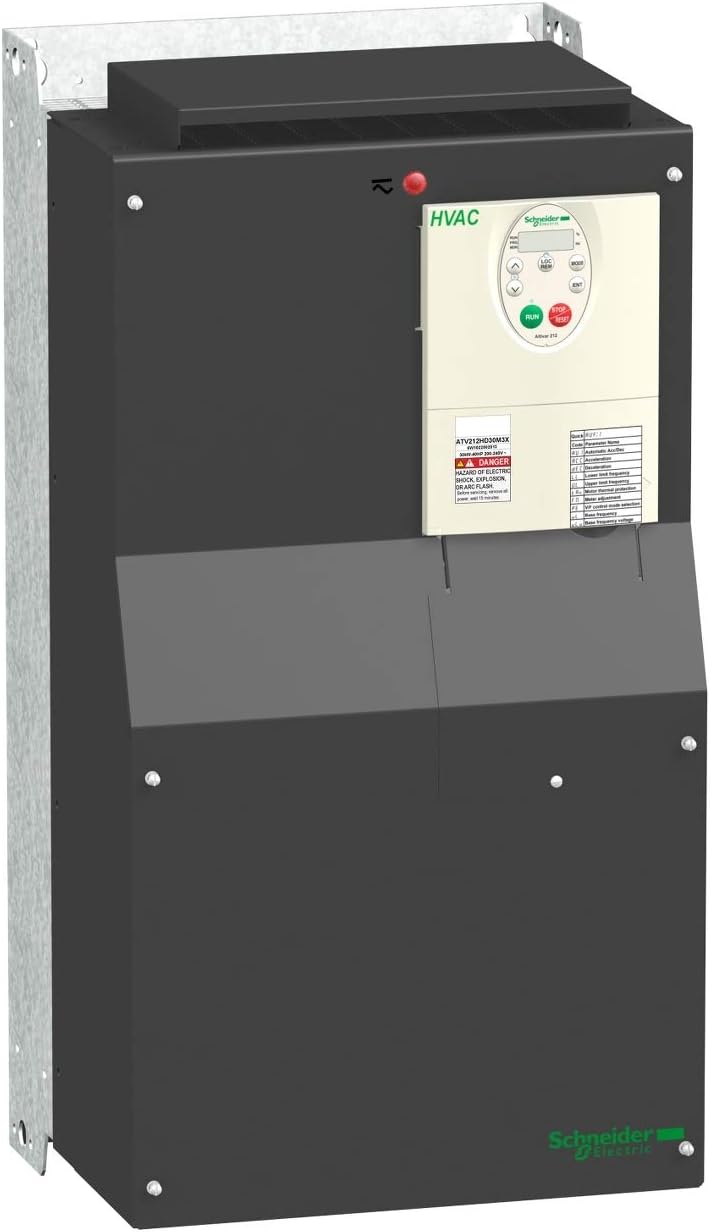

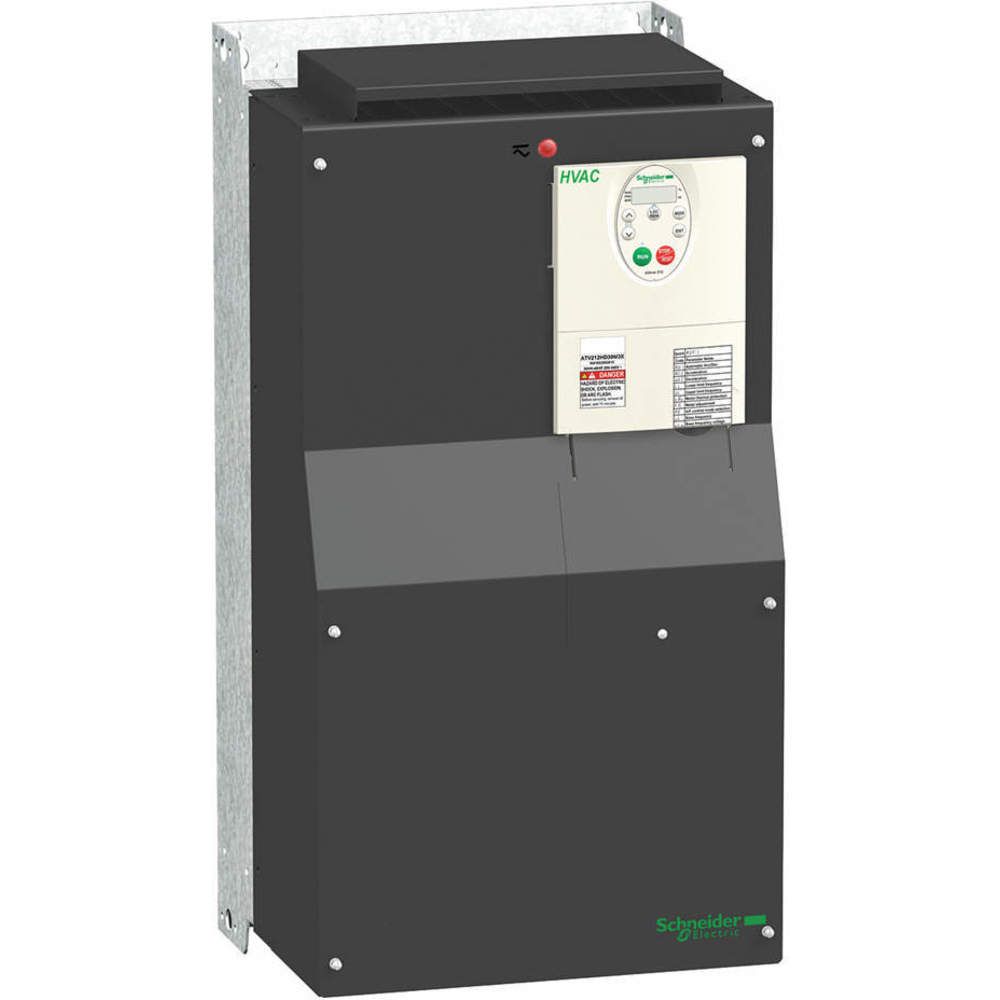

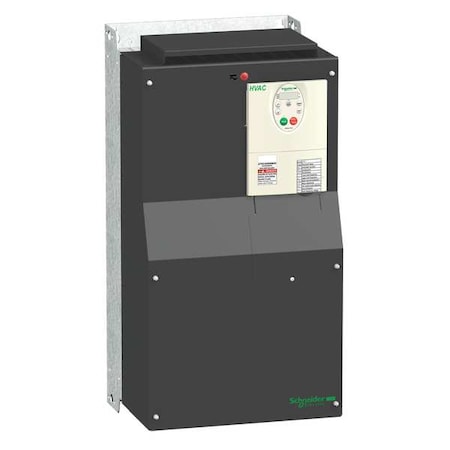

SCHNEIDER ELECTRIC ATV212HD30M3X Speeddrive 200-240Vac 40Hp Atv212 Electrical Box

SCHNEIDER ELECTRIC ATV212HD30M3X Speeddrive 200-240Vac 40Hp Atv212 Electrical Boxzoom

Attributes

Key Value
Accepts Input Control S.Yes
Adjustable Acceleration.0.01 to 3,200 sec
Ambient Temperature-10 to 40 C
ApplicationAsynchronous motors;Pum.
ASINB011P0KID2
Batteries Required?No
BrandSchneider Electric
Catalog NumberATV212HD30M3X
CategoryMotors, Actuators, Sole.
CommunicationMETASYS N2;APOGEE FLN;B.
Control+/- 10 OF NOMINAL SLIP.
Control / Drive TypeVariable Frequency Driv.
Country of OriginFR - France, France
Current - Output58.5A
Current Rating117 A
Depth11.42 in
DescriptionVARIABLE SPEED DRIVE AT.
Detailed DescriptionVariable Frequency Driv.
Digi-Key Part Number4008-ATV212HD30M3X-ND
Displayfor DC bus energized 1 .
Driver TypeVariable Speed
Dynamic BrakingNo
ECCNEAR99
EnclosureOPEN IP20, Open
Environmental Conditions-10-40 A Degrees C WITH.
Family SeriesSquare D Miscellaneous
Features-
For Use With3-Phase Inverter Duty M.
For Use With/Related Pr.-
Frequency0.5 to 200 Hz
Gross Weight0 lbs
GTIN03606480322433
Height24.8 in
Horse Power40
Horsepower Rating40 hp
Input Phase3
Input Phase ACThree
Input Voltage200...240 V - 15...10 %.
InterfaceRS-485
Is Discontinued By Manu.No
ItemVariable Speed Drive
Item model numberATV212HD30M3X
Item NumberATV212HD30M3X
Item Package Quantity1
Item TypeVariable speed drive;1 .
Key Pad LockoutYes
Made in USANo
ManufacturerSquare D, Schneider Ele.
Manufacturer Part Number158559
Manufacturer Product Nu.ATV212HD30M3X
Manufacturer Standard L.3 Weeks
Max. HP40 hp
Max. Output Amps117 A
MfrSchneider Electric
Motor Power Rating30 kW
Motor TypeAC Motor
Mounting TypePanel Mount, Chassis Mo.
Net Weight0 lbs
Number of Motors1
Number Of Pieces1
Operating Temperature-10?C ~ 50?C
Output Frequency0.5 to 200 Hz
Output Phase ACThree
Output Voltage170 to 264V AC
Overall Depth11 3/8 in, 11.417" (290.
Overall Dimensions11.417 x 24.803 x 12.59.
Overall Height24 3/4 in
Overall Length24.803" (630mm)
Overall Width12.598" (320mm), 12 5/8.
PackageBox
Part NumberATV212HD30M3X
Phase3, 3 Phase
Power Rating30 kW
Primary TypeAC Drive
Product StatusActive
SeriesAltivar 212, Altivar 21.
Special FeaturesPump/Fan Functions, VIA.
StandardIP21
StandardsUL, NOM 117, C-Tick, CS.
Start/Stop ControlProgrammable
Sub BrandATV212
Supply Voltage240 VAC
Torque @ 1 Hz110%
TypeVariable Frequency, Mod.
UNSPSC39122001
UPC785901921981
UPC Code785901921981
Use With3-Phase Asynchronous Mo.
Voltage - Load380 ~ 480V
Voltage - Supply323V ~ 528V
Warranty DescriptionContractual Warranty:18.
Wattage - Load30000 W
Weight-
Width12.6 in
With Bypass / No BypassNo Bypass
With Line Contactor / N.No Line Contactor

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
industrialrefrigerationparts.comATV212HD30M3X4.571In StockSchneider Electric4.57 @ 1
thumbzoomblackhawksupply.comATV212HD30M3X4970.71In StockSquare D4970.7 @ 1
thumbzoomDigi-Key166131475096.241In StockSchneider Electric5096.24 @ 1
thumbzoomAmazonSCB011P0KID25133.471In StockSchneider Electric5133.47 @ 1
thumbzoomNewark52T34355234.271In StockSCHNEIDER ELECTRIC5234.27 @ 1
standardelectricsupply.com23738685398.91In StockSchneider Electric5398.9 @ 1
thumbzoomGalcoATV212HD30M3X-SQD5656.411In StockSquare D5656.41 @ 1
thumbzoomsustainablesupply.comC14950785917.721In StockSchneider Electric125.05917.72 @ 1
thumbzoomZoroG07893816130.991In StockSchneider Electric125.06130.99 @ 1
KeleATV212HD30M3X6614.41In StockSchneider Electric Buildings6614.4 @ 1
Graybar254276366850.50241In StockSquare D (Schneider Electric)6850.5024 @ 1
us.rs-online.com700082926925.161In StockSchneider Electric6925.16 @ 1
thumbzoomcrescentelectric.com2337777583.761In StockSchneider Electric7583.76 @ 1
thumbzoomRaptor SuppliesAG7FQT8633.3835511In StockSCHNEIDER ELECTRIC8633.383551 @ 1
