Square D CA2KN22F7

B06X1BRSTP

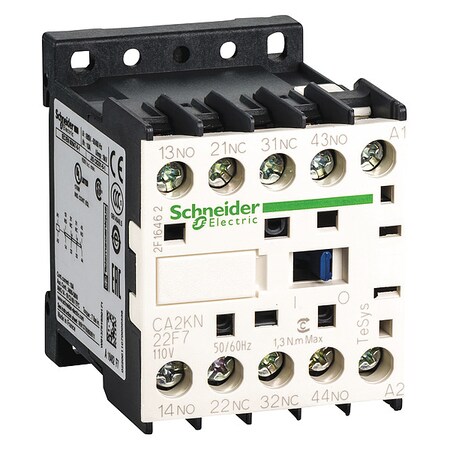

CA2KN22F7 CONTROL RELAY - CONTROL RELAY 600VAC 10AMP IEC +OPTIONS

CA2KN22F7 CONTROL RELAY - CONTROL RELAY 600VAC 10AMP IEC +OPTIONSzoom

Attributes

Key Value
[Ith] Conventional Free.10 A 50 ?C
[Uc] Control Circuit Vo.110 V AC 50/60 Hz
[Ue] Rated Operational .<= 690 V <= 400 Hz
[Ui] Rated Insulation V.690 V IEC 60947 || 750 .
Ambient Air Temperature.-25-50?C, -25-50 ?C
Ambient Air Temperature.-50-80 ?C
Applicationcontrol circuit
ApprovalsCSA, UL
ASINB07872C2LW
Associated Fuse Rating10 A gG IEC 60947 || 10.
BrandSchneider Electric
California Proposition .Antimony oxide & Antimo.
Catalog NumberCA2KN22F7
China Rohs RegulationPro-active China RoHS d.
Circularity ProfileENVEOLI1503003EN
Coil Voltage110 VAC
Connectionscrew clamp terminals 1.
Connections - Terminalsscrew clamp terminals 1.
Contact Configuration2 NO + 2 NC, 2NO, 2NC
Contact Current Rating10 A
Contact Voltage Rating300
Contactor Applicationcontrol circuit
Control Circuit TypeAC 50/60 Hz
Control Circuit Voltage.drop-out 0.2...0.75 Uc .
Country of OriginID - Indonesia, Indones.
Current Rating10 A
Depth57 mm
Device Short NameCA2K
ECCNEAR99
EnclosureIP2X
Environmental DisclosureENVPEP1503003EN
Eu Rohs DirectiveCompliant
Family SeriesSquare D Control Relays
Flame RetardanceV1 conforming to UL 94 .
Gross Weight0.4 lbs
Heat Dissipation1.3-1.3 W
Height58 mm
Hold-In Power Consumpti.4.5-4.5 VA 20 ?C), 4.5-.
Immunity To Microbreaks2 ms
Inrush Power In Va30-30 VA 20 ?C)
Insulation Resistance> 10 MOhm
Ip Degree Of ProtectionIP2X
Irms Rated Making Capac.110 A IEC 60947
Is Discontinued By Manu.No
ItemControl Relay 600Vac 10.
Item model numberCA2KN22F7
Item NumberCA2KN22F7
Item Typecontrol relay
Low Power ConsumptionNo
Made in USANo
ManufacturerSquare D, Schneider, Sc.
Manufacturer Part Number337433
Maximum Operating Rate10000 cyc/h
Mechanical Durability10 Mcycles
Mechanical Robustnessvibrations contactor op.
Mercury FreeYes
Minimum Switching Curre.5 mA
Minimum Switching Volta.17 V
MountingDIN Rail, Panel, Rail P.
Mounting Supportplate || rail
Net Weight0.0624 lbs, 0.18 kg
Nominal Coil Voltage120 VAC
Non Overlap Distance0.5 mm
Operating Altitude6561.68 ft (2000 m) wit.
Operating Cycles10000 cyc/h
Operating Temperature-25-50 A Degrees C
Operating Time10...20 ms coil de-ener.
Pole Contact Composition2 NO + 2 NC
Primary TypePower Relays
Product CertificationsCB Scheme || CCC || UL .
Product NameTeSys CAK
Product Or Component Ty.control relay
Protective TreatmentTC IEC 60068
RangeTeSys
Reach Free Of SvhcYes
Reach RegulationFree of Substances of V.
Rohs Exemption Informat.Yes
Size2.24
StandardCSA-UL,IP2X,V1 UL 94-RE.
StandardsEN/IEC 60947-4-1 || GB/.
Sub BrandTeSys CAK;CA2K
Sustainable Offer StatusGreen Premium product
TerminationScrew
Thermal Current (A)10 A
Tightening Torque1.3 N.m screw clamp ter.
Toxic Heavy Metal FreeYes
UNSPSC39122331
UNSPSC Code26111700
UPC785901898740
UPC Code785901898740
Utilisation CategoryDC-13 || AC-15
Warranty18 months
Warranty DescriptionContractual Warranty:18.
WeeeThe product must be dis.
Width45 mm

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomkempstoncontrols.co.ukCA2-KN22F726.894614513Schneider26.8946145 @ 1
thumbzoomebay.com_rakhibrothersCA2KN22F728.991In StockSCHNEIDER ELECTRIC28.99 @ 1
standardelectricsupply.com3629435.75126Schneider Electric35.75 @ 1
thumbzoomTMECA2KN22F736.141In StockSCHNEIDER ELECTRIC36.14 @ 1
thumbzoomZoroG056999637.551In StockSchneider Electric0.437.55 @ 1
thumbzoommayerelectric.comSQDCA2KN22F741.221In StockSCHNEIDER ELECTRIC0.39641.22 @ 1
RS Delivers758-85041.6881In StockSchneider Electric41.688 @ 1
thumbzoommostelectric.comCA2KN22F742.991In StockSQUARE D/TELEMECANIQUE42.99 @ 1
us.rs-online.com7097912844.011In StockSchneider Electric44.01 @ 1
thumbzoomGalcoCA2KN22F7-SQD46.7414Square D0.446.74 @ 1
thumbzoomblackhawksupply.comCA2KN22F747.81In StockSquare D47.8 @ 1
thumbzoomsustainablesupply.comC299490048.961In StockSchneider Electric0.448.96 @ 1
Graybar9501221551.11681In StockSquare D (Schneider Electric)51.1168 @ 1
AmazonSCB07872C2LW51.121In StockSchneider51.12 @ 1
thumbzoomNewark15B680955.1217SCHNEIDER ELECTRIC55.12 @ 1
thumbzoommidwestapplianceparts.comCA2KN22F7-SQ-P56.411In StockSquared56.41 @ 1
thumbzoomNational Supply Network6467965757.581In StockSchneider Electric57.58 @ 1
thumbzoomcrescentelectric.com12183163.211In StockSchneider Electric63.21 @ 1
thumbzoomebay.com_tch-technologieCA2KN22F767.691In StockSCHNEIDER ELECTRIC67.69 @ 1
thumbzoomebay.com_brooks1306CA2KN22F774.841In StockSCHNEIDER ELECTRIC74.84 @ 1
grainger.caTLQCA2KN22F7100.219292481In StockSCHNEIDER ELECTRIC0.4100.21929248 @ 1
industrialrefrigerationparts.comCA2KN22F71887.091In StockSchneider Electric1887.09 @ 1
