- mpnCA2KN22L7
- brandname: SCHNEIDER ELECTRIC
- manufacturername: SCHNEIDER ELECTRIC

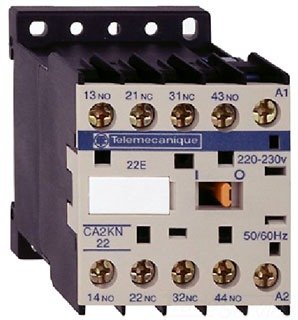

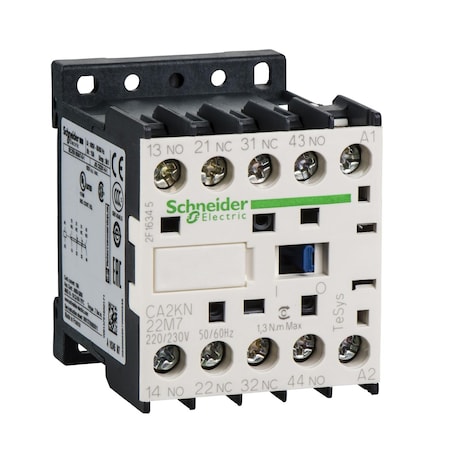

Square D - CA2KN22L7 - Square D CA2KN22L7 Motor Control Relay, 2NO 2NC, 690 V System, 200 VAC Control Circuit, 10 A, IP2X
- Brand: Square D
- PartNumber: CA2KN22L7
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: Square D
- Label: Square D
Attributes
| Key | Value |
|---|
| [Ith] Conventional Free. | 10 A 50?C |
| [Ue] Rated Operational . | <= 690 V <= 400 Hz |
| [Ui] Rated Insulation V. | 690 V IEC 60947 || 750 . |
| Ambient Air Temperature. | -25-50?C |
| Application | Control circuit |
| Approvals | CSA, UL |
| Brand | Schneider Electric |
| Catalog Number | CA2KN22L7 |
| Coil Voltage | 200 VAC |
| Connection | screw clamp terminals 1. |
| Contact Configuration | 2 NO + 2 NC, 2NO, 2NC |
| Contact Voltage Rating | 300 |
| Control Circuit Type | AC 50/60 Hz |
| Country of Origin | France |
| Depth | 57 mm |
| Enclosure | IP2X |
| Family Series | Square D Control Relays |
| Flame Retardance | V1 conforming to UL 94 . |
| Gross Weight | 0 lbs |
| Height | 58 mm |
| Hold-In Power Consumpti. | 4.5-4.5 VA 20?C) |
| Ip Degree Of Protection | IP2X |
| Item | Control Relay 600Vac 10. |
| Item Number | CA2KN22L7 |
| Item Type | control relay |
| Low Power Consumption | No |
| Made in USA | No |
| Manufacturer | Square D, Schneider Ele. |
| Manufacturer Part Number | CA2KN22L7 |
| Mechanical Durability | 10 Mcycles |
| Minimum Switching Curre. | 5 mA |
| Mounting | DIN Rail, Panel, Rail P. |
| Mounting Support | rail || plate |
| Net Weight | 0 lbs |
| Nominal Coil Voltage | 208 VAC |
| Non Overlap Distance | 0.5 mm |
| Operating Altitude | 6561.68 ft (2000 m) wit. |
| Operating Cycles | 10000 CYC/H |
| Operating Temperature | -25-50 A Degrees C |
| Pole Contact Composition | 2 NO + 2 NC |
| Product Name | TeSys CAK |
| Product Or Component Ty. | control relay |
| Protective Treatment | TC IEC 60068 |
| Range | TeSys |
| Size | 45 MM,57 MM,58 MM |
| Standard | IP2X,UL-CSA,V1 UL 94-RE. |
| Standards | EN/IEC 60947-4-1 || GB/. |
| Sub Brand | TeSys CAK;CA2K |
| Termination | Screw |
| Thermal Current (A) | 10 A |
| Timing Range | 10...20 ms coil de-ener. |
| UPC | 785901719007 |
| UPC Code | 785901719007 |
| Utilisation Category | DC-13 || AC-15 |
| Warranty Description | Contractual Warranty:18. |
| Width | 45 mm |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Radwell | CA2KN22L7 | 36.77 | 1 | In Stock | | SCHNEIDER ELECTRIC | | 36.77 @ 1 |
 | Newark | 79C5318 | 43.36 | 1 | In Stock | | SCHNEIDER ELECTRIC | | 43.36 @ 1 |
 | sustainablesupply.com | C2994896 | 51.49 | 1 | In Stock | | Schneider Electric | 0.4 | 51.49 @ 1 |
 | Zoro | G0570005 | 53.79 | 1 | In Stock | | Schneider Electric | 0.4 | 53.79 @ 1 |
| us.rs-online.com | 71123420 | 53.81 | 1 | 1 | | Schneider Electric | | 53.81 @ 1 |
 | gordonelectricsupply.com | CA2KN22L7 | 56.09 | 1 | In Stock | 10 | SQUARE D | | 56.09 @ 1 |
 | National Supply Network | 69531259 | 59.67 | 1 | In Stock | | Schneider Electric | | 59.67 @ 1 |
 | Galco | CA2KN22L7-SQD | 64.14 | 1 | In Stock | | Square D | | 64.14 @ 1 |
 | blackhawksupply.com | CA2KN22L7 | 66.36 | 1 | In Stock | | Square D | | 66.36 @ 1 |
 | crescentelectric.com | 119939 | 94.81 | 1 | In Stock | | Schneider Electric | | 94.81 @ 1 |
