CA2KN22S7

B00JF2OWG2

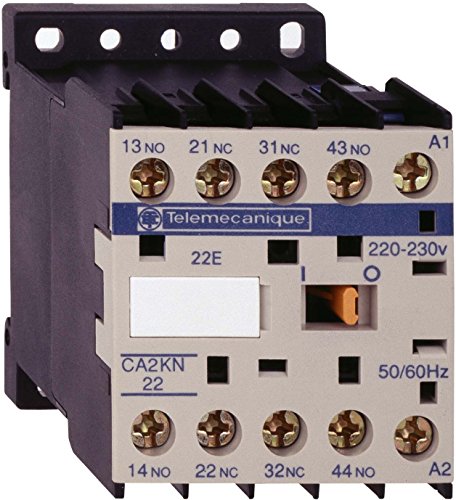

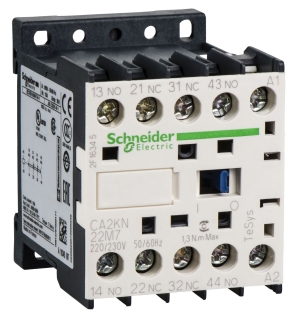

SCHNEIDER ELECTRIC CA2KN22S7 CONTROL RELAY 600VAC 10AMP IEC +OPTIONS

SCHNEIDER ELECTRIC CA2KN22S7 CONTROL RELAY 600VAC 10AMP IEC +OPTIONSzoom

Attributes

Key Value
[Ith] conventional free.10 A at
[Ui] rated insulation v.600 V conforming to CSA.
Ambient air temperature.-13...122 ?F (-25...50 .
Ambient air temperature.-58...176 ?F (-50...80 .
Associated fuse rating10 A gG conforming to I.
Category22371 - RELAYS, CONTROL
Coil Volts600VAC
Commercial StatusCommercialised
Connections - terminals.flexible - with cable e.
Connections - terminals.flexible - with cable e.
Connections - terminals.solid
Connections - terminals.flexible - without cabl.
Connections - terminals.flexible - without cabl.
Connections - terminals.solid
Contactor applicationControl circuit
Control circuit typeAC 50/60 Hz
Control circuit voltage500 V AC 50/60 Hz
Control circuit voltage.0.2...0.75 Uc at 122 ?F.
Country of originFR
Country of Origin (subj.France
Depth2.24 in (57 mm)
Device short nameCA2K
Discount ScheduleI12
Flame retardanceRequirement 2 conformin.
GTIN00785901875123
Heat dissipation1.3 W
Height2.28 in (58 mm)
Hold-in power consumpti.4.5 VA at 68 ?F (20 ?C)
Immunity to microbreaks2 ms
Inrush power in VA30 VA at 68 ?F (20 ?C)
Insulation resistance> 10 MOhm
IP degree of protectionIP2x
Irms rated making capac.110 A conforming to IEC.
ItemControl Relay 600Vac 10.
Mechanical durability10 Mcycles
Mechanical robustnessVibrations contactor op.
Minimum switching curre.5 mA
Minimum switching volta.17 V
Mounting supportPlate, Rail
Nbr. of units in pkg.1
Non overlap distance0.02 in (0.5 mm)
Operating altitude6561.68 ft (2000 m) wit.
Operating rate10000 cyc/h
Operating time10...20 ms coil energis.
Pole contact composition2 NO + 2 NC
Product availabilityStock - Normally stocke.
Product certificationsUL, CSA
Product end of life ins.Need no specific recycl.
Product environmental p.Available, Download?Pro.
Product nameTeSys CAK
Product or component ty.Control relay
Product weight0.4 lb(US) (0.18 kg)
Protective treatmentTC conforming to IEC 60.
RangeTeSys
REAChReference not containin.
ReturnabilityY
RoHS (date code: YYWW)Schneider Electric decl.
StandardsBS 5424, IEC 60947, VDE.
Sustainable offer statusGreen Premium product
Tightening torque11.5 lbf.in (1.3 N.m) -.
Utilisation categoryAC-15, DC-13
Warranty period18 months
Width1.77 in (45 mm)

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomRadwellCA2KN22S736.771In StockSCHNEIDER ELECTRIC36.77 @ 1
thumbzoomZoroG084775637.291In Stock10Schneider Electric0.3937.29 @ 1
thumbzoomgordonelectricsupply.comCA2KN22S737.291In Stock10SQUARE D37.29 @ 1
thumbzoommayerelectric.comSQDCA2KN22S741.221In StockSCHNEIDER ELECTRIC0.441.22 @ 1
thumbzoomsustainablesupply.comC299490147.21In StockSchneider Electric0.3947.2 @ 1
