Schneider Electric DPE32B7

B09B2T4TZV

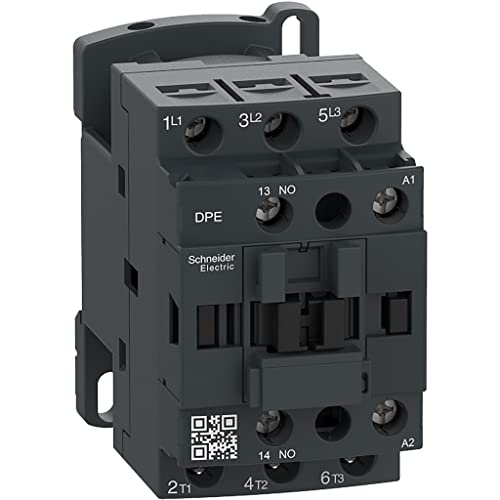

Schneider Electric DPE32B7 Easy TeSys IEC Contactor 15HP 480V 24VAC Coil, HVAC & AC Contactor, Pumps, Compressors, DIN-Rail Mount/Screw Fixing, 2HP 115V-1Ph, 3HP 230V-1Ph, 7.5HP 200-230V, 15HP 460V

Schneider Electric DPE32B7 Easy TeSys IEC Contactor 15HP 480V 24VAC Coil, HVAC & AC Contactor, Pumps, Compressors, DIN-Rail Mount/Screw Fixing, 2HP 115V-1Ph, 3HP 230V-1Ph, 7.5HP 200-230V, 15HP 460Vzoom

Attributes

Key Value
ApplicationMotor Control, Resistiv.
Aux. Contact Configurat.1NO
Auxiliary Contact1 NO
BrandSchneider Electric
Catalog NumberDPE32B7
CategoryRelays
Coil Power-
Coil Resistance-
Coil Voltage24 Vac, 24VAC, 24 V AC .
Coil Volts24 V AC
ConnectionControl circuit screw c.
Contact Configuration1 NO;3 NO;Mechanically .
Contact Form3PST-NO (3 Form A)
Contact Material-
Contact Rating (Current)32 A
Continuous Current40 A
Country of OriginIndonesia, 00 - Unknown
Depth3.62 in
ECCNEAR99
Enclosure NEMA Rating3R; 4
FeaturesAuxiliary Contacts, Wit.
Frame / Series / Class .TeSys
Full Load Amps-Inductive32 A
Full Load Amps-Resistive32 A
Height3.35 in, 92 mm
Horsepower, Max, 1 Phas.3
Horsepower, Max, 3 Phas.7.5
Horsepower, Max, 3 Phas.7.5
Horsepower, Max, 3 Phas.15
Horsepower, Max, 3 Phas.20
HP @ 1 Phase - 120V2 hp
HP @ 1 Phase - 240V3 hp
HP @ 3 Phase - 208V7 1/2 hp
HP @ 3 Phase - 240V7 1/2 hp
HP @ 3 Phase - 480V15 hp
HP @ 3 Phase - 575V20 hp
Hz50/60 Hz
ItemEasy TeSys
Item TypeContactor
Length85 mm
Made in USANo
ManufacturerSchneider Electric
MfrSchneider Electric
MountingRail Plate
Mounting TypeChassis Mount, DIN Rail
Must Operate Voltage20.4 VAC
Must Release Voltage7.2 VAC
Number of Poles3
Operate Time22 ms
Operating Temperature-40?C ~ 60?C
PackageBox
Part StatusActive
Release Time19 ms
ReversingNo
Series-
Special FeaturesOvervoltage Category II.
StandardUL;CSA
StandardsCSA, CSA C22.2 No 14, E.
Sub BrandEasy TeSys DPE;DPE
Switching Voltage690VAC, 300VDC - Max
Termination StyleScrew Terminal
UNSPSC39121529
Weight0.82 lbs
Width1.77 in, 0 mm
Working HeightUp to 6561.68 ft

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
gordonelectricsupply.comDPE32B751.31In Stock10SQUARE D51.3 @ 1
standardelectricsupply.com239225154.151In StockSchneider Electric54.15 @ 1
thumbzoomZoroG20348109261.751In StockSchneider Electric0.9161.75 @ 1
us.rs-online.com7229938663.281In StockSchneider Electric0.8263.28 @ 1
Graybar2652228166.081In StockSquare D (Schneider Electric)66.08 @ 1
Digi-Key1585848670.2850075Schneider Electric70.28 @ 1
thumbzoomcrescentelectric.com129663876.341In StockSchneider Electric76.34 @ 1
thumbzoomNewark43AJ711086.3613SCHNEIDER ELECTRIC86.36 @ 1
