Schneider Electric DPE38BL

B09B2PV2GP

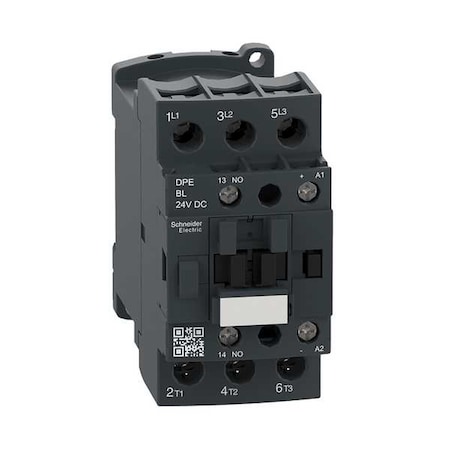

Schneider Electric - DPE38BL Easy TeSys IEC Contactor, 20HP, 480V, 24VDC Coil, Screw Clamp Terminals

Schneider Electric - DPE38BL Easy TeSys IEC Contactor, 20HP, 480V, 24VDC Coil, Screw Clamp Terminalszoom

Attributes

Key Value
ApplicationMotor Control, Resistiv.
Aux. Contact Configurat.1NO
Auxiliary Contact1 NO
BrandSchneider Electric
Catalog NumberDPE38BL
CategoryRelays
Coil Power-
Coil Resistance-
Coil Voltage24VDC, 24 V DC
Coil Volts24 V DC
ConnectionPower circuit screw cla.
Contact Configuration1 NO;3 NO;Mechanically .
Contact Form3PST-NO (3 Form A)
Contact Material-
Contact Rating (Current)38 A
Continuous Current52 A
Country of OriginIndonesia, 00 - Unknown
Depth3.62 in
DescriptionIEC CONTACTOR, 20HP 480.
Digi-Key Part Number4008-DPE38BL-ND
ECCNEAR99
Enclosure NEMA Rating3R; 4
FeaturesAuxiliary Contacts, Wit.
Frame / Series / Class .TeSys
Full Load Amps-Inductive38 A
Full Load Amps-Resistive38 A
Height3.35 in, 92 mm
Horsepower, Max, 1 Phas.5
Horsepower, Max, 3 Phas.10
Horsepower, Max, 3 Phas.10
Horsepower, Max, 3 Phas.20
Horsepower, Max, 3 Phas.25
HP @ 1 Phase - 120V2 hp
HP @ 1 Phase - 240V5 hp
HP @ 3 Phase - 208V7 1/2 hp
HP @ 3 Phase - 240V10 hp
HP @ 3 Phase - 480V20 hp
HP @ 3 Phase - 575V25 hp
Hz50/60 Hz
ItemEasy TeSys
Item TypeContactor
Length85 mm
Made in USANo
ManufacturerSchneider Electric
Manufacturer Product Nu.DPE38BL
Manufacturer Standard L.3 Weeks
MfrSchneider Electric
MountingRail Plate
Mounting TypeChassis Mount, DIN Rail
Must Operate Voltage19.2 VDC
Must Release Voltage2.4 VDC
Number of Poles3
Operate Time88.55 ms
Operating Temperature-40?C ~ 60?C
PackageBox
Product StatusActive
Release Time30 ms
ReversingNo
Series-
Special FeaturesOvervoltage Category II.
StandardUL;CSA
StandardsCSA, CSA C22.2 No 14, E.
Sub BrandEasy TeSys DPE;DPE
Switching Voltage690VAC, 300VDC - Max
Termination StyleScrew Terminal
UNSPSC39121529
Weight1.18 lbs
Width1.77 in, 0 mm
Working HeightUp to 6561.68 ft

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
standardelectricsupply.com239225956.051In StockSchneider Electric56.05 @ 1
thumbzoomZoroG30348110764.741In Stock10Schneider Electric1.364.74 @ 1
us.rs-online.com7229939365.491In StockSchneider Electric1.1865.49 @ 1
thumbzoomDigi-Key1585849667.091140Schneider Electric67.09 @ 1
Graybar2652222268.398415Square D (Schneider Electric)68.3984 @ 1
thumbzoomcrescentelectric.com129662379.011In StockSchneider Electric79.01 @ 1
thumbzoomNewark43AJ711389.414SCHNEIDER ELECTRIC89.4 @ 1
