Schneider Electric GV2P04

B00CONPEMK

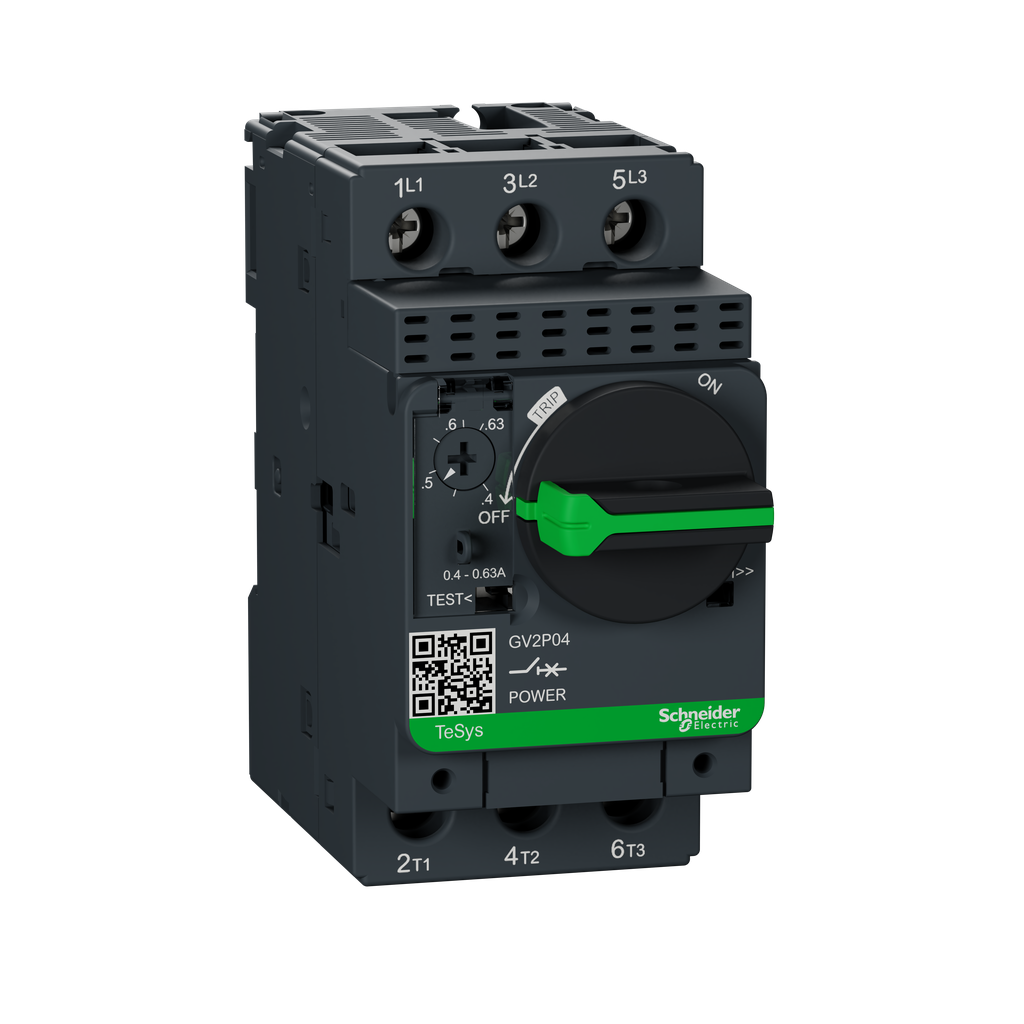

SCHNEIDER ELECTRIC 600-VAC 0.63-AMP GV2P04 Manual Starter 600VAC 0.63AMP IEC

SCHNEIDER ELECTRIC 600-VAC 0.63-AMP GV2P04 Manual Starter 600VAC 0.63AMP IECzoom

Attributes

Key Value
[Ics] Rated Service Sho.100 % 230/240 V AC 50/6.
[Ith] Conventional Free.0.63 A IEC 60947-4-1
[Ue] Rated Operational .690 V AC 50/60 Hz IEC 6.
[Ui] Rated Insulation V.690 V AC 50/60 Hz IEC 6.
[Uimp] Rated Impulse Wi.6 kV IEC 60947-2
Ambient Air Temperature.-20-60 ?C
Ambient Air Temperature.-40-80 ?C
Amperage Rating0.4-0.63A
Amps AC0.40 to 0.63
ApplicationMOTOR
BrandSchneider, Schneider El.
Breaking Capacity100 kA Icu 230/240 V AC.
California Proposition .Antimony oxide & Antimo.
Catalog NumberGV2P04
China Rohs RegulationProduct out of China Ro.
Circularity ProfileENVEOLI2211002
Climatic WithstandIACS E10
Colordark grey
ComponentIEC Starter
ConnectionSCREW CLAMP TERMINALS 2.
Connection TypeScrew Clamp Terminal
Control Typerotary handle
Control Voltage690 V
Country of OriginThailand, TH - Thailand
Current Stock3
Depth97 mm, 3.83 in
Description/Special Fea.Screw Clamp Terminals, .
Device Applicationmotor protection
Device Short NameGV2P
ECCNEAR99
Electrical Durability100000 cycles AC-3 415 .
Enclosure NEMA RatingNo Enclosure
Environmental DisclosureENVPEP2211002
Eu Rohs DirectiveCompliant
Family SeriesSquare D Miscellaneous
Fire Resistance960 ?C IEC 60695-2-11
Fixing Mode35 mm symmetrical DIN r.
Gross Weight0 lbs
Height3.5 in, 89 mm
Ik Degree Of ProtectionIK04
International ShippingNo
Ip Degree Of ProtectionIP20 IEC 60529
ItemManual Motor Starter
Item NumberGV2P04
Item TypeCIRCUIT BREAKER
Lead TimeExpected to ship in 1-2.
Line Rated Current0.63 A
Made in USANo
Magnetic Tripping Curre.8-8 A
ManufacturerSquare D, Schneider Ele.
Manufacturer Part Number224057
Max. Voltage600V AC
Mechanical Durability100000 cycles
Mechanical Robustnessshocks 30 Gn for 11 ms .
Mercury FreeYes
Motor FLA Range0.4-0.63 A
Motor Power Kw0.12-0.12 kW 400/415 V .
MountingScrew
MpnGV2P04
Net Weight0 lbs
Network Frequency50/60 Hz IEC 60947-4-1
Network TypeAC
Number of Poles3
Operating Altitude6561.68 ft (2000 m)
OperatorRotary Knob
Overload Relay Amp Sett.0.4 to 0.63 A, 0.4 to 0.
Phase Failure Sensitivi.yes IEC 60947-4-1
Phase Loss SensitivityNo
Pilot LightYes
Poles Description3P
Power Dissipation Per P.2.5 W
Product CertificationsCCC || UL || CSA || EAC.
Product NameTeSys GV2 || TeSys Deca
Product Or Component Ty.motor circuit breaker
RangeTeSys Deca
Rated Dutycontinuous IEC 60947-4-1
Reach RegulationReference contains Subs.
Reset TypeAMBIENT COMPENSATED BIM.
Rohs Exemption Informat.Yes
SeriesTeSys GV2, TeSys Deca S.
Size45 MM,89 MM,97 MM
SKUZO-G1137832
Special FeaturesIK04,IP20 CONFORMING TO.
Standard960 A Degrees C IEC 606.
StandardsEN/IEC 60947-2 || EN/IE.
Starter Amperage0.63 Amp
Starter Overload Amp Se.0.4-0.63 Amp
Starter PolesThree Pole
Starter TypeManual Motor Starter ; .
Sub BrandGV2P,TESYS,TESYS GV2
Sub ComponentTeSys GV2 Manual Starte.
SubCategoryElectrical
Suitability For Isolati.yes IEC 60947-1 ? 7-1-6
Sustainable Offer StatusGreen Premium product
Thermal Protection Adju.0.4-0.63 A IEC 60947-4-1
Tightening Torque1.7 N.m screw clamp ter.
Trip Unit Technologythermal-magnetic
UNSPSC39121521
UPC785901832867
UPC Code785901832867
Utilisation Categorycategory A IEC 60947-2 .
Voltage Rating690 V AC 50/60 Hz IEC 6.
Warranty18 months
Warranty DescriptionContractual Warranty:18.
WeeeThe product must be dis.
Width45 mm, 1.75 in

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomTMEGV2P0465.281In StockSCHNEIDER ELECTRIC65.28 @ 1
RS Delivers608-8517134.316119Schneider Electric134.316 @ 1
thumbzoomkempstoncontrols.co.ukGV2P04137.9033371In StockSchneider137.903337 @ 1
thumbzoomblackhawksupply.comGV2P04206.211In StockSquare D206.21 @ 1
thumbzoomNewark15B8809211.431In StockSCHNEIDER ELECTRIC211.43 @ 1
thumbzoommayerelectric.comSQDGV2P04222.321In StockSQUARE D222.32 @ 1
thumbzoomsustainablesupply.comC3039702228.141In StockSchneider Electric0.66228.14 @ 1
Graybar96073657232.98241In StockSquare D (Schneider Electric)232.9824 @ 1
thumbzoomGalcoGV2P04-SQD234.671In StockSquare D234.67 @ 1
grainger.caTLQGV2P04247.855490941In StockSCHNEIDER ELECTRIC0.66247.85549094 @ 1
rspsupply.comSCHNEIDER GV2P04253.441In StockSchneider Electric253.44 @ 1
thumbzoomZoroG1137832280.3319Schneider Electric0.4280.33 @ 1
thumbzoomNational Supply Network69526721286.461In StockSchneider Electric286.46 @ 1
simplybreakers.comGV2P04292.991In StockSchneider Electric292.99 @ 1
thumbzoomsimsupply.comZO-G1137832306.5913Schneider306.59 @ 1
thumbzoomcrescentelectric.com25989334.681In StockSchneider Electric334.68 @ 1
us.rs-online.com70379149339.4111Schneider Electric339.41 @ 1
Grainger2MNJ2345.621In StockSCHNEIDER ELECTRIC345.62 @ 1
thumbzoomRaptor SuppliesAH2PQL482.6505061In StockSCHNEIDER ELECTRIC482.650506 @ 1
