Schneider Electric GV2P06

B00CONPGWS

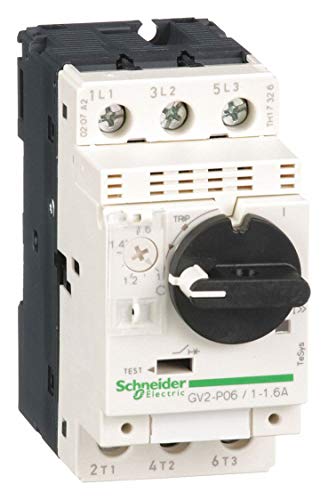

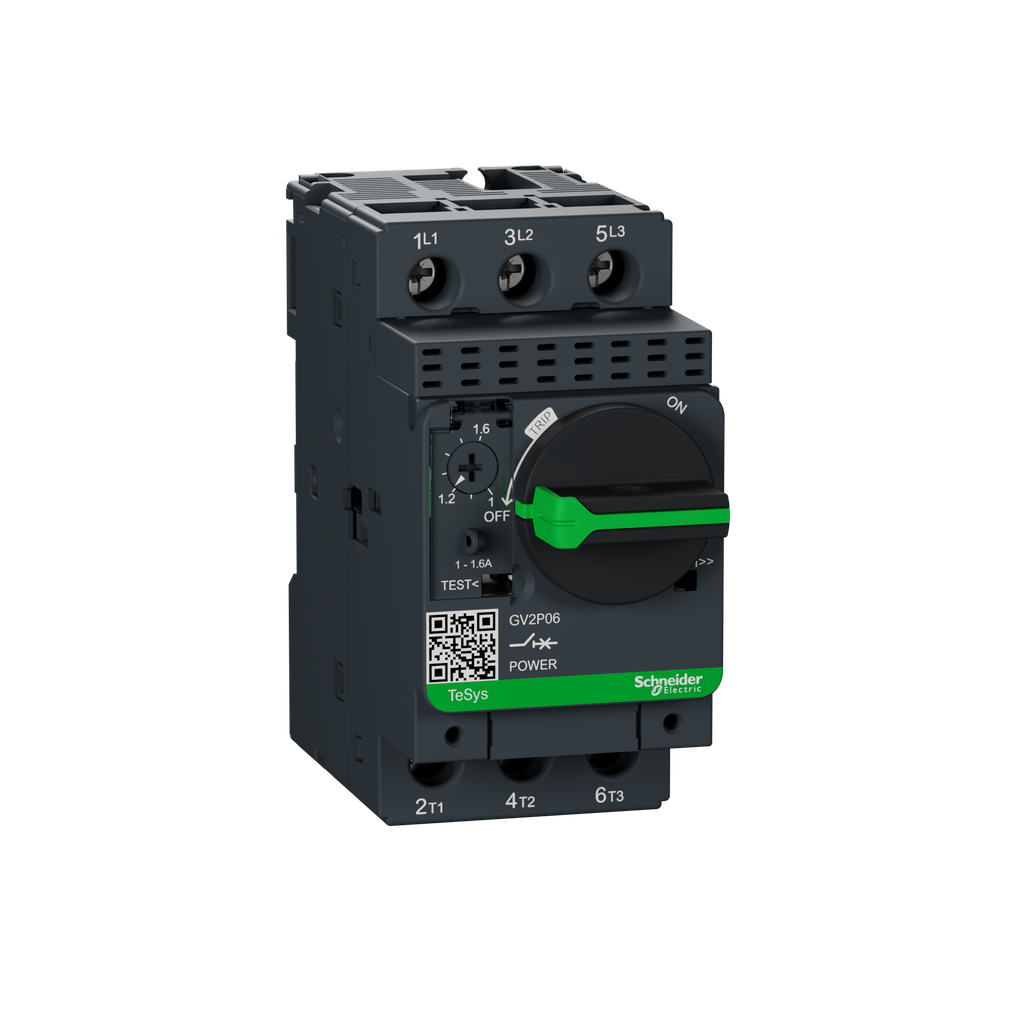

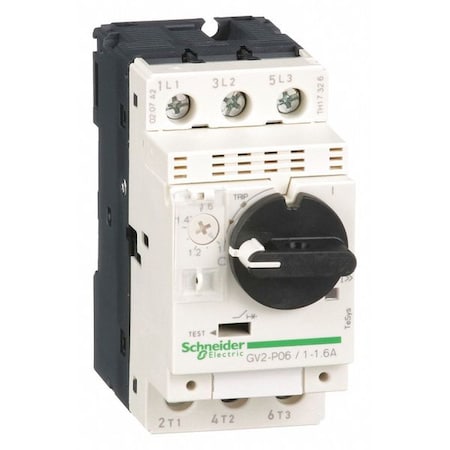

SCHNEIDER ELECTRIC 600-VAC 1.6-AMP GV2P06 Manual Starter 600VAC 1.6AMP IEC

SCHNEIDER ELECTRIC 600-VAC 1.6-AMP GV2P06 Manual Starter 600VAC 1.6AMP IECzoom

Attributes

Key Value
3-Phase HP Rating (Max.)3/4 hp
[Ics] Rated Service Sho.100 % 230/240 V AC 50/6.
[Ith] Conventional Free.1.6 A IEC 60947-4-1
[Ue] Rated Operational .690 V AC 50/60 Hz IEC 6.
[Ui] Rated Insulation V.690 V AC 50/60 Hz IEC 6.
[Uimp] Rated Impulse Wi.6 kV IEC 60947-2
Ambient Air Temperature.-20-60 ?C
Ambient Air Temperature.-40-80 ?C
Amperage Rating1-1.6A
Amps AC1 to 1.6
ApplicationMOTOR
BrandSchneider, Schneider El.
Breaking Capacity100 kA at 690 VAC, 100 .
California Proposition .Antimony oxide & Antimo.
Catalog NumberGV2P06
China Rohs RegulationProduct out of China Ro.
Circularity ProfileENVEOLI2211002
Climatic WithstandIACS E10
Colordark grey
ComponentIEC Starter
ConnectionSCREW CLAMP TERMINALS 2.
Connection TypeScrew Clamp Terminal
Control Typerotary handle
Control Voltage690 V
Country of OriginThailand, TH - Thailand
Current Rating1 to 1.6 A
Current Stock22
Depth3.819 in, 97 mm, 3.83 in
Description/Special Fea.Reliable Overload Prote.
Device Applicationmotor protection
Device Short NameGV2P
Dimensions3.504 x 1.772 x 3.819 ;.
ECCNEAR99
Electrical Durability100000 cycles AC-3 415 .
Enclosure NEMA RatingNo Enclosure
Environmental DisclosureENVPEP2211002
Eu Rohs DirectiveCompliant
Family SeriesSquare D Miscellaneous
Fire Resistance960 ?C IEC 60695-2-11
Fixing Mode35 mm symmetrical DIN r.
Gross Weight0.7 lbs
Height3.5 in, 89 mm
HP @ 1 Phase - 230V1/10 hp
HP @ 3 Phase - 460-575V3/4/1 hp, 0.75/1
HP @ 3 Phase - 480V3/4 hp
HP @ 3 Phase - 575V1 hp
Ik Degree Of ProtectionIK04
International ShippingNo
Ip Degree Of ProtectionIP20 IEC 60529
ItemManual Motor Starter
Item NumberGV2P06
Item TypeCIRCUIT BREAKER
Lead TimeExpected to ship in 1-2.
Length3.504 in
Line Rated Current1.6 A
Made in USANo
Magnetic Tripping Curre.22.5-22.5 A
ManufacturerSquare D, Schneider Ele.
Manufacturer Part Number224059
Max. Voltage600V AC
Mechanical Durability100000 cycles
Mechanical Robustnessshocks 30 Gn for 11 ms .
Motor FLA Range1-1.6 A
Motor Power Kw0.37-0.37 kW 400/415 V .
MountingScrew
MpnGV2P06
Net Weight0.0624 lbs
Network Frequency50/60 Hz IEC 60947-4-1
Network TypeAC
Number of Poles3
Operating Altitude6561.68 ft (2000 m)
OperatorRotary Knob
Overload Relay Amp Sett.1 to 1.6 A, 1 to 1.6A
Phase Failure Sensitivi.yes IEC 60947-4-1
Phase Loss SensitivityNo
Pilot LightYes
Poles Description3P
Power Dissipation Per P.2.5 W
Product CertificationsCCC || UL || CSA || EAC.
Product NameTeSys GV2 || TeSys Deca
Product Or Component Ty.motor circuit breaker
RangeTeSys Deca
Rated Dutycontinuous IEC 60947-4-1
Reach RegulationReference contains Subs.
Reset TypeAMBIENT COMPENSATED BIM.
SeriesTeSys GV2, TeSys Deca S.
Single-Phase HP Rating .1/10 hp
Size45 MM,89 MM,97 MM
SKUZO-G0526547
Special FeaturesIK04,IP20 CONFORMING TO.
Standard960 A Degrees C IEC 606.
StandardsEN/IEC 60947-2 || EN/IE.
Starter Amperage1-1.6 Amp
Starter Overload Amp Se.1-1.6 Amp
Starter PolesThree Pole
Starter TypeManual Motor Starter ; .
Sub BrandGV2P,TESYS,TESYS GV2
Sub ComponentTeSys GV2 Manual Starte.
SubCategoryElectrical
Suitability For Isolati.yes IEC 60947-1 ? 7-1-6
Terminal TypeScrew
Thermal Protection Adju.1-1.6 A IEC 60947-4-1
Tightening Torque1.7 N.m screw clamp ter.
Trip Unit Technologythermal-magnetic
UNSPSC39121521
UPC785901832881
UPC Code785901832881
Utilisation Categorycategory A IEC 60947-2 .
Voltage Rating690 V, 690 V AC 50/60 H.
Warranty18 months
Warranty DescriptionContractual Warranty:18.
WeeeThe product must be dis.
Width0 in, 45 mm, 1.75 in

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
AmazonSCB01LZTJYXG55.521In StockSchneider55.52 @ 1
thumbzoomTMEGV2P0670.541In StockSCHNEIDER ELECTRIC70.54 @ 1
AmazonTPB00CONPGWS73.01In Stock1Schneider Electric73.0 @ 1
thumbzoomkempstoncontrols.co.ukGV2-P0695.656333518Schneider95.6563335 @ 1
RS Delivers305-2161148.21211Schneider Electric148.212 @ 1
standardelectricsupply.com36534201.711In StockSchneider Electric201.71 @ 1
Graybar96073659202.798413Square D (Schneider Electric)202.7984 @ 1
thumbzoomblackhawksupply.comGV2P06206.211In StockSquare D206.21 @ 1
thumbzoommostelectric.comGV2P06219.7712SQUARE D/TELEMECANIQUE219.77 @ 1
thumbzoomGalcoGV2P06-SQD228.0612Square D0.7228.06 @ 1
thumbzoomgordonelectricsupply.comGV2P06245.01In Stock10SQUARE D245.0 @ 1
grainger.caTLQGV2P06249.982102521In StockSCHNEIDER ELECTRIC0.75249.98210252 @ 1
rspsupply.comSCHNEIDER GV2P06253.441In StockSchneider Electric253.44 @ 1
Mouser996-GV2P06253.7211Schneider Electric253.72 @ 1
thumbzoommayerelectric.comSQDGV2P06266.341In StockSQUARE D266.34 @ 1
thumbzoomZoroG0526547267.391In StockSchneider Electric0.75267.39 @ 1
thumbzoomsimsupply.comZO-G0526547275.82122Schneider275.82 @ 1
thumbzoomsustainablesupply.comC1182094279.141In StockSchneider Electric0.75279.14 @ 1
thumbzoomNational Supply Network69526408288.271In StockSchneider Electric288.27 @ 1
simplybreakers.comGV2P06288.991In StockSchneider Electric288.99 @ 1
us.rs-online.com70008417305.421In StockSchneider Electric305.42 @ 1
thumbzoomNewark15B8811327.11In StockSCHNEIDER ELECTRIC327.1 @ 1
thumbzoomcrescentelectric.com158141334.681In StockSchneider Electric334.68 @ 1
thumbzoomRaptor SuppliesAH2PQN429.5987281In StockSCHNEIDER ELECTRIC429.598728 @ 1
