Schneider Electric GV2P07

B00CONPHXQ

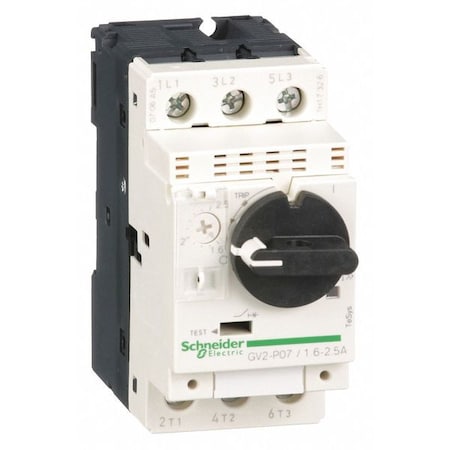

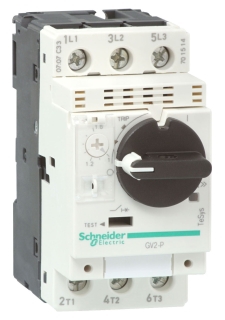

SCHNEIDER ELECTRIC 600-VAC 2.5-AMP GV2P07 Manual Starter 600VAC 2.5AMP IEC

SCHNEIDER ELECTRIC 600-VAC 2.5-AMP GV2P07 Manual Starter 600VAC 2.5AMP IECzoom

Attributes

Key Value
3-Phase HP Rating (Max.)1-1/2 hp
[Ics] Rated Service Sho.100 % 230/240 V AC 50/6.
[Ith] Conventional Free.2.5 A IEC 60947-4-1
[Ue] Rated Operational .690 V AC 50/60 Hz IEC 6.
[Ui] Rated Insulation V.690 V AC 50/60 Hz IEC 6.
[Uimp] Rated Impulse Wi.6 kV IEC 60947-2
Ambient Air Temperature.-20-60 ?C
Ambient Air Temperature.-40-80 ?C
Amperage Rating1.6-2.5A
Amps AC1.6 - 2.5
Applicationmotor protection
ApprovalsCSA, UL
BrandSchneider, Schneider El.
Breaking Capacity100 kA Icu 230/240 V AC.
California Proposition .Antimony oxide & Antimo.
Catalog NumberGV2P07
China Rohs RegulationProduct out of China Ro.
Circularity ProfileENVEOLI2211002
Climatic WithstandIACS E10
Colordark grey
ComponentIEC Starter
ConnectionSCREW CLAMP TERMINALS 2.
Connection TypeScrew Clamp Terminal
Control Typerotary handle
Control Voltage690 V
Country of OriginThailand, TH - Thailand
Current Rating1.6 to 2.5 A
Current Stock47
Depth3.819 in, 97 mm, 3.83 in
Description/Special Fea.Reliable Overload Prote.
Device Applicationmotor protection
Device Short NameGV2P
Dimensions3.504 x 1.772 x 3.819 ;.
ECCNEAR99
Electrical Durability100000 cycles AC-3 415 .
Enclosure NEMA RatingNo Enclosure
Environmental DisclosureENVPEP2211002
Eu Rohs DirectiveCompliant with Exemptio.
Family SeriesSquare D Starters
Fire Resistance960 ?C IEC 60695-2-11
Fixing Mode35 mm symmetrical DIN r.
Gross Weight0.74 lbs
Height3.5 in, 89 mm
HP @ 1 Phase - 230V1/6 hp
HP @ 3 Phase - 208V1/2 hp
HP @ 3 Phase - 240V1/2 hp
HP @ 3 Phase - 460-575V1/1 1/2 hp, 1/1-1/2
HP @ 3 Phase - 480V1 hp
HP @ 3 Phase - 575V1 1/2 hp
Ik Degree Of ProtectionIK04
International ShippingNo
Ip Degree Of ProtectionIP20 IEC 60529
ItemManual Motor Starter
Item NumberGV2P07
Item Typemotor circuit breaker
Lead TimeExpected to ship in 1-2.
Length3.504 in
Line Rated Current2.5 A
Made in USANo
Magnetic Tripping Curre.33.5-33.5 A
ManufacturerSquare D, Schneider Ele.
Manufacturer Part Number224060
Max. Voltage600V AC
Mechanical Durability100000 cycles
Mechanical Robustnessshocks 30 Gn for 11 ms .
Motor FLA Range1.6 to 2.5 A
Motor Power Kw0.75-0.75 kW 400/415 V .
MountingScrew
MpnGV2P07
Net Weight0.69 lbs
Network Frequency50/60 Hz IEC 60947-4-1
Network TypeAC
Number of Poles3
Operating Altitude6561.68 ft (2000 m)
OperatorRotary Knob
Overload Relay Amp Sett.1.6 to 2.5 A, 1.6 to 2..
Phase3
Phase Failure Sensitivi.yes IEC 60947-4-1
Phase Loss SensitivityNo
Pilot LightYes
Poles Description3P
Power Dissipation Per P.2.5 W
Product CertificationsCCC || UL || CSA || EAC.
Product NameTeSys GV2 || TeSys Deca
Product Or Component Ty.motor circuit breaker
RangeTeSys Deca
Rated Dutycontinuous IEC 60947-4-1
Reach RegulationReference contains Subs.
Reset TypeAMBIENT COMPENSATED BIM.
RoHSYes
Rohs Exemption Informat.Yes
SeriesTeSys GV2, TeSys Deca S.
Single-Phase HP Rating .1/6 hp
Size45 MM,89 MM,97 MM
SKUZO-G2210442
Special FeaturesIK04,IP20 CONFORMING TO.
Standard960 A Degrees C IEC 606.
StandardsEN/IEC 60947-2 || EN/IE.
Starter Amperage2.5 Amp
Starter Overload Amp Se.1.6-2.5 Amp
Starter PolesThree Pole
Starter TypeManual Motor Starter ; .
Sub BrandTeSys GV2;TeSys Deca;Te.
Sub ComponentTeSys GV2 Manual Starte.
SubCategoryElectrical
Suitability For Isolati.yes IEC 60947-1 ? 7-1-6
Sustainable Offer StatusGreen Premium product
Terminal TypeScrew
Thermal Protection Adju.1.6-2.5 A IEC 60947-4-1
Tightening Torque1.7 N.m screw clamp ter.
Trip Unit Technologythermal-magnetic
UNSPSC39121521
UPC785901832898
UPC Code785901832898
Utilisation Categorycategory A IEC 60947-2 .
Voltage Rating690 V, 690 V AC 50/60 H.
Warranty18 months
Warranty DescriptionContractual Warranty:18.
WeeeThe product must be dis.
Width0 in, 45 mm, 1.75 in

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomTMEGV2P0770.54123SCHNEIDER ELECTRIC70.54 @ 1
AmazonTPB00CONPHXQ74.01In Stock1SCHNEIDER ELECTRIC74.0 @ 1
thumbzoomkempstoncontrols.co.ukGV2-P0795.656333515Schneider95.6563335 @ 1
thumbzoomebay.com_surplusindustrielGV2P07143.371In StockSCHNEIDER ELECTRIC143.37 @ 1
RS Delivers305-2177148.2121In StockSchneider Electric148.212 @ 1
thumbzoomebay.com_nate_iscGV2P07174.981In StockSCHNEIDER ELECTRIC174.98 @ 1
thumbzoomebay.com_obsolutionllcGV2P07178.871In StockSCHNEIDER ELECTRIC178.87 @ 1
thumbzoomebay.com_210013662GV2P07199.991In StockSCHNEIDER ELECTRIC199.99 @ 1
thumbzoomblackhawksupply.comGV2P07206.211In StockSquare D206.21 @ 1
thumbzoomZoroG2210442218.56170Schneider Electric0.8218.56 @ 1
thumbzoommostelectric.comGV2P07219.7718SQUARE D/TELEMECANIQUE219.77 @ 1
thumbzoomebay.com_tcb3162GV2P07219.941In StockSCHNEIDER ELECTRIC219.94 @ 1
thumbzoomsimsupply.comZO-G2210442243.87147Schneider243.87 @ 1
thumbzoomgordonelectricsupply.comGV2P07245.01In Stock10SQUARE D245.0 @ 1
grainger.caTLQGV2P07249.982102521In StockSCHNEIDER ELECTRIC0.8249.98210252 @ 1
rspsupply.comSCHNEIDER GV2P07253.441In StockSchneider Electric253.44 @ 1
thumbzoomGalcoGV2P07-SQD254.9911Square D0.74254.99 @ 1
Graybar95029082260.961In StockSquare D (Schneider Electric)260.96 @ 1
thumbzoommidwestapplianceparts.comGV2P07-SQ-P260.981In StockSquared260.98 @ 1
thumbzoomebay.com_rgb_automatykaGV2P07264.451In StockSCHNEIDER ELECTRIC264.45 @ 1
thumbzoommayerelectric.comSQDGV2P07266.3416SQUARE D266.34 @ 1
thumbzoomebay.com_ironwingsalesGV2P07268.991In StockSCHNEIDER ELECTRIC268.99 @ 1
thumbzoomebay.com_mroglobalsolutionsGV2P07274.991In StockSCHNEIDER ELECTRIC274.99 @ 1
thumbzoomNational Supply Network69526739288.271In StockSchneider Electric288.27 @ 1
us.rs-online.com70008418306.12126Schneider Electric306.12 @ 1
thumbzoomNewark15B8812327.811In StockSCHNEIDER ELECTRIC327.81 @ 1
thumbzoomebay.com_plccenterGV2P07330.991In StockSCHNEIDER ELECTRIC330.99 @ 1
thumbzoomcrescentelectric.com115172334.68111Schneider Electric334.68 @ 1
simplybreakers.comGV2P07355.991In StockSchneider Electric355.99 @ 1
thumbzoomRaptor SuppliesAH2PQP397.0838431In StockSCHNEIDER ELECTRIC397.083843 @ 1
