Schneider Electric GV2P08

B002QI1HYW

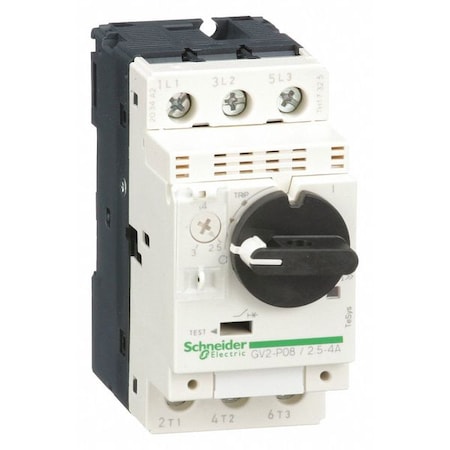

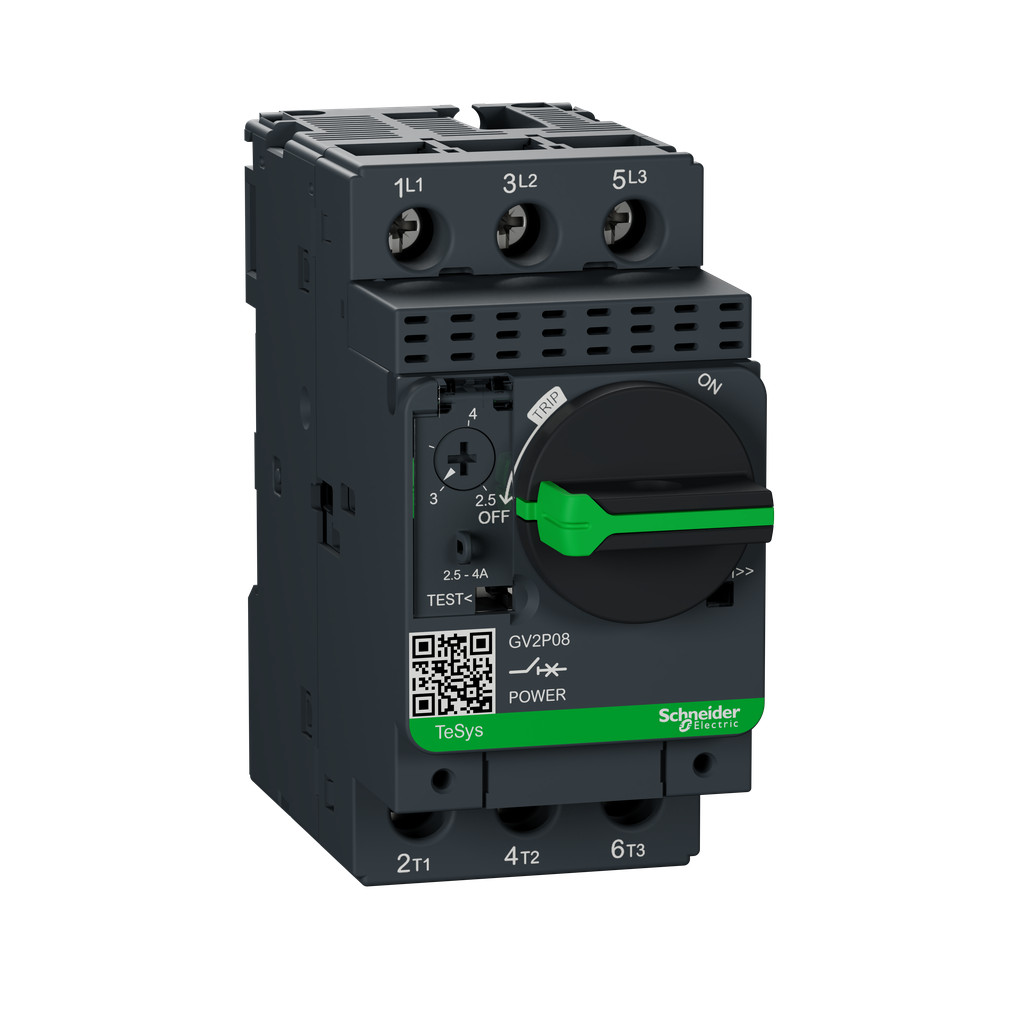

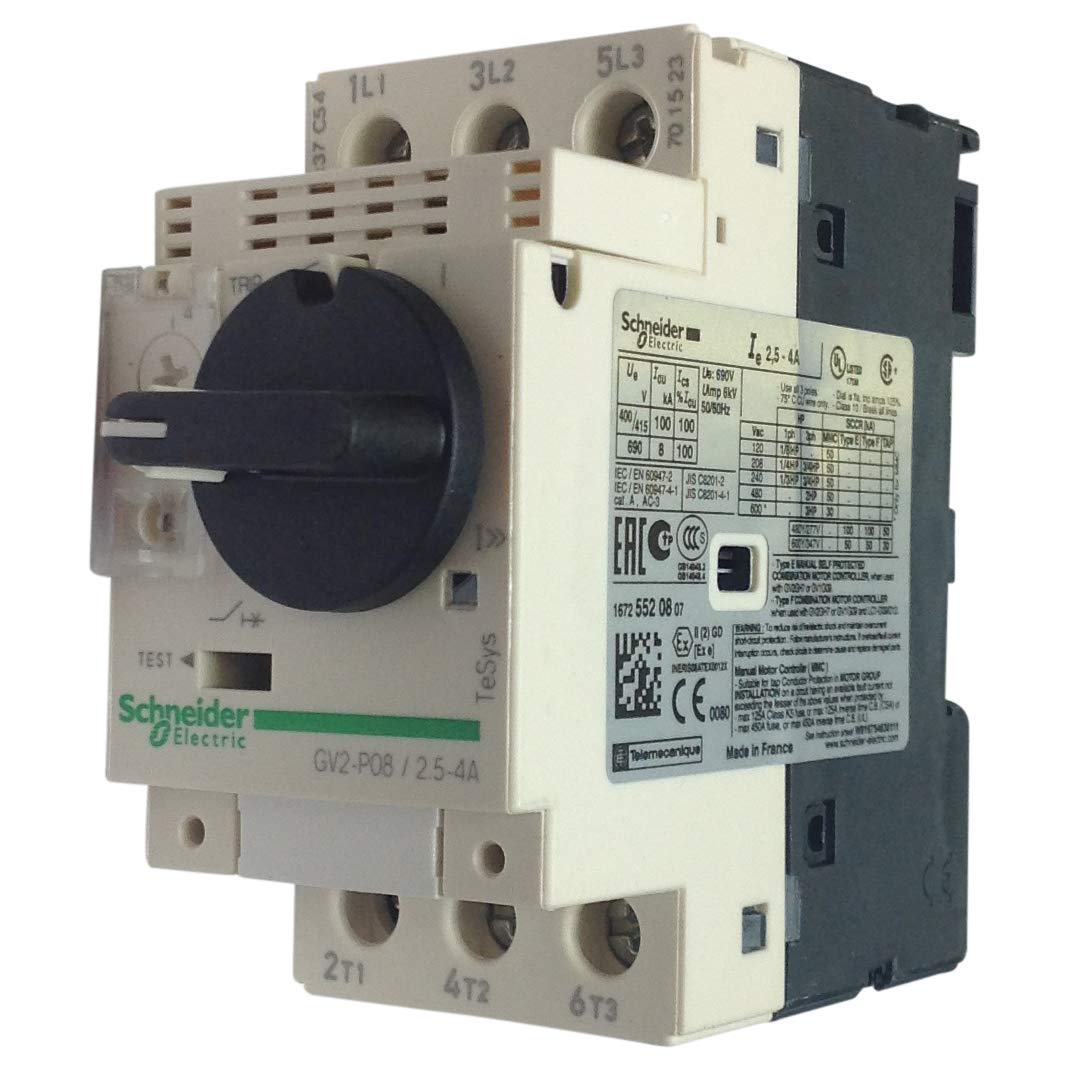

Manual Motor Starter, Knob, 2.5 to 4A, 3P

Manual Motor Starter, Knob, 2.5 to 4A, 3Pzoom

Attributes

Key Value
3-Phase HP Rating (Max.)3 hp
[Ics] Rated Service Sho.100 % 230/240 V AC 50/6.
[Ith] Conventional Free.4 A IEC 60947-4-1
[Ue] Rated Operational .690 V AC 50/60 Hz IEC 6.
[Ui] Rated Insulation V.690 V AC 50/60 Hz IEC 6.
[Uimp] Rated Impulse Wi.6 kV IEC 60947-2
Actuator TypeRotary Knob
Ambient Air Temperature.-20-60 ?C
Ambient Air Temperature.-40-80 ?C
Amperage2.5-4
Amperage Rating2.5-4A
Amps AC2.5 to 4
ApplicationMOTOR
ApprovalsCSA, UL
BrandSquare D, Schneider Ele.
Breaking Capacity100 kA Icu 230/240 V AC.
California Proposition .Antimony oxide & Antimo.
Catalog NumberGV2P08
China Rohs RegulationProduct out of China Ro.
Circularity ProfileENVEOLI2211002
Climatic WithstandIACS E10
ColorDark Grey
ComponentIEC Starter
ConnectionSCREW CLAMP TERMINALS 2.
Connection TypeScrew Clamp, Screw Clam.
Control Typerotary handle
Control Voltage690 V
Country of OriginThailand, TH - Thailand
Current Rating2.5 to 4 A
Depth3.819 in, 97 mm, 3.83 in
Description/Special Fea.Reliable Overload Prote.
Device Applicationmotor protection
Device Short NameGV2P
Dimensions3.504 x 1.772 x 3.819 ;.
ECCNEAR99
Electrical Durability100000 cycles AC-3 415 .
Enclosure NEMA RatingNo Enclosure
Environmental DisclosureENVPEP2211002
Eu Rohs DirectiveCompliant
Family SeriesSquare D Starters
Fire Resistance960 ?C IEC 60695-2-11
Fixing Mode35 mm symmetrical DIN r.
FunctionMotor Starter
Gross Weight0.74 lbs
Height3.5 in, 89 mm
HP @ 1 Phase - 120V1/8 hp
HP @ 1 Phase - 230V1/3 hp
HP @ 3 Phase - 208V3/4 hp
HP @ 3 Phase - 240V1 hp
HP @ 3 Phase - 460-575V2/3, 2/3 hp
HP @ 3 Phase - 480V2 hp
HP @ 3 Phase - 575V3 hp
Ik Degree Of ProtectionIK04
Ip Degree Of ProtectionIP20 IEC 60529
ItemManual Motor Starter
Item NumberGV2P08
Item TypeCIRCUIT BREAKER
Length3.504 in
Line Rated Current4 A
Made in USANo
Magnetic Tripping Curre.51-51 A
ManufacturerSquare D, Schneider Ele.
Manufacturer Part Number224061
Max. Voltage600V AC
Mechanical Durability100000 cycles
Mechanical Robustnessshocks 30 Gn for 11 ms .
Motor FLA Range2.5-4 A
Motor Power Kw1.1-1.1 kW 400/415 V AC.
MountingScrew
Mounting TypeDin Rail, Panel
MpnGV2P08
Net Weight0.69 lbs
Network Frequency50/60 Hz IEC 60947-4-1
Network TypeAC
Number of Poles3
Operating Altitude6561.68 ft (2000 m)
OperatorRotary Knob
Overload Relay Amp Sett.2.5 to 4A, 2.5 to 4 A
Phase1, 3
Phase Failure Sensitivi.yes IEC 60947-4-1
Phase Loss SensitivityNo
Pilot LightYes
Poles3
Poles Description3P
Power Dissipation Per P.2.5 W
Primary TypeMotor Starter
Product CertificationsCCC || UL || CSA || EAC.
Product NameTeSys GV2 || TeSys Deca
Product Or Component Ty.motor circuit breaker
ProtectionThermal Magnetic
RangeTeSys Deca
Rated Dutycontinuous IEC 60947-4-1
Reach RegulationReference contains Subs.
Reset TypeAMBIENT COMPENSATED BIM.
RoHSYes
SeriesTeSys GV2, TeSys Deca S.
Single-Phase HP Rating .1/3 hp
Size45 MM,89 MM,97 MM
Special FeaturesIK04,IP20 CONFORMING TO.
Standard960 A Degrees C IEC 606.
StandardsEN/IEC 60947-2 || EN/IE.
Starter Amperage2.5-4 Amp
Starter Overload Amp Se.2.5-4 Amp
Starter PolesThree Pole
Starter TypeManual Motor Starter ; .
Sub BrandGV2P,TESYS,TESYS GV2
Sub ComponentTeSys GV2 Manual Starte.
Suitability For Isolati.yes IEC 60947-1 ? 7-1-6
Temperature Rating-20 to 60?C
Terminal TypeScrew
Thermal Protection Adju.2.5-4 A IEC 60947-4-1
Tightening Torque1.7 N.m screw clamp ter.
Trip Unit Technologythermal-magnetic
UNSPSC39121521
Upc785901832935
UPC785901832935
UPC Code785901832935
Utilisation Categorycategory A IEC 60947-2 .
Voltage690VAC
Voltage Rating690 V, 690 V AC 50/60 H.
Warranty18 months
Warranty DescriptionContractual Warranty:18.
WeeeThe product must be dis.
Width0 in, 45 mm, 1.75 in

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomAmazonSCB01LZHQNPW62.01In StockSchneider62.0 @ 1
industrialrefrigerationparts.comGV2P0864.381In StockSchneider Electric64.38 @ 1
thumbzoomebay.com_kelsegoodma-4GV2P0870.01In StockSCHNEIDER ELECTRIC70.0 @ 1
thumbzoomTMEGV2P0870.031126SCHNEIDER ELECTRIC70.03 @ 1
thumbzoomebay.com_savingongoodsGV2P0879.941In StockSCHNEIDER ELECTRIC79.94 @ 1
thumbzoomkempstoncontrols.co.ukGV2-P0895.656333514Schneider95.6563335 @ 1
thumbzoomebay.com_automationrecoveryGV2P08123.111In StockSCHNEIDER ELECTRIC123.11 @ 1
thumbzoomsuperbreakers.comGV2P08124.991In StockSquare D124.99 @ 1
RS Delivers305-2183148.212133Schneider Electric148.212 @ 1
thumbzoomebay.com_kagemaa-gmbhGV2P08155.41In StockSCHNEIDER ELECTRIC155.4 @ 1
thumbzoomebay.com_abi-mooGV2P08162.671In StockSCHNEIDER ELECTRIC162.67 @ 1
thumbzoomebay.com_northeast-partsGV2P08163.01In StockSCHNEIDER ELECTRIC163.0 @ 1
thumbzoomebay.com_plccenterGV2P08174.91In StockSCHNEIDER ELECTRIC174.9 @ 1
AmazonTPB0078S2ZOQ184.01In Stock2Schneider184.0 @ 1
standardelectricsupply.com89749197.68139Schneider Electric197.68 @ 1
thumbzoomebay.com_pipe44GV2P08198.991In StockSCHNEIDER ELECTRIC198.99 @ 1
thumbzoomebay.com_marj_ma_xmock9jcGV2P08199.991In StockSCHNEIDER ELECTRIC199.99 @ 1
Graybar96073652201.2864132Square D (Schneider Electric)201.2864 @ 1
thumbzoomebay.com_aps-controlsGV2P08209.991In StockSCHNEIDER ELECTRIC209.99 @ 1
thumbzoomblackhawksupply.comGV2P08221.741In StockSquare D221.74 @ 1
thumbzoomgordonelectricsupply.comGV2P08245.01In Stock10SQUARE D245.0 @ 1
thumbzoomebay.com_aeliya110GV2P08249.981In StockSCHNEIDER ELECTRIC249.98 @ 1
thumbzoomNewark15B8813252.831In StockSCHNEIDER ELECTRIC252.83 @ 1
rspsupply.comSCHNEIDER GV2P08253.441In StockSchneider Electric253.44 @ 1
thumbzoomZoroG1774586254.39182Schneider Electric0.75254.39 @ 1
grainger.caSQDGV2P08259.453870821In StockSQUARE D0.75259.45387082 @ 1
thumbzoomsustainablesupply.comC1182096264.081In StockSchneider Electric0.75264.08 @ 1
thumbzoomebay.com_rgb_automatykaGV2P08264.811In StockSCHNEIDER ELECTRIC264.81 @ 1
thumbzoommayerelectric.comSQDGV2P08266.3413SQUARE D266.34 @ 1
thumbzoomGalcoGV2P08-SQD267.8612Square D0.74267.86 @ 1
thumbzoommidwestapplianceparts.comGV2P08-SQ-P270.561In StockSquared270.56 @ 1
thumbzoomebay.com_mroglobalsolutionsGV2P08286.991In StockSCHNEIDER ELECTRIC286.99 @ 1
thumbzoomNational Supply Network69526747287.331In StockSchneider Electric287.33 @ 1
us.rs-online.com70007455303.77120Schneider Electric303.77 @ 1
ptacsolutions.comGV2P08331.21In StockSchneider Electric (Square D)331.2 @ 1
thumbzoomcrescentelectric.com183376334.68193Schneider Electric334.68 @ 1
simplybreakers.comGV2P08392.991In StockSchneider Electric392.99 @ 1
thumbzoomRaptor SuppliesAH2PQQ398.21236651In StockSCHNEIDER ELECTRIC398.2123665 @ 1
