Schneider Electric GV2P21

B000WL0Y4O

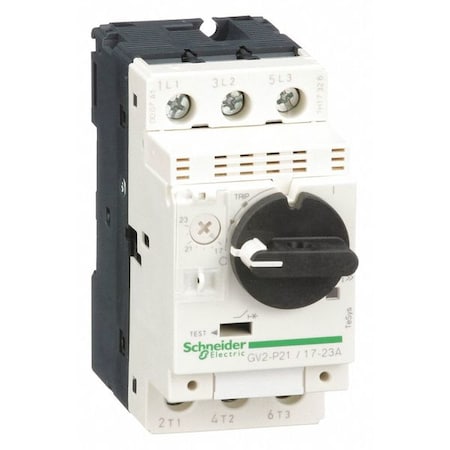

Manual Motor Starter, Knob, 17 to 23A, 3P

Manual Motor Starter, Knob, 17 to 23A, 3Pzoom

Attributes

Key Value
3-Phase HP Rating (Max.)20 hp
Amperage Rating17-23A
Amps AC17 to 23
ApplicationMOTOR
ApprovalsCSA, UL
BrandSchneider Electric
Breaking Capacity4 kA at 690 V
Catalog NumberGV2P21
ComponentIEC Starter
ConnectionSCREW CLAMP TERMINALS 2.
Connection TypeScrew Clamp Terminal
Control Voltage690 V
Country of OriginThailand, TH - Thailand
Current Rating17 to 23 A
Current Stock58
Depth3.819 in, 3.83 in
Description/Special Fea.Reliable Overload Prote.
Dimensions3.504 x 1.772 x 3.819 ;.
ECCNEAR99
Enclosure NEMA RatingNo Enclosure
Family SeriesSquare D Starters
FunctionMotor Starter
Gross Weight0.75 lbs
Height3.5 in
HP @ 1 Phase - 120V1 1/2 hp
HP @ 1 Phase - 230V3 hp
HP @ 3 Phase - 208V5 hp
HP @ 3 Phase - 240V7 1/2 hp
HP @ 3 Phase - 460-575V15/20, 15/20 hp
HP @ 3 Phase - 480V15 hp
HP @ 3 Phase - 575V20 hp
International ShippingNo
ItemManual Motor Starter
Item NumberGV2P21
Item TypeCIRCUIT BREAKER
Length3.504 in
Made in USANo
ManufacturerSquare D, Schneider Ele.
Manufacturer Part Number224066
Max. Voltage600V AC
Motor FLA Range17-23 A
MountingScrew
MpnGV2P21
Net Weight0.0624 lbs
Number of Poles3
OperatorRotary Knob
Overload Relay Amp Sett.17 to 23A, 17 to 23 A
Phase3
Phase Loss SensitivityNo
Pilot LightYes
Primary TypeMotor Starter
Reset TypeAMBIENT COMPENSATED BIM.
RoHSYes
SeriesTeSys GV2, TeSys Deca S.
Single-Phase HP Rating .3 hp
Size45 MM,89 MM,97 MM
SKUZO-G3259356
Special FeaturesIK04,IP20 CONFORMING TO.
Standard960 A Degrees C IEC 606.
StandardsCSA, UL
Starter Amperage23 Amp
Starter Overload Amp Se.17-23 Amp
Starter PolesThree Pole
Starter TypeManual Motor Starter ; .
Sub BrandGV2P,TESYS,TESYS GV2
Sub ComponentTeSys GV2 Manual Starte.
SubCategoryElectrical
Terminal TypeScrew
UNSPSC39121521
UPC785901832966
UPC Code785901832966
Voltage Rating690 V, 690 V AC 50/60 H.
Warranty DescriptionContractual Warranty:18.
Width0 in, 1.75 in

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomTMEGV2P2191.95120SCHNEIDER ELECTRIC91.95 @ 1
AmazonTPB00CONB0KU129.01In Stock2SCHNEIDER ELECTRIC129.0 @ 1
RS Delivers608-8523189.9841In StockSchneider Electric189.984 @ 1
thumbzoomkempstoncontrols.co.ukGV2-P21204.65382613Schneider204.653826 @ 1
standardelectricsupply.com88330231.041In StockSchneider Electric231.04 @ 1
thumbzoomNewark15B8818261.661In StockSCHNEIDER ELECTRIC261.66 @ 1
thumbzoomblackhawksupply.comGV2P21264.261In StockSquare D264.26 @ 1
thumbzoomgordonelectricsupply.comGV2P21292.01In Stock10SQUARE D292.0 @ 1
thumbzoomGalcoGV2P21-SQD300.72113Square D0.75300.72 @ 1
steinerelectric.com63262302.381In StockSquare D?302.38 @ 1
rspsupply.comSCHNEIDER GV2P21302.391In StockSchneider Electric302.39 @ 1
thumbzoomZoroG3259356307.32159Schneider Electric0.82307.32 @ 1
Graybar96047865311.3611Square D (Schneider Electric)311.36 @ 1
thumbzoomsustainablesupply.comC1182101317.971In StockSchneider Electric0.82317.97 @ 1
thumbzoommidwestapplianceparts.comGV2P21-SQ-P322.451In StockSquared322.45 @ 1
grainger.caTLQGV2P21328.848182481In StockSCHNEIDER ELECTRIC0.82328.84818248 @ 1
thumbzoomNational Supply Network69526804334.691In StockSchneider Electric334.69 @ 1
thumbzoomsimsupply.comZO-G3259356353.91In StockSchneider Electric353.9 @ 1
simplybreakers.comGV2P21360.991In StockSchneider Electric360.99 @ 1
us.rs-online.com70007460399.26112Schneider Electric399.26 @ 1
thumbzoomcrescentelectric.com107834399.31151Schneider Electric399.31 @ 1
ptacsolutions.comGV2P21419.7311Schneider Electric (Square D)419.73 @ 1
thumbzoomRaptor SuppliesAH2PQW539.91469351In StockSCHNEIDER ELECTRIC539.9146935 @ 1
