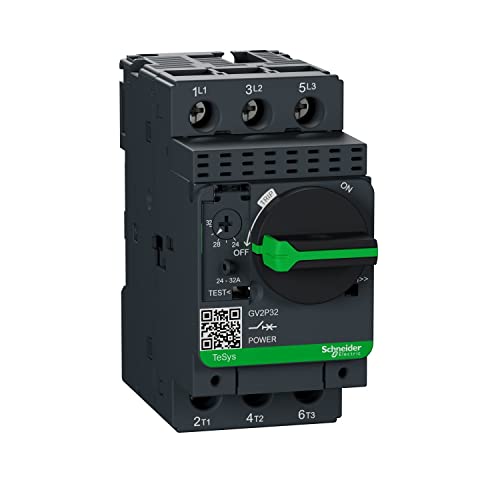

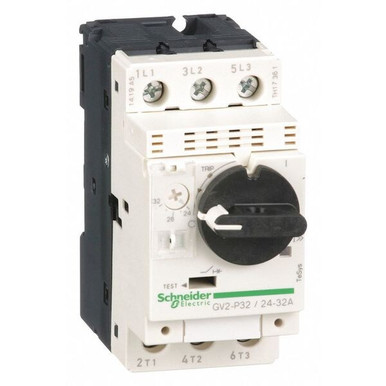

Schneider Electric GV2P32

B000WL4ZRG

Manual Motor Starter, Knob, 24 to 32A, 3P

Manual Motor Starter, Knob, 24 to 32A, 3Pzoom

Attributes

Key Value
3-Phase HP Rating (Max.)25 hp
[Ics] Rated Service Sho.100 % 230/240 V AC 50/6.
[Ith] Conventional Free.32 A IEC 60947-4-1
[Ue] Rated Operational .690 V AC 50/60 Hz IEC 6.
[Ui] Rated Insulation V.690 V AC 50/60 Hz IEC 6.
[Uimp] Rated Impulse Wi.6 kV IEC 60947-2
Ambient Air Temperature.-20-60 ?C
Ambient Air Temperature.-40-80 ?C
Amperage Rating24-32A
ApplicationMOTOR
ApprovalsCSA, UL
Best Sellers Rank#1,676,559 in Industria.
BrandSchneider Electric
Breaking Capacity4 kA at 690 V, 100 kA I.
California Proposition .Antimony oxide & Antimo.
Catalog NumberGV2P32
China Rohs RegulationProduct out of China Ro.
Circularity ProfileENVEOLI2211002
Climatic WithstandIACS E10
Colordark grey
ComponentIEC Starter
ConnectionSCREW CLAMP TERMINALS 2.
Connection TypeScrew Clamp Terminal
Control Typerotary handle
Control Voltage690 V
Country of OriginThailand, TH - Thailand
Current Rating24 to 32 A
Current Stock131
Date First AvailableJuly 15, 2015
Depth3.819 in, 97 mm, 3 53/6.
Description/Special Fea.Reliable Overload Prote.
Device Applicationmotor protection
Device Short NameGV2P
Dimensions3.504 x 1.772 x 3.819 ;.
ECCNEAR99
Electrical Durability100000 cycles AC-3 415 .
Enclosure NEMA RatingNo Enclosure
Environmental DisclosureENVPEP2211002
Eu Rohs DirectiveCompliant with Exemptio.
Family SeriesSquare D Starters
Fire Resistance960 ?C IEC 60695-2-11
Fixing Mode35 mm symmetrical DIN r.
FunctionMotor Starter
Gross Weight0.745 lbs
Height89 mm, 3 1/2 in
HP @ 1 Phase - 120V2 hp
HP @ 1 Phase - 230V5 hp
HP @ 3 Phase - 208V10 hp
HP @ 3 Phase - 240V10 hp
HP @ 3 Phase - 460-575V20/30
HP @ 3 Phase - 480V20 hp
HP @ 3 Phase - 575V30 hp
Ik Degree Of ProtectionIK04
International ShippingNo
Ip Degree Of ProtectionIP20 IEC 60529
Is Discontinued By Manu.No
ItemManual Motor Starter
Item Dimensions LxWxH19.69 x 19.69 x 19.69 i.
Item model numberGV2P32
Item NumberGV2P32
Item TypeCIRCUIT BREAKER
Item Weight3.52 ounces
Length3.504 in
Line Rated Current32 A
Made in USANo
Magnetic Tripping Curre.416-416 A
ManufacturerSquare D, Schneider Ele.
Manufacturer Part Number224068
Max. Voltage600V AC
Mechanical Durability100000 cycles
Mechanical Robustnessshocks 30 Gn for 11 ms .
Motor FLA Range24-32 A
Motor Power Kw15-15 kW 400/415 V AC 5.
MountingScrew
MpnGV2P32
Net Weight0.7 lbs
Network Frequency50/60 Hz IEC 60947-4-1
Network TypeAC
Number of Poles3
Operating Altitude6561.68 ft (2000 m)
OperatorRotary Knob
Overload Relay Amp Sett.24 to 32 A
Phase3
Phase Failure Sensitivi.yes IEC 60947-4-1
Phase Loss SensitivityNo
Pilot LightYes
Poles Description3P
Power Dissipation Per P.2.5 W
Primary TypeMotor Starter
Product CertificationsCCC || UL || CSA || EAC.
Product Dimensions19.69 x 19.69 x 19.69 i.
Product NameTeSys GV2 || TeSys Deca
Product Or Component Ty.motor circuit breaker
Product with faster shi.true
RangeTeSys Deca
Rated Dutycontinuous IEC 60947-4-1
Reach RegulationReference contains Subs.
Reset TypeAMBIENT COMPENSATED BIM.
RoHSYes
Rohs Exemption Informat.Yes
SeriesTeSys GV2, TeSys Deca S.
Shippingundefined (Fixed Shippi.
Single-Phase HP Rating .5 hp
Size45 MM,89 MM,97 MM
SKUZO-G2527637
Special FeaturesIK04,IP20 CONFORMING TO.
Standard960 A Degrees C IEC 606.
StandardsEN/IEC 60947-2 || EN/IE.
Starter Amperage32 Amp
Starter Overload Amp Se.24-32 Amp
Starter PolesThree Pole
Starter TypeManual Motor Starter ; .
Sub BrandGV2P,TESYS,TESYS GV2
Sub ComponentTeSys GV2 Manual Starte.
SubCategoryElectrical
Suitability For Isolati.yes IEC 60947-1 ? 7-1-6
Sustainable Offer StatusGreen Premium product
Terminal TypeScrew
Thermal Protection Adju.24-32 A IEC 60947-4-1
Tightening Torque1.7 N.m screw clamp ter.
Trip Unit Technologythermal-magnetic
UNSPSC39121521
UPC785901265221
UPC Code785901265221
Utilisation Categorycategory A IEC 60947-2 .
Voltage Rating690 V, 690 V AC 50/60 H.
Warranty18 months
Warranty DescriptionContractual Warranty:18.
WeeeThe product must be dis.
Width0 in, 45 mm, 1 3/4 in

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
AmazonTPB000WL4ZRG99.01In Stock1Schneider Electric99.0 @ 1
thumbzoomTMEGV2P32154.46114SCHNEIDER ELECTRIC154.46 @ 1
thumbzoomkempstoncontrols.co.ukGV2-P32160.417939516Schneider160.4179395 @ 1
Graybar22082439240.1728120Square D (Schneider Electric)240.1728 @ 1
standardelectricsupply.com640455240.671In StockSchneider Electric240.67 @ 1
RS Delivers608-8545251.316112Schneider Electric251.316 @ 1
thumbzoomblackhawksupply.comGV2P32264.261In StockSquare D264.26 @ 1
thumbzoomsustainablesupply.comC1182103282.631In StockSchneider Electric0.79282.63 @ 1
hvacdiscountstore.comSCH--GV2P32288.891In StockSCHNEIDER ELECTRIC (SQUARE D)288.89 @ 1
thumbzoomgordonelectricsupply.comGV2P32292.01In Stock10SQUARE D292.0 @ 1
thumbzoomNewark79C7963297.741In StockSCHNEIDER ELECTRIC297.74 @ 1
rspsupply.comSCHNEIDER GV2P32302.391In StockSchneider Electric302.39 @ 1
thumbzoomGalcoGV2P32-SQD305.1512Square D0.745305.15 @ 1
thumbzoommayerelectric.comSQDGV2P32317.781In StockSQUARE D317.78 @ 1
thumbzoommidwestapplianceparts.comGV2P32-SQ-P322.451In StockSquared322.45 @ 1
thumbzoomhomeessentialsdirect.comGV2P32324.321In StockSCHNEIDER ELECTRIC0.22324.32 @ 1
thumbzoomNational Supply Network69526812334.691In StockSchneider Electric334.69 @ 1
AmazonSCB079Q8CKBR342.561In StockSquare D. Company342.56 @ 1
thumbzoomindustrialstores.comGV2P32353.0215Square D353.02 @ 1
thumbzoomVoomi SupplyGV2P32353.991In StockSchneider Electric (Square D)353.99 @ 1
us.rs-online.com70007462387.341131Schneider Electric387.34 @ 1
ptacsolutions.comGV2P32394.721In StockSchneider Electric (Square D)394.72 @ 1
thumbzoomcrescentelectric.com136332399.31142Schneider Electric399.31 @ 1
simplybreakers.comGV2P32455.991In StockSchneider Electric455.99 @ 1
thumbzoomsimsupply.comZO-G2527637473.621In StockSchneider Electric473.62 @ 1
grainger.caSQDGV2P32539.85450281In StockSCHNEIDER ELECTRIC0.79539.8545028 @ 1
thumbzoomRaptor SuppliesAH2PQY547.98196051In StockSCHNEIDER ELECTRIC547.9819605 @ 1
thumbzoomZoroG309834235570.9911Square D570.99 @ 1
