Schneider Electric LA1KN22

B0018LDP5M

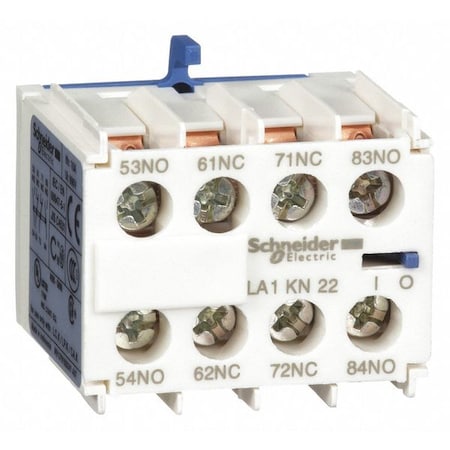

IEC Contact Block, 10A, 2NC, 2NO

IEC Contact Block, 10A, 2NC, 2NOzoom

Attributes

Key Value
[Ith] Conventional Free.10 A (at 50 ?C)
[Ue] Rated Operational .690 V AC 25...400 Hz
[Ui] Rated Insulation V.690 V IEC 60947-5-1 || .
Ambient Air Temperature.-25-50 ?C
Ambient Air Temperature.-50-80 ?C
Amps10 A
ApplicationTeSys K LC1K;TeSys K CA.
Auxiliary Contacts Oper.instantaneous
BrandSchneider Electric
Catalog NumberLA1KN22
China Rohs RegulationPro-active China RoHS d.
Circularity ProfileN/A
CodeX to Z
ComponentAuxiliary Contact Block
Connectionscrew clamp terminals 1.
Connection TypeScrew Clamp
Connections - Terminalsscrew clamp terminals 1.
Contact Configuration2 NO-2 NC, 2 NO + 2 NC;.
Contact Current Rating10 A
Contact Operation2NO/2NC
Contact Rating10 A 50 A Degrees C
Control Voltage600
Country of OriginID - Indonesia, Indones.
Depth35 mm
Device Short NameLA1
ECCNEAR99
Environmental Character.normal environment
Environmental DisclosureENVPEP2106022
Eu Rohs DirectiveCompliant
Family NameTeSys Family
FeaturesMercury Free, Toxic Hea.
For Use WithLC1K06; LC1K09; LC1K12;.
Height30 mm
Insulation Resistance> 10 MOhm
Ip Degree Of ProtectionIP20 conforming to IEC .
ItemAuxiliary Contact Block
Item TypeAuxiliary Contact Block
Made in USANo
ManufacturerSchneider Electric
Maximum Voltage600 VAC
Mercury FreeYes
Minimum Switching Curre.5 mA
Minimum Switching Volta.17 V
MountingFront, Clip
Mounting LocationFront
Mounting StyleFront Mount
Net Weight0.045 kg
Non Overlap Distance0.5 mm
Number of Contacts4
Number of NC Aux. Conta.2
Number of NO Aux. Conta.2
Operating Altitude6561.68 ft (2000 m)
Operating Temperature-25-50 A Degrees C
Permissible Short-Time .80 A 1 s || 60 A 500 ms.
Pole Contact Composition2 NO + 2 NC
Product CertificationsCB Scheme || CCC || UL .
Product NameTeSys K
Product Or Component Ty.Auxiliary Contact Block
Protective TreatmentTC IEC 60068
RangeTeSys
Range CompatibilityTeSys K LC1K || TeSys K.
Reach Free Of SvhcYes
Reach RegulationFree of Substances of V.
Rohs Exemption Informat.Yes
SeriesTeSys Micra Series
Size35 mm
Special Featuresnormal environment
StandardIECEE CB Scheme;UL;CSA;.
StandardsEN/IEC 60947-5-1 || UL .
Starter Actionsinstantaneous
Starter Amperage10 Amp
Starter Auxiliary Conta.2 NO + 2 NC
Starter ModelLA1
Sub BrandTeSys K
Sub ComponentTeSys K Auxiliary Conta.
Sustainable Offer StatusGreen Premium product
Terminal TypeScrew Terminal
Tightening Torque1.3 N.m Philips No 2 ||.
Toxic Heavy Metal FreeYes
UNSPSC39121529
UPC785901883289
UPC Code785901883289
Use WithIEC Style Relays
Voltage690V AC
Warranty18 months
Warranty DescriptionContractual Warranty:18.
WeeeThe product must be dis.
Weight0.2 lb
Width38 mm

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomTMELA1KN2212.91146SCHNEIDER ELECTRIC12.9 @ 1
thumbzoomkempstoncontrols.co.ukLA1-KN2212.9500865128Schneider12.9500865 @ 1
standardelectricsupply.com3663717.071In StockSchneider Electric17.07 @ 1
thumbzoomZoroG225498718.951189Schneider Electric0.118.95 @ 1
thumbzoommayerelectric.comSQDLA1KN2219.111In StockSCHNEIDER ELECTRIC0.09919.11 @ 1
us.rs-online.com7000753519.25140Schneider Electric0.219.25 @ 1
thumbzoomRadwellLA1-KN2220.012SCHNEIDER ELECTRIC TELEMECANIQUE20.0 @ 1
RS Delivers759-05520.0761253Schneider Electric20.076 @ 1
rspsupply.comSCHNEIDER LA1KN2220.981In StockSchneider Electric20.98 @ 1
Graybar9607398621.66081In StockSquare D (Schneider Electric)21.6608 @ 1
thumbzoomsustainablesupply.comC120872421.991In StockSchneider Electric0.121.99 @ 1
thumbzoomNewark96B017722.51112SCHNEIDER ELECTRIC22.51 @ 1
thumbzoomcrescentelectric.com16320523.32119Schneider Electric23.32 @ 1
grainger.caTLQLA1KN2224.343533241In StockSCHNEIDER ELECTRIC0.124.34353324 @ 1
thumbzoomblackhawksupply.comLA1KN2224.751In StockSquare D24.75 @ 1
thumbzoommidwestapplianceparts.comLA1KN22-SQ-P28.681In StockSquared28.68 @ 1
thumbzoomRaptor SuppliesAG7EJA32.5819261In StockSCHNEIDER ELECTRIC32.581926 @ 1
thumbzoomNational Supply Network4834309934.181In StockSchneider Electric34.18 @ 1
