Schneider LC1D093P7

Schneider LC1D093P7

mpn:
LC1D093P7
brand:
Schneider Electric
manufacturer:
Schneider Electric
MPN:
LC1D093P7
Description:
Non-Reversing Contactor, 230VAC, 9A, 3P, DIN Rail, TeSys Deca Series
Weight:
0.044
Weight:
0.044 LB
Preferred Price:
61.61
Price:
61.61
Min Simple Price:
33.67
Absolute Min Price:
47.81
Min Price:
47.81
Dimensions:
[4.0, 4.0, 2.0]
qty:
21
simpleSku:
jM2NTM:::LC1D093P7
sku:
jM2NTM::0Y:LC1D093P7@y0
condition:
11
seller:
TME
amzMan:
schneider
HazMat:
False
DropShip:
False

Attributes

Key ^Value
[Icw] Rated Short-Time Withstand Current105 A 40 ?C - 10 s power circuit || 210 A 40 ?C - 1 s power circuit || 30 A 40 ?C - 10 min power circuit || 61 A 40 ?C - 1 min power circuit || 100 A - 1 s signalling circuit || 120 A - 500 ms signalling circuit || 140 A - 100 ms signalling circuit
[Ith] Conventional Free Air Thermal Current10 A 60 ?C signalling circuit || 16 A 60 ?C power circuit
[Uc] Control Circuit Voltage, Coil Voltage230 V AC 50/60 Hz
[Ui] Rated Insulation Voltagepower circuit 690 V IEC 60947-4-1 || power circuit 600 V CSA || power circuit 600 V UL || signalling circuit 690 V IEC 60947-1 || signalling circuit 600 V CSA || signalling circuit 600 V UL
[Uimp] Rated Impulse Withstand Voltage6 kV IEC 60947
Ambient Air Temperature For Operation-40-60 ?C || 60-70 ?C with derating
Ambient Air Temperature For Storage-60-80 ?C
ApplicationMotor control;resistive load
Auxiliary Contact Composition1 NO + 1 NC
Auxiliary Contacts Typemechanically linked 1 NO + 1 NC IEC 60947-5-1 || mirror contact 1 NC IEC 60947-4-1
Average Impedance2.5 mOhm - Ith 16 A 50 Hz power circuit
Brand, ManufacturerSCHNEIDER ELECTRIC
California Proposition 65 : WARNING: This product can expose you to chemicals includingAntimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
Catalog NumberLC1D093P7
China Rohs RegulationPro-active China RoHS declaration (out of China RoHS legal scope)
Circularity ProfileENVEOLI1501004
Climatic WithstandIACS E10 || IEC 60947-1 Annex Q category D
Coil Power Rating7.5-7.5 VA 60 HZ 0.3 20 A Degrees C)-7-7 VA 50 HZ 0.3 20 A Degrees C)
Coil Technology, Special Featureswithout built-in suppressor module
ConnectionPower circuit spring terminals 1 2.5-2.5 mm? flexible without cable end;power circuit spring terminals 2 2.5-2.5 mm? flexible without cable end;control circuit spring terminals 1 2.5-2.5 mm? flexible without cable end;control circuit spring terminals 2 2.5-2.5 mm? flexible without cable end
Connections - Terminalspower circuit spring terminals 1 2.5-2.5 mm?flexible without cable end || power circuit spring terminals 2 2.5-2.5 mm?flexible without cable end || control circuit spring terminals 1 2.5-2.5 mm?flexible without cable end || control circuit spring terminals 2 2.5-2.5 mm?flexible without cable end
Contact Configuration1 NO + 1 NC;3 NO;Mechanically linked 1 NO + 1 NC IEC 60947-5-1;mirror contact 1 NC IEC 60947-4-1
Contact Current Rating9 A
Contact Rating10 A 60 A Degrees C SIGNALLING CIRCUIT-16 A 60 A Degrees C POWER CIRCUIT
Contactor Applicationmotor control || resistive load
Contactor seriesTeSys D
Contacts configurationNO x3
Control Circuit TypeAC 50/60 Hz
Control Circuit Voltage Limits0.3...0.6 Uc -40-70 ?C drop-out AC 50/60 Hz || 0.8...1.1 Uc -40-60 ?C operational AC 50 Hz || 0.85...1.1 Uc -40-60 ?C operational AC 60 Hz || 1...1.1 Uc 60-70 ?C operational AC 50/60 Hz
Control voltage230V AC
Control Voltage230 V
Country of OriginIndonesia
Depth86 mm
Device Short NameLC1D
Environmental DisclosureENVPEP1501004
Eu Rohs DirectiveCompliant
Family NameTeSys Family
Fire Resistance850 ?C IEC 60695-2-1
Heat Dissipation2-3 W 50/60 Hz
Height80mm, 80 mm
Hold-In Power Consumption In Va7.5-7.5 VA 60 Hz 0.3 20 ?C) || 7-7 VA 50 Hz 0.3 20 ?C)
Inrush Power In Va70-70 VA 60 Hz 0.75 20 ?C) || 70-70 VA 50 Hz 0.75 20 ?C)
Insulation Resistance> 10 MOhm signalling circuit
Integrated auxiliary contactsNC + NO
Ip Degree Of ProtectionIP20 front face IEC 60529
Irms Rated Making Capacity250 A 440 V power circuit IEC 60947 || 140 A AC signalling circuit IEC 60947-5-1 || 250 A DC signalling circuit IEC 60947-5-1
Item Type, Product Or Component Typecontactor
Leadsspring clamps
Made in USANo
Max. operating current9A
Maximum Horse Power Rating1 hp 230/240 V at AC 50/60 Hz for 1 phase || 2 hp 200/208 V at AC 50/60 Hz for 3 phase || 2 hp 230/240 V at AC 50/60 Hz for 3 phase || 5 hp 460/480 V at AC 50/60 Hz for 3 phase || 7.5 hp 575/600 V at AC 50/60 Hz for 3 phase || 0.33 hp 115 V at AC 50/60 Hz for 1 phase
Maximum Operating Rate3600 cyc/h 60 ?C
Mechanical Durability15 Mcycles
Mechanical Robustnessvibrations contactor open2 Gn, 5...300 Hz || vibrations contactor closed4 Gn, 5...300 Hz || shocks contactor open10 Gn for 11 ms || shocks contactor closed15 Gn for 11 ms
Mercury Free, Pvc Free, Reach Free Of Svhc, Rohs Exemption Information, Toxic Heavy Metal FreeYes
Minimum Switching Current5 mA signalling circuit
Minimum Switching Voltage17 V signalling circuit
Motor Power Kw2.2 kW 220...230 V AC 50/60 Hz AC-3) || 4 kW 380...400 V AC 50/60 Hz AC-3) || 4 kW 415...440 V AC 50/60 Hz AC-3) || 5.5 kW 500 V AC 50/60 Hz AC-3) || 5.5 kW 660...690 V AC 50/60 Hz AC-3) || 2.2 kW 400 V AC 50/60 Hz AC-4) || 2.2 kW 220...230 V AC 50/60 Hz AC-3e) || 4 kW 380...400 V AC 50/60 Hz AC-3e) || 4 kW 415...440 V AC 50/60 Hz AC-3e) || 5.5 kW 500 V AC 50/60 Hz AC-3e) || 5.5 kW 660...690 V AC 50/60 Hz AC-3e)
MountingDIN,, Rail Plate
Mounting Supportrail || plate
Mounting TypeDIN Rail Mount
Net Weight0.32 kg
Non-Overlap Time1.5 ms on de-energisation between NC and NO contact || 1.5 ms on energisation between NC and NO contact
Number of Poles, Pollution Degree3
Operating Altitude0...9842.52 ft (0...3000 m)
Operating Cycles, Signalling Circuit Frequency25...400 Hz
Operating Temperature-40-70 A Degrees C AT UC,-5-60 A Degrees C
Operating Time12...22 ms closing || 4...19 ms opening
Overvoltage CategoryIII
Pole Contact Composition3 NO
Poles Description3P
Power Dissipation Per Pole1.56 W AC-1 || 0.2 W AC-3 || 0.2 W AC-3e
Product CertificationsUL || BV || RINA || GOST || CCC || LROS (Lloyds register of shipping) || DNV || GL || CSA || UKCA
Product NameTeSys D || TeSys Deca
Protective Coverwith
Protective TreatmentTH IEC 60068-2-30
RangeTeSys || TeSys Deca
Rated Breaking Capacity250 A 440 V power circuit IEC 60947
Reach RegulationFree of Substances of Very High Concern above the threshold
Safety Reliability LevelB10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1 || B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1
SeriesTeSys Deca Series
Size45 MM,80 MM,86 MM
StandardUL;BV;RINA;GOST;CCC;LROS (Lloyds register of shipping);DNV;GL;CSA;UKCA;CSA C22.2 No 14;EN 60947-4-1;EN 60947-5-1;IEC 60947-4-1;IEC 60947-5-1;UL 508;IEC 60335-1
StandardsCSA C22.2 No 14 || EN 60947-4-1 || EN 60947-5-1 || IEC 60947-4-1 || IEC 60947-5-1 || UL 508 || IEC 60335-1
Sub BrandTeSys D;TeSys Deca
Sustainable Offer StatusGreen Premium product
Switching capacity4kW
TypeIEC Contactor
Type of contactor3-pole
UPC Code3389110802351
Utilisation CategoryAC-3 || AC-1 || AC-4 || AC-3e
Warranty18 months
Warranty DescriptionContractual Warranty:18 months
Wattage1.56 W AC-1-0.2 W AC-3
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Width45mm, 45 mm

All Prices

ImgSellerSupplier SKURequested Price ^Calc MOQ PriceMOQIn StockLead TimeBrandWeightPreferred Tier
thumbzoomTMELC1D093P733.6733.67116SCHNEIDER ELECTRIC33.67 @ Qty: 1+
thumbzoomkempstoncontrols.co.ukLC1D093P755.990408555.99040851In StockSchneider55.9904085 @ Qty: 1+
Newark85W310796.0296.021In StockSCHNEIDER ELECTRIC96.02 @ Qty: 1+
thumbzoomgordonelectricsupply.comLC1D093P797.0997.091In Stock10SQUARE D97.09 @ Qty: 1+
us.rs-online.com70405510107.89107.8911Schneider Electric107.89 @ Qty: 1+
thumbzoommayerelectric.comSQDLC1D093P7126.47126.471In StockSCHNEIDER ELECTRIC0.704126.47 @ Qty: 1+
thumbzoomcrescentelectric.com969719168.22168.221In StockSchneider Electric168.22 @ Qty: 1+
B014U9C00Y
Schneider LC1D093P7

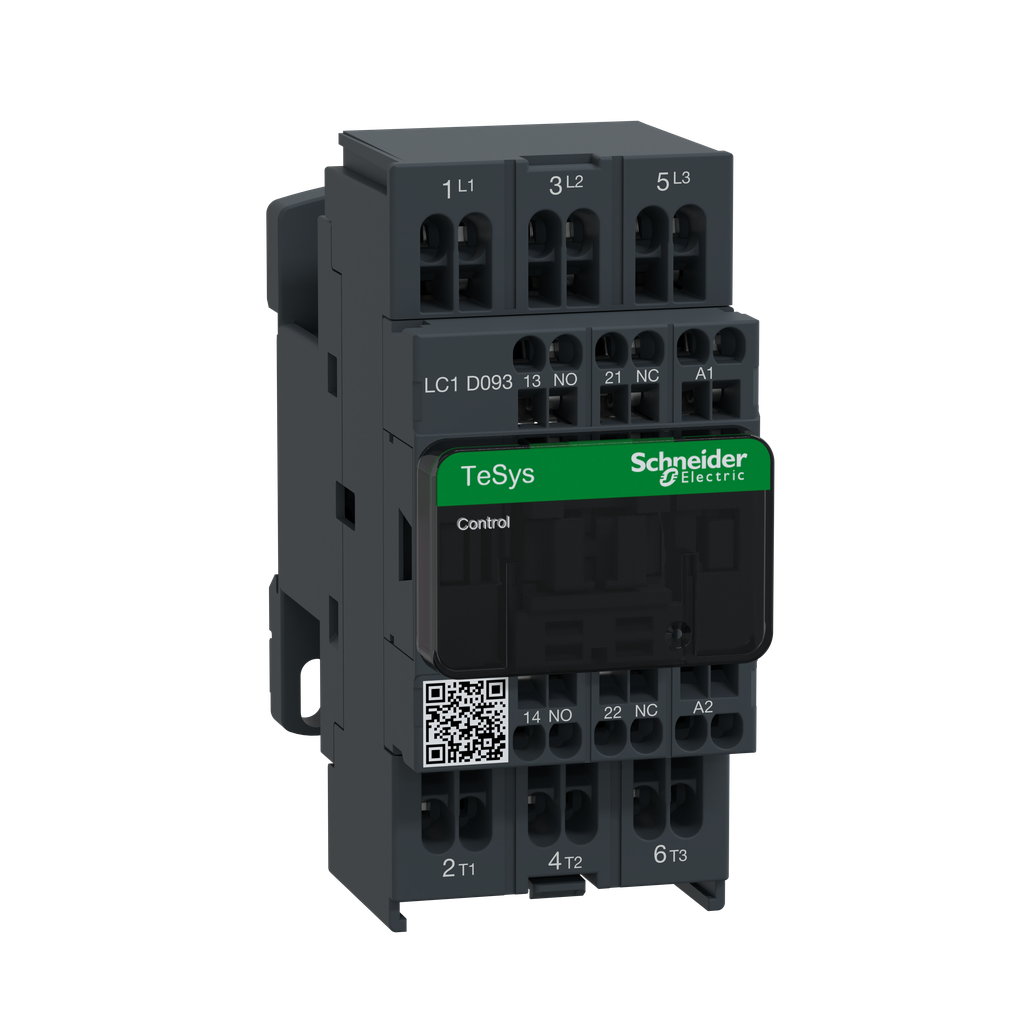

Schneider Electric LC1D093P7 , Contactor, Non-Reversing, 230VAC Coil, 9A, 3-Pole, DIN Rail, TeSys D

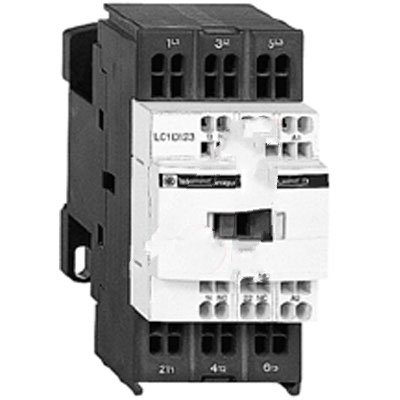

Schneider Electric LC1D093P7 , Contactor, Non-Reversing, 230VAC Coil, 9A, 3-Pole, DIN Rail, TeSys Dzoom
