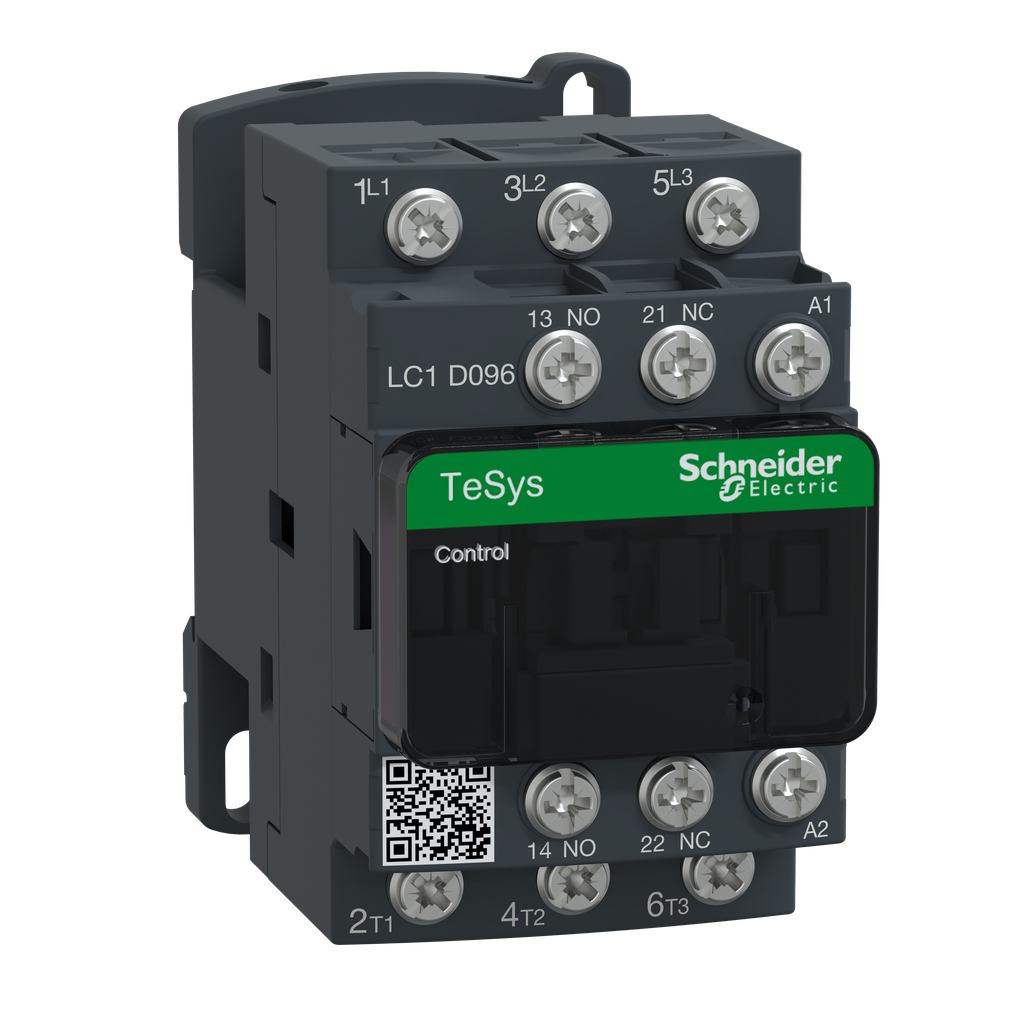

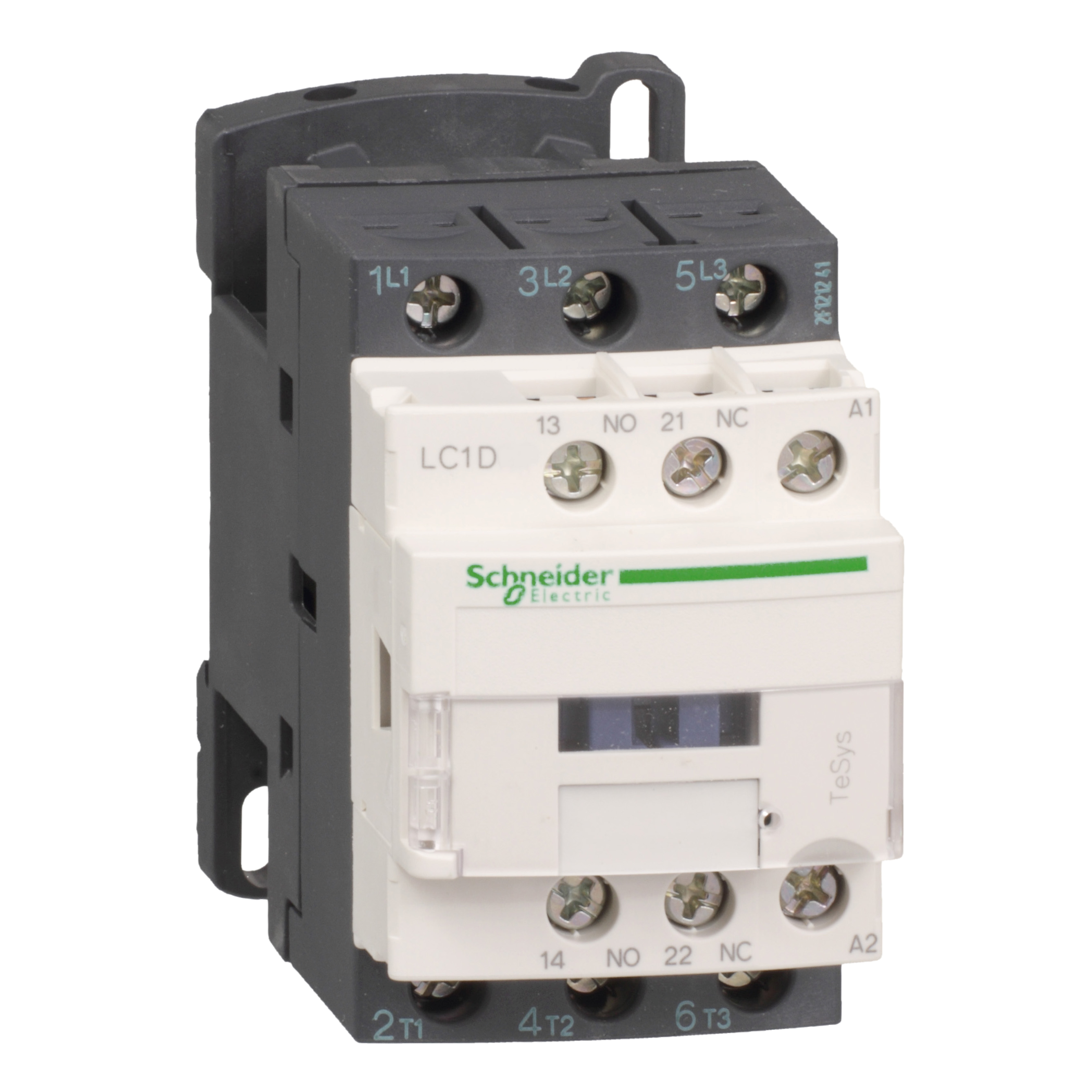

Schneider LC1D096M7 Contactor Non-Reversing 220VAC Coil 9A 3-Pole DIN Rail TeSys D

Schneider LC1D096M7 Contactor Non-Reversing 220VAC Coil 9A 3-Pole DIN Rail TeSys Dzoom

Attributes

Key Value
3-Phase HP Rating (Max.)7-1/2 hp
[Ith] Conventional Free.25 A 60 ?C power circui.
[Ui] Rated Insulation V.power circuit 690 V IEC.
[Uimp] Rated Impulse Wi.6 kV IEC 60947
Ambient Air Temperature.-60-80 ?C
ApprovalsCCC, CSA, UL
Auxiliary Contact Compo.1 NO + 1 NC
Auxiliary Contacts1NO, 1NC
Auxiliary Contacts Typemechanically linked 1 N.
Average Impedance2.5 mOhm - Ith 25 A 50 .
California Proposition .Antimony oxide & Antimo.
China Rohs RegulationPro-active China RoHS d.
Circularity ProfileENVEOLI1501004
Climatic WithstandIACS E10 || IEC 60947-1.
Coil Technologywithout built-in suppre.
Coil Voltage220 Vac
Compatibility CodeLC1D
Contact CompatibilityM2
Contact Current Rating9 A
Contact Operation3NO
Contactor Applicationresistive load || motor.
Contactor TypeNon-Reversing
Control Circuit TypeAC 50/60 Hz
Control Circuit Voltage.0.3...0.6 Uc -40-70 ?C .
Control Voltage220 V
Country of OriginID - Indonesia
Depth86 mm, 0.079 in
Device Short NameLC1D
Dimensions77 x 45 x 86 mm
ECCNEAR99
Enclosure TypeIP2x
Environmental DisclosureENVPEP1501004
Eu Rohs DirectiveCompliant
Family SeriesSquare D Contactors, Te.
Fire Resistance850 ?C IEC 60695-2-1
General Purpose (AC1)9 A
Gross Weight0 lbs
Height77 mm
Hold-In Power Consumpti.7.5-7.5 VA 60 Hz 0.3 20.
Horsepower Rating8 HP
Inrush Power In Va70-70 VA 60 Hz 0.75 20 .
Insulation Resistance> 10 MOhm signalling ci.
Irms Rated Making Capac.250 A 440 V power circu.
Item NumberLC1D096M7
Length3.031 in
ManufacturerSquare D
Manufacturer Part NumberLC1D096M7
Max HP 115V 1PH0.33 hp
Max HP 200/208V 3PH2 hp
Max HP 230/240V 1PH1 hp
Max HP 230/240V 3PH2 hp
Max HP 460/480V 3PH5 hp
Max HP 575/600V 3PH7.5 hp
Max. Inductive Amps (AC.9A
Max. Resistive Amps (AC.20A
Maximum Horse Power Rat.1 hp 230/240 V at AC 50.
Maximum Operating Rate3600 cyc/h 60 ?C
Maximum Operating Tempe.60 C
Mechanical Durability15 Mcycles
Mechanical Robustnessvibrations contactor op.
Mercury FreeYes
Minimum Operating Tempe.-5 C
Minimum Switching Curre.5 mA signalling circuit
Minimum Switching Volta.17 V signalling circuit
Motor Power Kw2.2 kW 220...230 V AC 5.
Mounting Supportplate || rail
Mounting TypeDIN Rail Mount ; Panel .
Net Weight0.32 kg, 0.71 lbs
Nominal Coil Voltage240 VAC
Non-Overlap Time1.5 ms on de-energisati.
Number of Poles3
Operating Altitude0...9842.52 ft (0...300.
Overvoltage CategoryIII
Pole Contact Composition3 NO
Poles3NO
Poles Description3P
Power Dissipation Per P.1.56 W AC-1 || 0.2 W AC.
Power Rating5.5 kW
Primary TypeContactor
Product CertificationsDNV || UL || CSA || BV .
Product Or Component Ty.Contactor
Product SeriesTeSys
Protective Coverwith
Pvc FreeYes
RangeTeSys || TeSys Deca
Range Of ProductTeSys D || TeSys Deca
Rated Breaking Capacity250 A 440 V power circu.
Reach Free Of SvhcYes
Reach RegulationFree of Substances of V.
Rohs Exemption Informat.Yes
Safety Reliability LevelB10d = 1369863 cycles c.
SeriesTeSys D, TeSys Deca Ser.
Single-Phase HP Rating .1 hp
Size77 H x 45 W x 86 Dia. mm
StandardsCCC ; CSA ; DNV ; EN 60.
Sustainable Offer StatusGreen Premium product
Temperature Operating R.-5 to 60 C
Terminal TypeBox Clamp
TerminationScrew
Tightening Torquecontrol circuit 1.7 N.m.
Toxic Heavy Metal FreeYes
TypeIEC Contactor
UL Motor Switching (AC3)25 A
UNSPSC39121529
UPC Code785901506157
Utilisation CategoryAC-3 || AC-4 || AC-1 ||.
Voltage Rating690 ; 300 V
Warranty18 months
WeeeThe product must be dis.
Width0 in, 45 mm
