Schneider Electric LC1D18F7TQ

B00CONPBLY

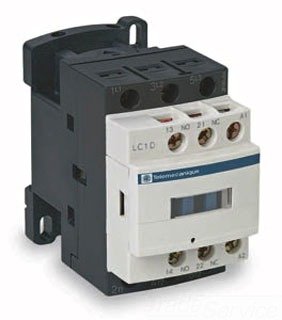

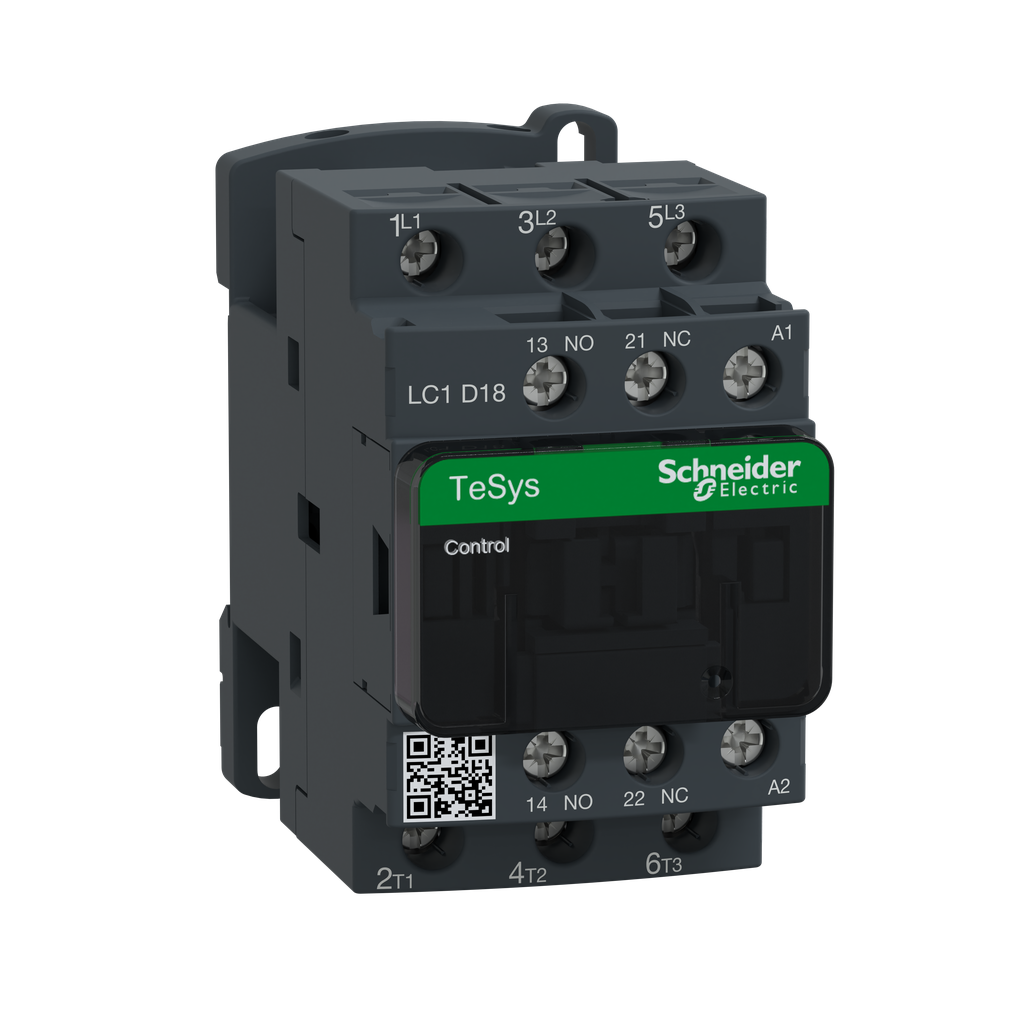

SCHNEIDER ELECTRIC Contactor 575-Vac 18Amp Iec Plus Options LC1D18F7TQ Busway End Closure

SCHNEIDER ELECTRIC Contactor 575-Vac 18Amp Iec Plus Options LC1D18F7TQ Busway End Closurezoom

Attributes

Key Value
[Ith] Conventional Free.10 A 60 ?C control circ.
[Uc] Control Circuit Vo.110 V AC 50/60 Hz
[Ui] Rated Insulation V.control circuit 600 V C.
[Uimp] Rated Impulse Wi.6 kV IEC 60947
Ambient Air Temperature.-60-80 ?C
ApplicationResistive load;motor co.
Auxiliary Contact Compo.1 NO + 1 NC
Average Impedance2.5 mOhm - Ith 32 A 50 .
BrandSchneider Electric
California Proposition .Antimony oxide & Antimo.
Catalog NumberLC1D18F7TQ
China Rohs RegulationPro-active China RoHS d.
Circularity ProfileENVEOLI1501004
Climatic WithstandIACS E10 || IEC 60947-1.
Coil Power Rating7-7 VA 50/60 HZ 0.3 20 .
Coil Technologywithout built-in bidire.
Coil Voltage110 V AC 50/60 Hz
Coil Volts575VAC
Compatibility CodeLC1D
ConnectionControl circuit screw c.
Contact Configuration1 NO + 1 NC;3 NO
Contact Rating10 A 60 A Degrees C CON.
Contactor Applicationresistive load || motor.
Control Circuit TypeAC 50/60 Hz
Country of OriginFrance
Country of Origin (subj.Unknown
Depth86 mm
Device Short NameLC1D
Environmental DisclosureENVPEP1501004
Eu Rohs DirectiveCompliant
Fire Resistance850 ?C IEC 60695-2-1
Full Load Amps-Inductive18
Heat Dissipation2-3 W 50/60 Hz control .
Height77 mm
Hold-In Power Consumpti.7-7 VA 50/60 Hz 0.3 20 .
Inrush Power In Va70-70 VA 0.75 20 ?C)
Insulation Resistance> 10 MOhm control circu.
Ip Degree Of ProtectionIP2x IEC 60529 || IP2x .
Irms Rated Making Capac.140 A AC control circui.
ItemIEC Magnetic Contactor
Item Typecontactor
Made in USANo
ManufacturerSchneider Electric
Maximum Operating Rate3600 cyc/h 60 ?C
Mechanical Durability15000000 cycles
Mercury FreeYes
Minimum Switching Curre.5 mA control circuit
Minimum Switching Volta.17 V control circuit
Motor Power Kw10 kW 500 V AC 50/60 Hz.
MountingRail Plate
Mounting Supportrail || plate
Net Weight3.3 kg
Non-Overlap Time1.5 ms on de-energisati.
Operating Altitude9842.52 ft (3000 m) wit.
Operating Cycles3600 CYC/H 60 A Degrees.
Operating Temperature-40-70 A Degrees C AT U.
Operating Time4...19 ms opening || 12.
Overvoltage CategoryIII
Permissible Ambient Air.-40-70 ?C at Uc
Pole Contact Composition3 NO
Poles Description3P
Power Dissipation Per P.0.8 W AC-3 || 2.5 W AC-.
Product CertificationsCCC || GOST || GL || UL.
Product Or Component Ty.contactor
Protective Coverwith
Pvc FreeYes
Quantity Per Setset of 10
RangeTeSys || TeSys Deca
Range Of ProductTeSys D || TeSys Deca
Rated Breaking Capacity300 kA 440 V power circ.
Reach Free Of SvhcYes
Reach RegulationFree of Substances of V.
Rohs Exemption Informat.Yes
Safety Reliability LevelB10d = 1369863 cycles c.
Size3.39
Special Featureswithout built-in bidire.
Standard850 A Degrees C IEC 606.
StandardsEN/IEC 60947-4-1 || CSA.
Sub BrandTESYS,TESYS D
Sustainable Offer StatusGreen Premium product
Tightening Torquecontrol circuit 1.7 N.m.
Toxic Heavy Metal FreeYes
UPC785901213222
Utilisation CategoryAC-1 || AC-3 || AC-3e
Warranty18 months
Warranty DescriptionContractual Warranty:18.
Wattage0.8 W AC-3-2.5 W AC-1
WeeeThe product must be dis.
Width45 mm

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomRadwellLC1D18F7TQ126.3924In StockSCHNEIDER ELECTRIC1.0126.39 @ 24
Newark79C9558145.8724In StockSCHNEIDER ELECTRIC145.87 @ 10
thumbzoommayerelectric.comSQDLC1D18F7TQ182.991In StockSCHNEIDER ELECTRIC7.26182.99 @ 1
thumbzoomcrescentelectric.com1294544243.391In StockSchneider Electric243.39 @ 1
thumbzoomZoroG08486113047.0424In Stock16Schneider Electric3047.04 @ 24
thumbzoomgordonelectricsupply.comLC1D18F7TQ4034.161In Stock10SQUARE D4034.16 @ 1
