Schneider Electric LC1D18G7TQ

B00CONPJDY

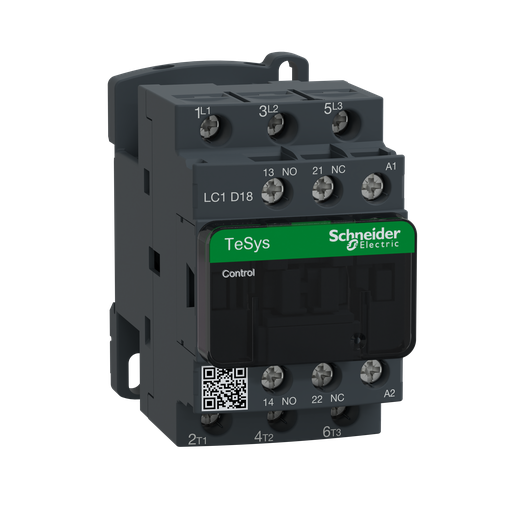

SCHNEIDER ELECTRIC Contactor 575-Vac 18Amp Iec Plus Options LC1D18G7TQ Busway End Closure

SCHNEIDER ELECTRIC Contactor 575-Vac 18Amp Iec Plus Options LC1D18G7TQ Busway End Closurezoom

Attributes

Key Value
[Ith] Conventional Free.10 A 60 ?C signalling c.
[Ui] Rated Insulation V.power circuit 690 V IEC.
[Uimp] Rated Impulse Wi.6 kV IEC 60947
Ambient Air Temperature.-60-80 ?C
Auxiliary Contact Compo.1 NO + 1 NC
Auxiliary Contacts Typemechanically linked 1 N.
Average Impedance2.5 mOhm - Ith 32 A 50 .
California Proposition .Antimony oxide & Antimo.
China Rohs RegulationPro-active China RoHS d.
Circularity ProfileENVEOLI1501004
Climatic WithstandIACS E10 || IEC 60947-1.
Coil Technologywithout built-in suppre.
Compatibility CodeLC1D
Contact CompatibilityM2
Contactor Applicationmotor control || resist.
Control Circuit TypeAC 50/60 Hz
Control Circuit Voltage.0.3...0.6 Uc -40-70 ?C .
Depth86 mm
Device Short NameLC1D
Environmental DisclosureENVPEP1501004
Eu Rohs DirectiveCompliant
Fire Resistance850 ?C IEC 60695-2-1
Height77 mm
Insulation Resistance> 10 MOhm signalling ci.
Irms Rated Making Capac.140 A AC signalling cir.
Maximum Horse Power Rat.3 hp 230/240 V at AC 50.
Maximum Operating Rate3600 cyc/h 60 ?C
Mechanical Robustnessvibrations contactor op.
Mercury FreeYes
Minimum Switching Curre.5 mA signalling circuit
Minimum Switching Volta.17 V signalling circuit
Motor Power Kw4 kW 220...230 V AC 50/.
Mounting Supportrail || plate
Net Weight0.33 kg
Non-Overlap Time1.5 ms on de-energisati.
Operating Altitude0...9842.52 ft (0...300.
Operating Time4...19 ms opening || 12.
Overvoltage CategoryIII
Pole Contact Composition3 NO
Poles Description3P
Power Dissipation Per P.2.5 W AC-1 || 0.8 W AC-.
Product Or Component Ty.contactor
Protective Coverwith
Pvc FreeYes
RangeTeSys || TeSys Deca
Range Of ProductTeSys D || TeSys Deca
Rated Breaking Capacity300 A 440 V power circu.
Reach Free Of SvhcYes
Reach RegulationFree of Substances of V.
Rohs Exemption Informat.Yes
Safety Reliability LevelB10d = 1369863 cycles c.
Sustainable Offer StatusGreen Premium product
Tightening Torquecontrol circuit 1.7 N.m.
Toxic Heavy Metal FreeYes
Utilisation CategoryAC-1 || AC-3 || AC-3e
Warranty18 months
WeeeThe product must be dis.
Width45 mm

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
us.rs-online.com72552283131.0424In StockSchneider Electric131.04 @ 24
Newark79C9559145.8724In StockSCHNEIDER ELECTRIC145.87 @ 10
thumbzoomRadwellLC1D18G7TQ160.024In StockSCHNEIDER ELECTRIC SQUARE D160.0 @ 24
thumbzoommayerelectric.comSQDLC1D18G7TQ168.711In StockSQUARE D0.726168.71 @ 1
thumbzoomgordonelectricsupply.comLC1D18G7TQ3362.161In Stock10SQUARE D3362.16 @ 1
