Schneider Electric LC1D323BL

B00CONH4RI

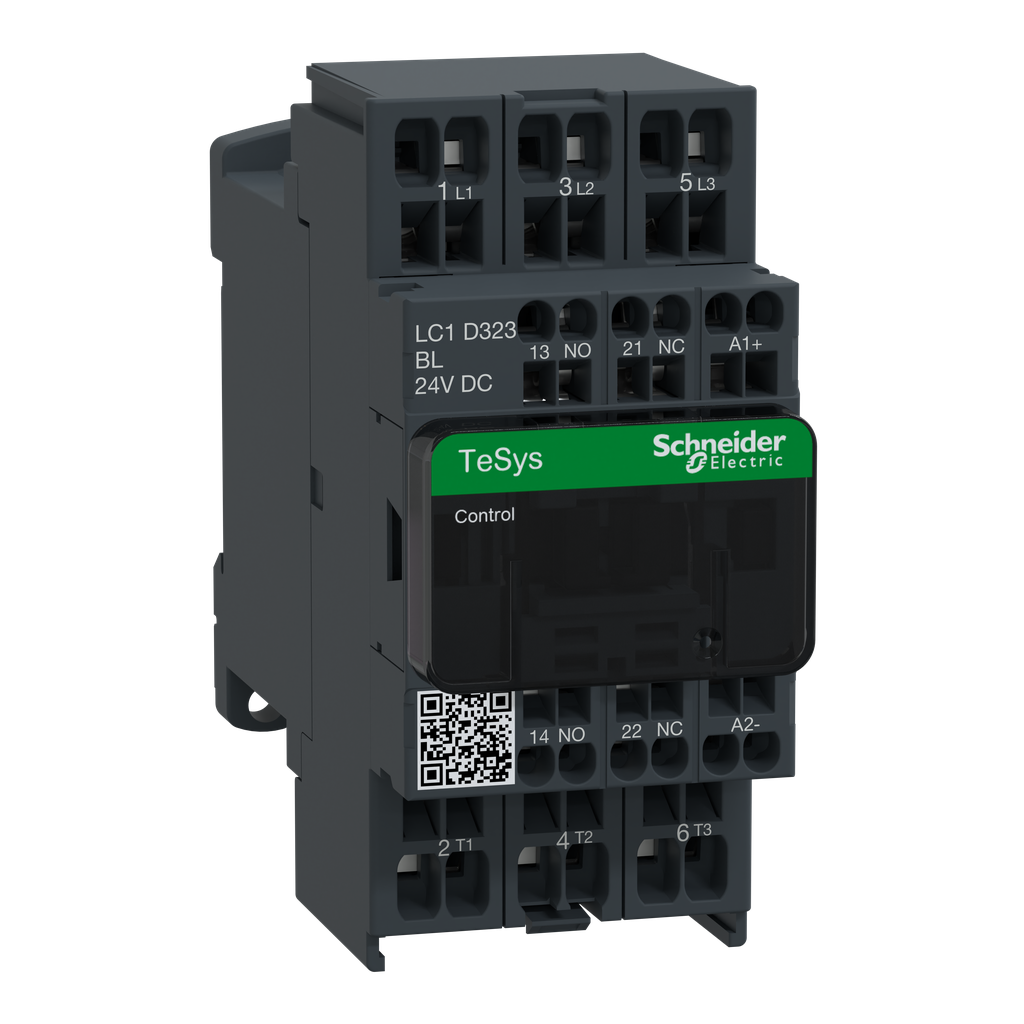

SCHNEIDER ELECTRIC Contactor 600-Vac 32-Amp Iec Plus Options LC1D323BL Busway Flanged End

SCHNEIDER ELECTRIC Contactor 600-Vac 32-Amp Iec Plus Options LC1D323BL Busway Flanged Endzoom

Attributes

Key Value
[Icw] Rated Short-Time .260 A 40 ?C - 10 s powe.
[Ith] Conventional Free.10 A 60 ?C signalling c.
[Uc] Control Circuit Vo.24 V DC
[Ui] Rated Insulation V.power circuit 690 V IEC.
[Uimp] Rated Impulse Wi.6 kV IEC 60947
Ambient Air Temperature.-40-60 ?C || 60-70 ?C w.
Ambient Air Temperature.-60-80 ?C
ApplicationMotor control;resistive.
ApprovalsCCC, CSA, UL
Auxiliary Contact Compo.1 NO + 1 NC
Auxiliary Contacts1NO, 1NC
Auxiliary Contacts Typemechanically linked 1 N.
Average Impedance2 mOhm - Ith 50 A 50 Hz.
BrandSchneider Electric
California Proposition .Antimony oxide & Antimo.
Catalog NumberLC1D323BL
China Rohs RegulationPro-active China RoHS d.
Circularity ProfileENVEOLI1102029EN
Climatic WithstandIACS E10 || IEC 60947-1.
Coil Power Rating30 hp at 575/600 VAC, 2.
Coil Technologybuilt-in bidirectional .
Coil Voltage24 V DC, 24 VDC, 24, 24.
ConnectionControl circuit spring .
Connections - Terminalscontrol circuit spring .
Contact Configuration3NO, 3 NO, 1 NO + 1 NC;.
Contact Current Rating32 A
Contact Rating10 A 60 A Degrees C SIG.
Contactor Applicationmotor control || resist.
Control Circuit TypeDC low consumption
Control Circuit Voltage.0.1...0.3 Uc -40-70 ?C .
Control Voltage24 V
Country of OriginIndonesia
Depth101 mm
Device Short NameLC1D
Dimensions99 mm H x 45 mm W x 101.
Enclosure TypeOpen
Environmental DisclosureENVPEP110229EN
Eu Rohs DirectiveCompliant
Family SeriesSquare D Contactors, Te.
Fire Resistance850 ?C IEC 60695-2-1
Frequency Rating25 to 400, 25 to 400 Hz
General Purpose (AC1)50 A
Gross Weight0 lbs
GTIN00785901815839, 0338911.
Height99 mm
Hold-In Power Consumpti.2.4-2.4 W 20 ?C
Inrush Power In W2.4-2.4 W 20 ?C)
Insulation Resistance> 10 MOhm signalling ci.
Ip Degree Of ProtectionIP20 front face IEC 605.
Irms Rated Making Capac.140 A AC signalling cir.
Item NumberLC1D323BL
Item Typecontactor
Made in USANo
ManufacturerSquare D, Schneider Ele.
Manufacturer Part Number535207
Max HP 115V 1PH2 hp
Max HP 200/208V 3PH7.5 hp
Max HP 230/240V 1PH5 hp
Max HP 230/240V 3PH10 hp
Max HP 460/480V 3PH20 hp
Max HP 575/600V 3PH30 hp
Maximum Horse Power Rat.2 hp 115 V at AC 50/60 .
Maximum Operating Rate3600 cyc/h 60 ?C
Mechanical Durability30 Mcycles
Mechanical Robustnessvibrations contactor op.
Mercury FreeYes
Minimum Switching Curre.5 mA signalling circuit
Minimum Switching Volta.17 V signalling circuit
Motor Power Kw7.5 kW 220...230 V AC 5.
MountingRail Plate
Mounting Supportplate || rail
Mounting typePlate/Rail
Mounting TypePanel Mount
Net Weight0.535 kg, 1.18 lbs
Nominal Coil Voltage24 VDC
Non-Overlap Time1.5 ms on de-energisati.
Number of Auxiliary Con.1NO-1NC
Number of Poles3
Operating Altitude0...9842.52 ft (0...300.
Operating Cycles25...400 Hz, 3600, 3600.
Operating Temperature-5 to 60, -5 to 60 deg .
Operating Time65.45...88.55 ms closin.
Overvoltage CategoryIII
Pole Contact Composition3 NO
Poles3NO
Poles Description3P
Pollution Degree3
Power Dissipation Per P.2 W AC-3 || 5 W AC-1 ||.
Product CertificationsCSA || LROS (Lloyds reg.
Product NameTeSys D || TeSys Deca
Product Or Component Ty.contactor
Product SeriesTeSys
Protective Coverwith
Protective TreatmentTH IEC 60068-2-30
Pvc FreeYes
RangeTeSys || TeSys Deca
Rated Breaking Capacity550 A 440 V power circu.
Reach Free Of SvhcYes
Reach RegulationFree of Substances of V.
Rohs Exemption Informat.Yes
Safety Reliability LevelB10d = 1369863 cycles c.
SeriesTeSys? D LC1D, TeSys De.
Signalling Circuit Freq.25...400 Hz
Size101 MM,45 MM,99 MM
Special Featuresbuilt-in bidirectional .
StandardCSA;LROS (Lloyds regist.
StandardsCSA C22.2 No 14 || EN 6.
Sub BrandTeSys D;TeSys Deca
Sustainable Offer StatusGreen Premium product
Terminal TypeSpring
TerminationSpring Cage
Tightening Torquecontrol circuit 1.7 N.m.
Time Constant40 ms
Toxic Heavy Metal FreeYes
TypeNon-Reversing, IEC Cont.
UL Motor Switching (AC3)32 A
UPC785901815839
Utilisation CategoryAC-1 || AC-4 || AC-3 ||.
Warranty18 months
Warranty DescriptionContractual Warranty:18.
Wattage2 W AC-3-5 W AC-1
WeeeThe product must be dis.
Width45 mm
